| Model: | AT-101 |
|---|---|
| Brand: | XUXIN |
| Origin: | Made In China |
| Category: | Industrial Supplies / Electrical & Electronic Product Equipment |
| Label: | Taping machine , Automatic taping , wire taping machine |
| Price: |
¥620
/ pc
|
| Min. Order: | 1 pc |
| Last Online:11 Apr, 2025 |

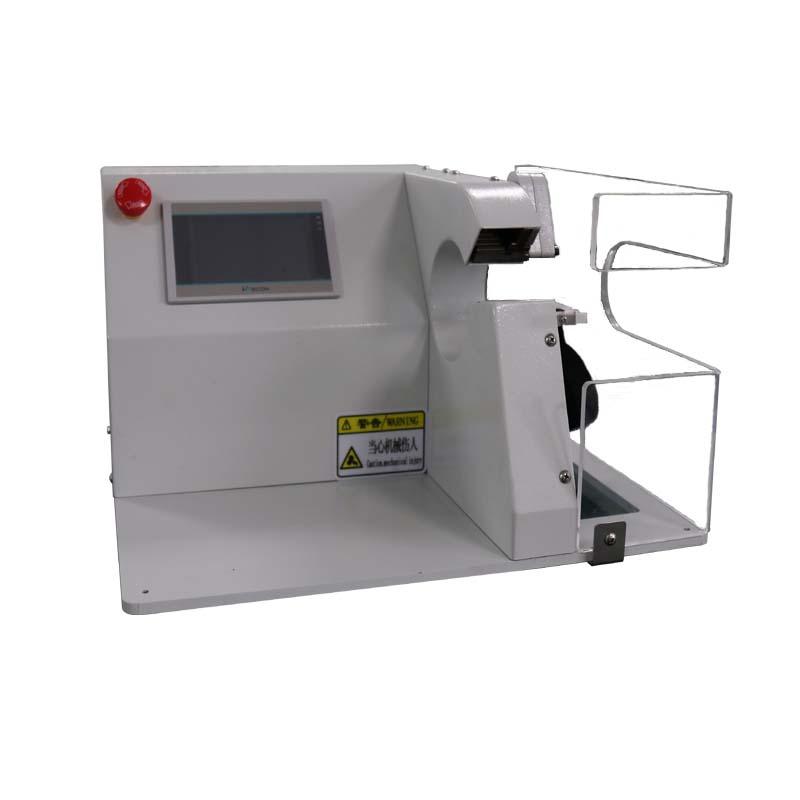

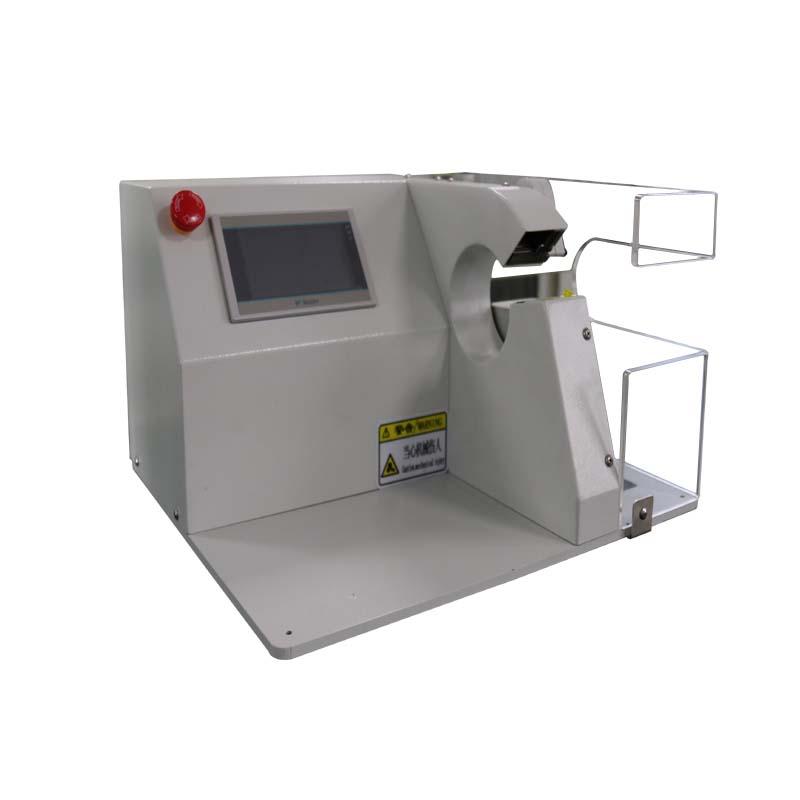

Automatic wire wrapping machine
Parameter:
Model: AT-101
Size: 430*380*260mm
Operation mode: touch screen
Winding method: spiral winding
Applicable wire diameter: Ф3mm-25mm
Main engine speed (rev/min): 200-1400 rpm adjustable
Applicable tape: PVC, vinyl, cloth, felt, tape, etc.
Outer diameter of tape: up to 110mm
Tape width: 9-30mm
Inner hole size of the tape: Ф38 (option: Ф32) inform in advance
Winding length: unlimited
Voltage: 220v/110v optional
Net weight: 27KG

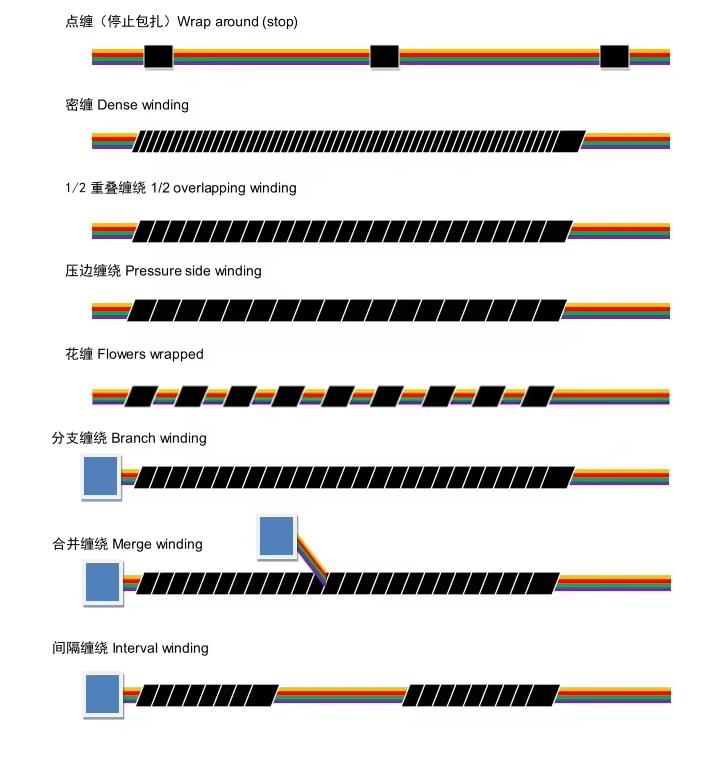

The function include:
Full-wrapped: the tape overlaps the entire wire bundle, and the overlapped tape area is manually adjusted
Point winding: The tape is wound around one point of the wire
harness according to the number of turns. The number of
winding turns can be set to one turn, two turns or more.
| Payment Terms: | 100% TT, paypal, Trade Assurance in advance |
|---|---|
| Packing: | paper carton/ wooden carton |
| Lead Time: | within 3 to 7 days after payment received. |
