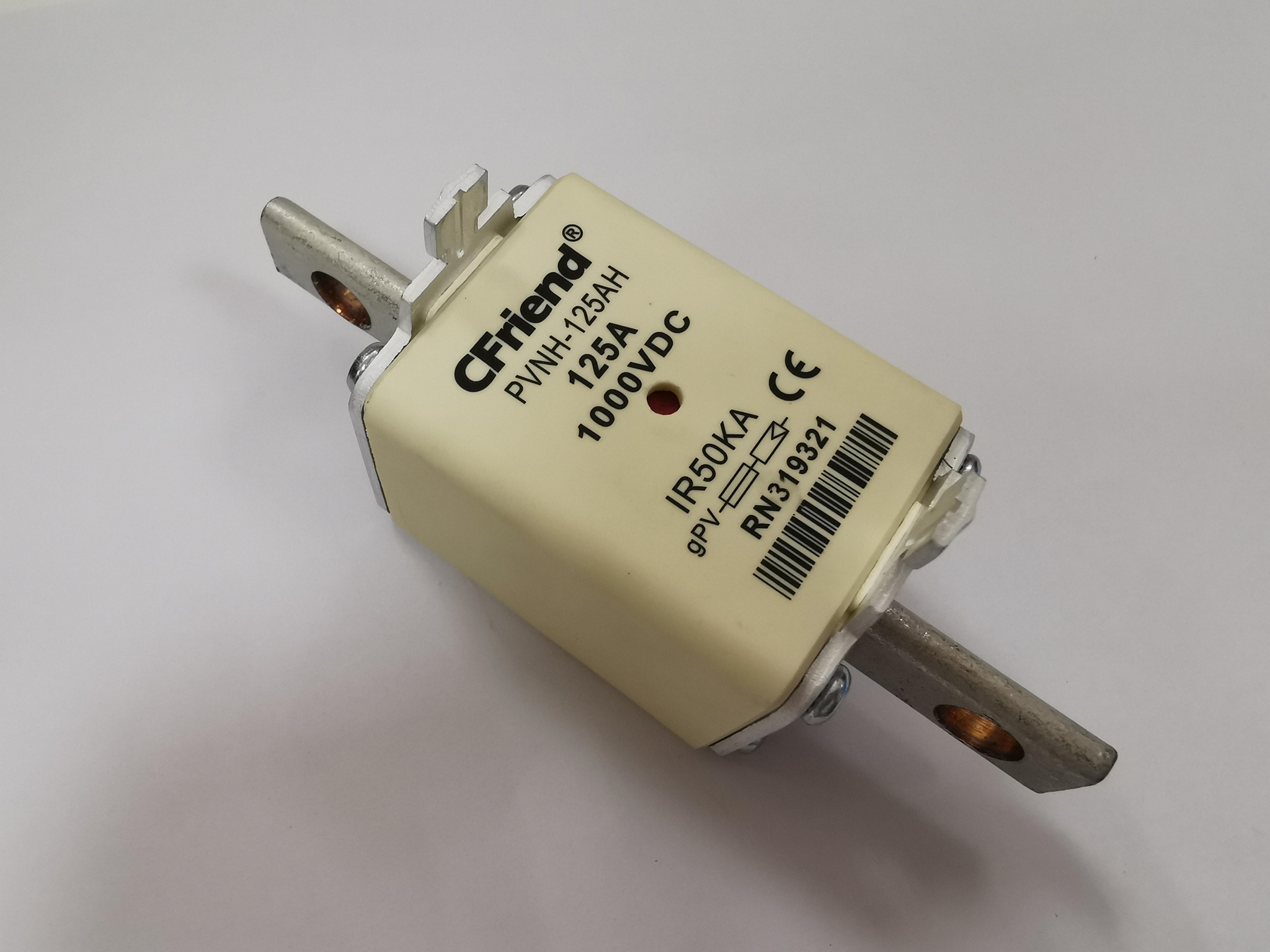

| Model: | PVNH-125A |
|---|---|
| Brand: | CFriend |
| Origin: | - |
| Category: | Metallurgy , Mining & Energy / New Energy / Solar Energy |
| Label: | PV SOLAR FUSE , ENERGY FUSE , PV FUSE |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:27 Mar, 2025 |
For the protection and isolation of photovoltaic battery modules or arrays for new energy photovoltaic system, the photovoltaic isolated secondary junction box, the isolation switch, DC distribution cabinet, DC side of the photovoltaic inverter, DC SPD protection and other suitable circuit system protection. This fuse series has features of high rated current, low power consumption, high breaking capacity, etc. This fuse series also has superior resistance to high altitude environment, excellent fusing characteristic and durability.
Rated voltage: 1000Vdc
Rated current: 32-400A
The first ceramic dual display desian in the photovoltalc field in China. with two options of plua-in and bolt,can meet different instalation requirements.
The anti slip screw and embossed aluminum cover plate design make the overall structure safer.
the precious calculation of the melt and repeated tests demonstrate excellent performance and ultra low-power consumption wth pure copper contacts.
1.Compliant with standard:lEC60269-6 GB/T13539-6 UL2579
2.Rated voltage.1000Vdc 50kA
3.Rated current: 32-400A
4.Time constant: 1-3ms
5.Select base:SN11SPV(RN219399)
SN21SPV(RN219429)
SN31SPV(RN219459)
