Ⅰ.Product Overview

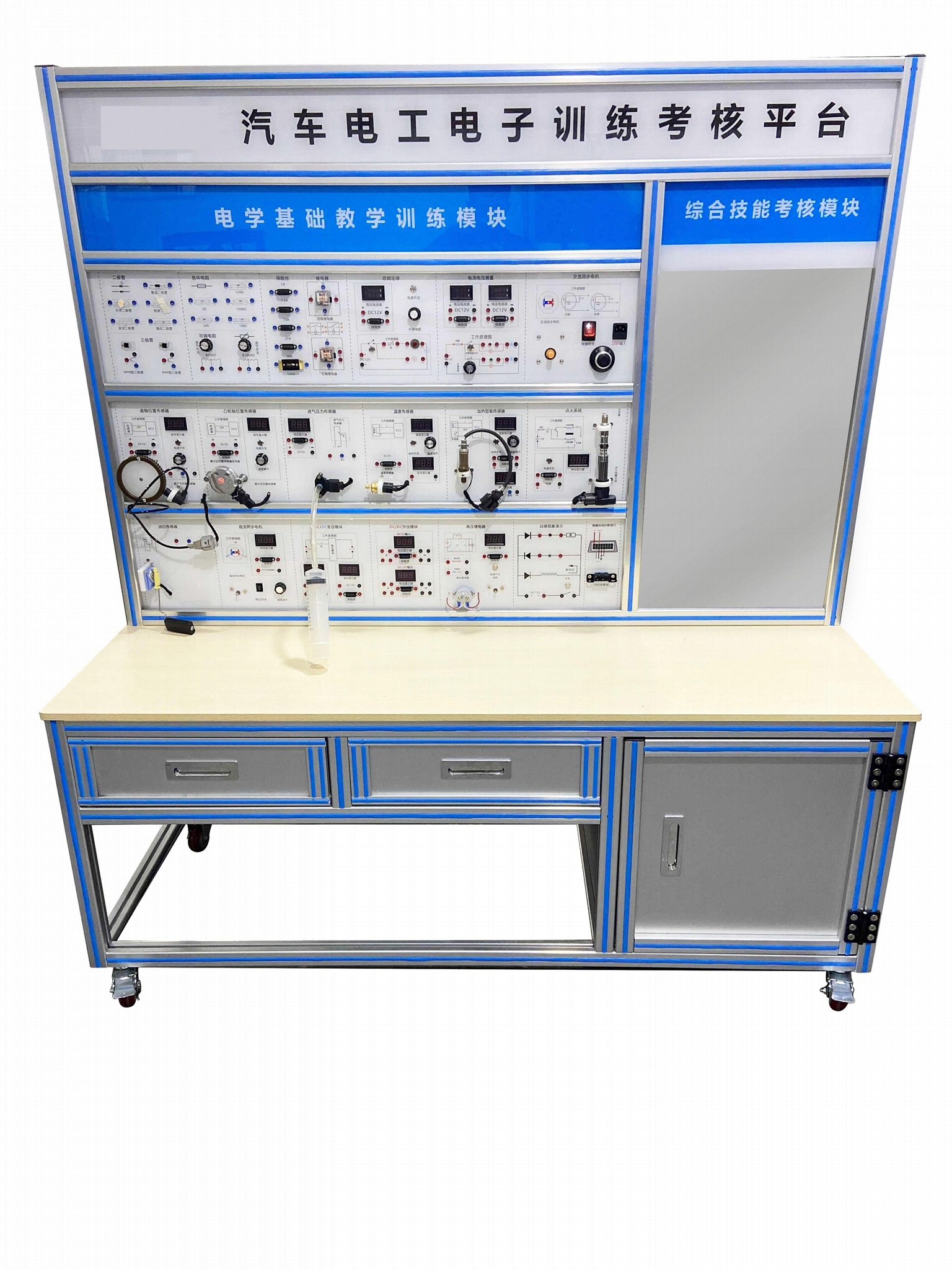

The new energy vehicle electrical and electronic teaching and training assessment platform allows students to master the basic knowledge of electricity, and learn common electrical and electronic knowledge such as power supply, voltage, resistance, current, connector, and actuator through the teaching module to meet the basic teaching of basic electrical applications for new energy vehicles.

Ⅱ.Product Composition

The training platform is composed of Removable bench, storage drawer, storage cabinet, diode (5 kinds), color ring resistor (5 kinds), triode (2 kinds), adjustable resistor (2 kinds), fuses 5, relays 2,motor, crankshaft position sensor, camshaft position sensor, intake pressure sensor, temperature sensor, oxygen sensor, ignition coil, oil potential transmission Sensor, DC synchronous motor, AC/DC module, DC/DC module, high voltage relay, self-induction demonstration, data diagnosis, etc

Ⅲ.Product Features

1.The new energy vehicle electrical and electronic teaching and training assessment platform adopts modular research and development, and each module can be trained individually or in series and parallel.

2.The new energy vehicle electrical and electronic teaching and training assessment platform is divided into electronic and electrical basic module, electronic and electrical sensor module, electronic and electrical actuator module,and the assessment module is to convenient to consolidate knowledge points by learning ,practice and taking test at time.

3.The training part is completed on the measurement circuit board, which is convenient and fast to operate and easy to replace. Close to the actual work scene, easy to produce expanded practical training projects, combined with actual measurement, so that practical training closer to the actual fault, so that students can be more real training.

4.Over current, over voltage and temperature protection: The whole monitoring device is equipped in case overload or short circuit. Once the above situation happened it can automatically cut off the power and after troubleshooting it can start the working power again, to ensure the safety of equipment and operators.

Ⅳ.Training Purpose.

1. The use of resistance of multi-meter, the application of adjustable resistance in automobile teaching practice training and assessment。
2, The use of multi-meter, diode, transistor characteristics of teaching practical training and assessment
3. The application of relays and fuses in automobiles, and the use of multi-meters.
4, Sensor classification and principle, function, single detection method, multi-meter use teaching training and assessment
5, The characteristics of Ohm's law, the relationship between voltage, resistance and current, and the application of teaching and training and assessment in automobiles.
6, DC synchronous motor and AC asynchronous motor, teaching training and assessment
7, AC/DC principle, automotive circuit principle, the use of multi-meter and precautions teaching practical training and assessment
8, Self-inductance phenomenon and mutual inductance phenomenon demonstration and application
9. Application and assessment of PWM pulse width modulation module.
10, DC-DC booster module training and assessment.

Ⅴ.Product Parameters

1) Bench size about:1600mm*800mm*1750mm
2) Power supply type: AC 220V
3) Working temperature :-35℃ ~ 40℃
4) Equipment weight: about 100KG
