Product Description
NST10-G1 Star tracker is a fully autonomous Nano Star Tracker for high precision attitude determination. With high dynamic performance: 10°/s, NST10-G1 is designed for the ultra-high dynamic requirements of satellites.
NST10-G1 Parameters:
| Dimensions |
Sensor+Baffle |
115×85×198(mm³) |
| Mass |
Sensor+Baffle |
700g |
| Optical Design |
Lens |
refracitive |
| Environmental |
Vibration (FM) |
sine 13g, random 12 grms |
| Vibration (Qualification) |
sine 16g, random 18 grms |
| Working Temperature |
-30~50（℃） |
| Radiation Resistance |
50 Krad [Si] |
| Performance |
Field of View |
15°×15°[effective] |
| Attitude Accuracy(pointing/rolling) |
＜5″[3σ] |
| ＜50″[3σ] |
| Update Rate |
20 Hz |
| Dynamic performance |
10°/s |
| Sensitivity |
5.8Mv,Go.Ref star |
| Exclusive Angle |
Sun: ＜ 35° |
| Earth: ＜ 30° |
| Data Interface |
RS422/CAN |
| Power Consumption |
2W |
| Input Voltage |
5V |
| Life Time |
5years |

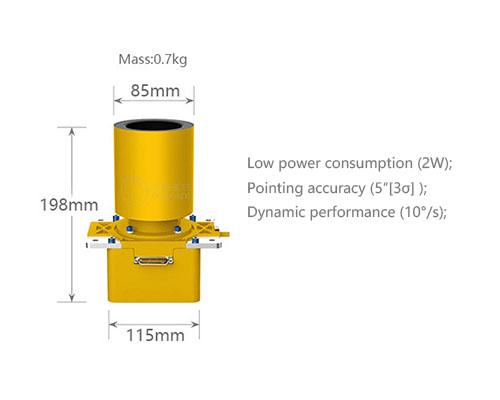

Product Image
Img 1
