800W foldable LED gorw light housing 600W1000W 1200W LED foldable grow light

Model:G640
Brand:IVIN
Origin:Made In China
Category:Consumer Electronics & Lighting / Lighting / Lighting Fixtures
Label:Foldable LED light , 1200W LED grow light , 800W foldable LED
Price: US $45 / pc
Min. Order:300 pc
Inquire Now

Member Information

Detail

Shenzhen Ivin Engineering Co., Ltd.

Biz MemberGuang Dong - China
Last Online:17 Feb, 2025

View all products. (190)

Product Description

800W 1000W foldable LED grow light housing set -  640W foldable LED grow light housing.

6020 heatsink :  6Pcs    1000*60*20mm
1M Power： 100W
AL6063 Aluminum profile.
CNC Machining, Silver anodized.



Beam frame * 4 Pcs
45*35*520mm.
+ 8 * Beam Frame end caps
 Silver anodized.

Torsion Hinge -  2 Pcs
1.4N torque force / Piece = 14KG.
2Pcs = Total 28KG troque force.

IV18266  Driver box:  1 set：                  （395mm driver box +  2 end caps. )
External: 182*66mm
Internal: 172*52mm
Can install 1 * Meanwell HLG-640W
　

2 wings pendnat chian : 2 Pcs                         (Each side use 1 Piece.)

Total: 6 * connect Buckle + 2 * Connect ring + 4*40cm S.S chain + 2*1M S.S  Chain.
SUS304 Stainless steel material.

SUS304 Stainless steel screws below:    (0.16kg)
32 * M3*10mm Countersunk Cross head  screws .    - Fix Beam Frame end caps.
8 * M4*12mm Cross head screws .            -  Fix Torsion Hinge.
24 * M4*12mm Cross head screws .            -  Fix 6*heatsinks.
12 * M4*12mm Cross head screws .            -  Fix Driver box end caps.
4 * M3*10mm Cross head screws .            -  Fix Driver box onto heatsink back.
4 * PG9  fix onto Beam Frame and driver box  - wire in& out.



1  * Full housing set:

Total weight：9.3KG

6in1 Power: 640W

Specification：    1048*1.72mm * H:1.2M


Price Terms:EXW
Payment Terms:T/T
Packing:Carton + Pallet
Lead Time:20 days
material:AL6063

Product Image

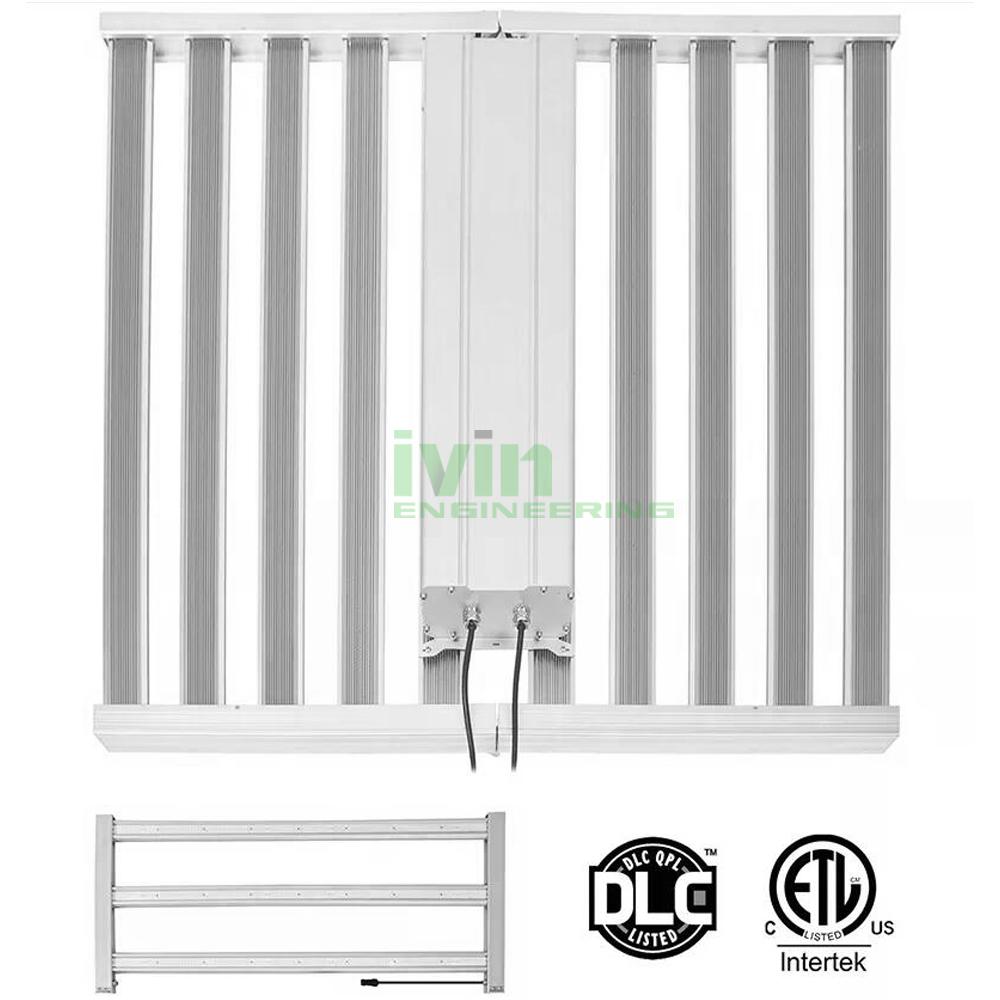

800W foldable LED gorw light housing 600W1000W 1200W LED foldable grow light 1
Img 1

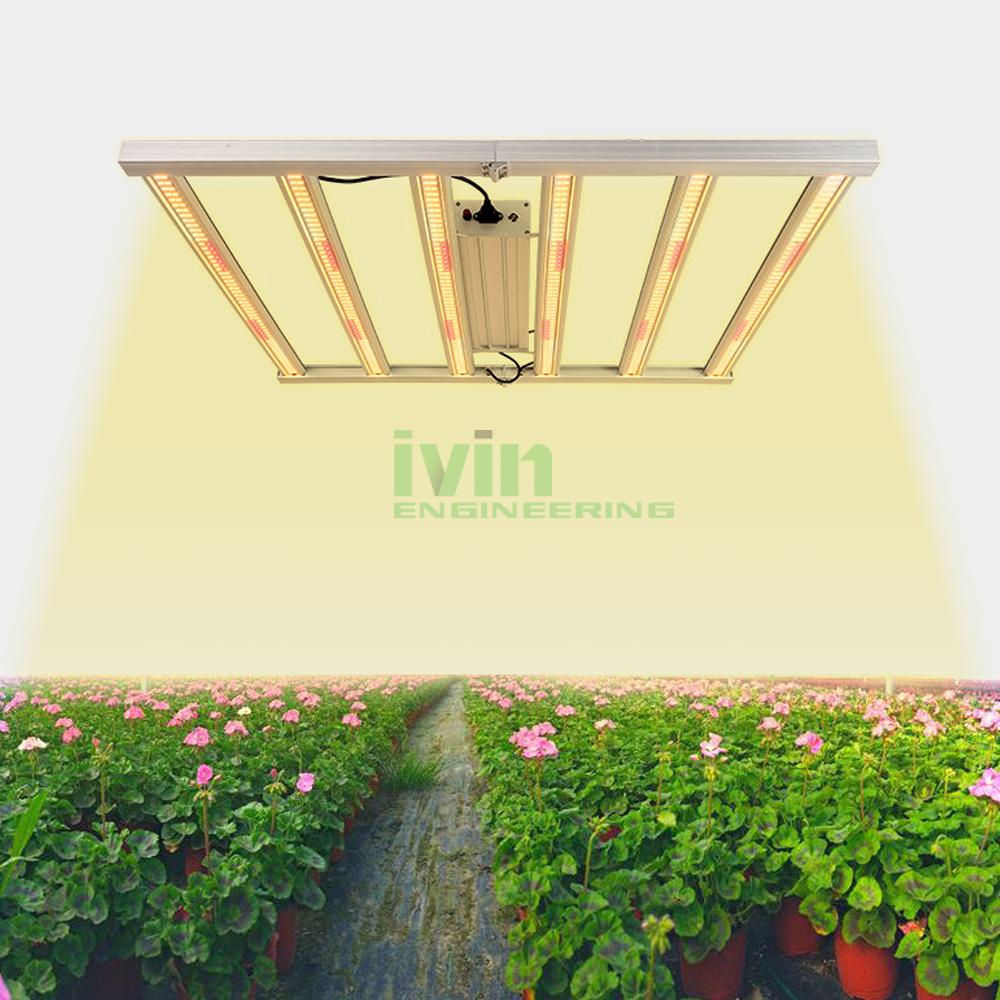

800W foldable LED gorw light housing 600W1000W 1200W LED foldable grow light 2
