Silicone pad printing head heat transfer machine

Model:LC-TH-160R
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:Heat transfer machin , transfer machine , heat transfer
Price: US $7500 / unit
Min. Order:1 unit
Inquire Now

Member Information

Detail

Luen Cheong Printing Equipment Ltd

Biz MemberGuang Dong - China
Last Online:28 Oct, 2024

View all products. (367)

Product Description

Parameters:

1、Maximum hot stamping area ：160x160 mm
2、Heating electric furnace size ：200x130mm
3、Working temperature ：200~250℃
4、Maximum workpiece height ：110 mm
5、The pressure cylinder has adjustable stroke of ：50 mm
6、Die bench area ：320x240 mm
7、Entry and exit work table travel ：250 mm
8、Machine size ：1400x1100x1700mm
9、The machine weighs ：400 kg
10、Machine power ：2000W
11、Working air pressure ：0.4-0.6pa
12、Flower film pattern ：can be positioned
13、Control system ：PLC touch screen control
14、Rewinding mode ：Automatic rewinding of film
15、Operation ：mode Easy operation in and out of the workbench


Product Image

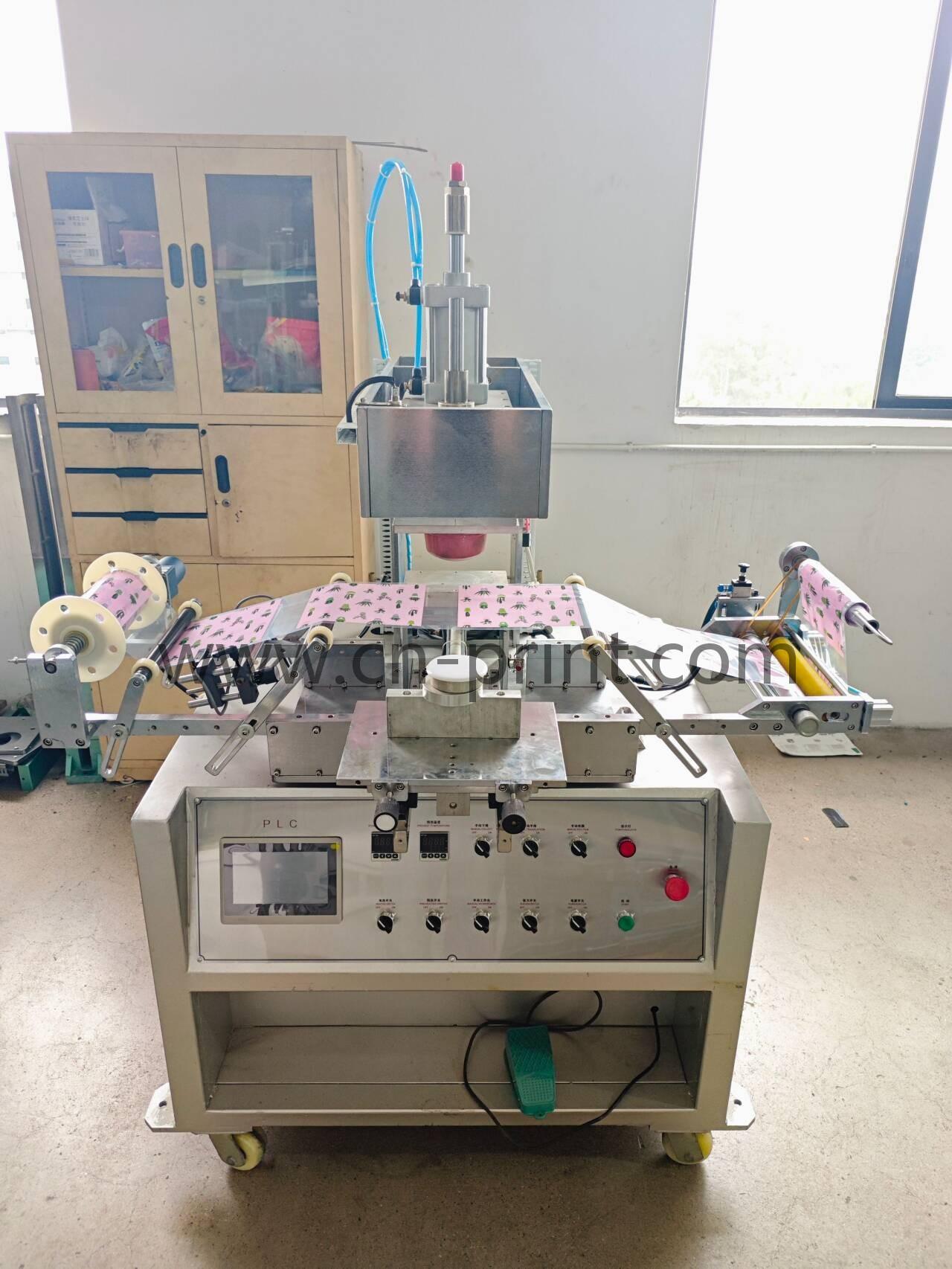

Silicone pad printing head heat transfer machine 1
Img 1

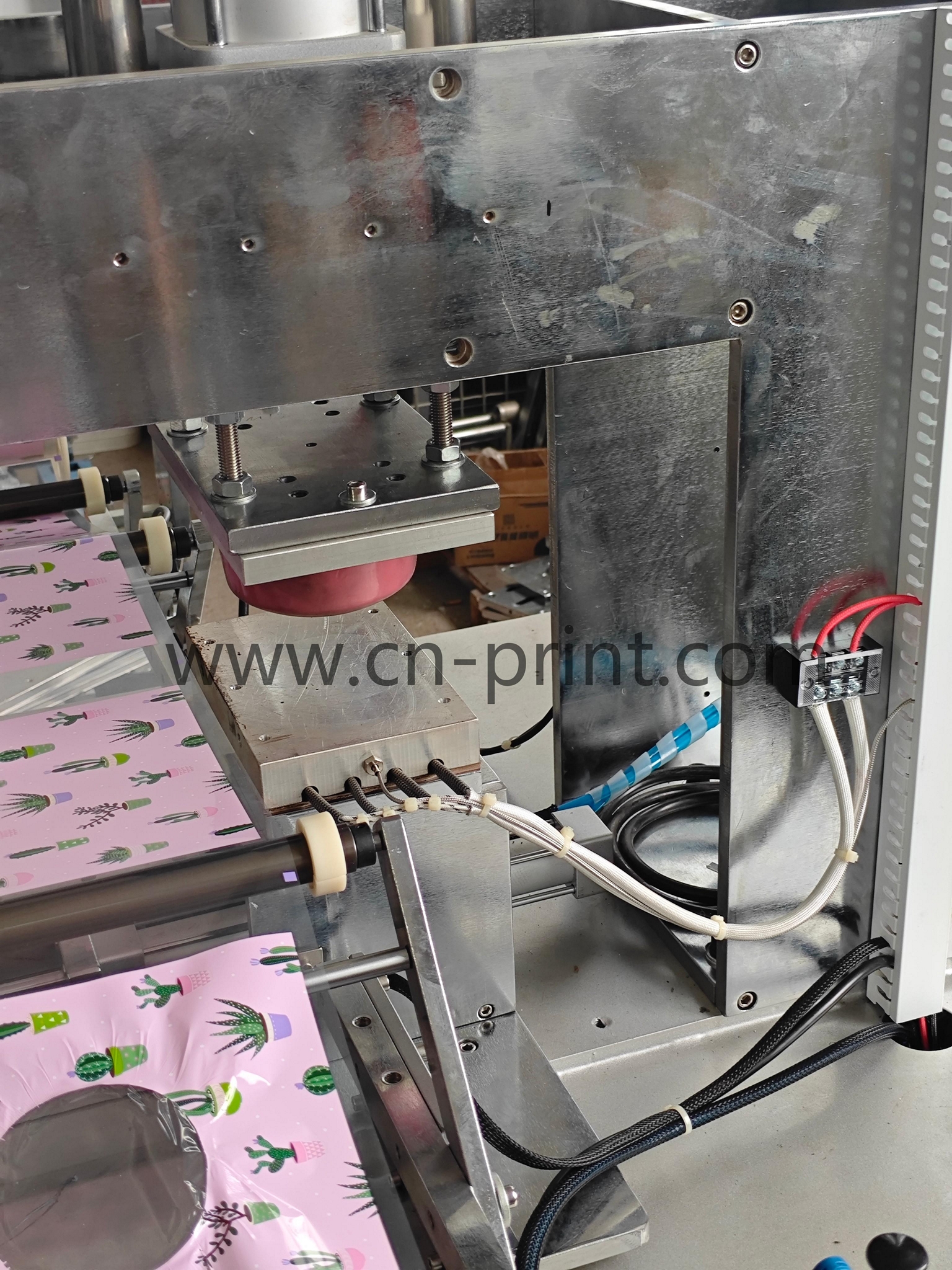

Silicone pad printing head heat transfer machine 2
Img 2

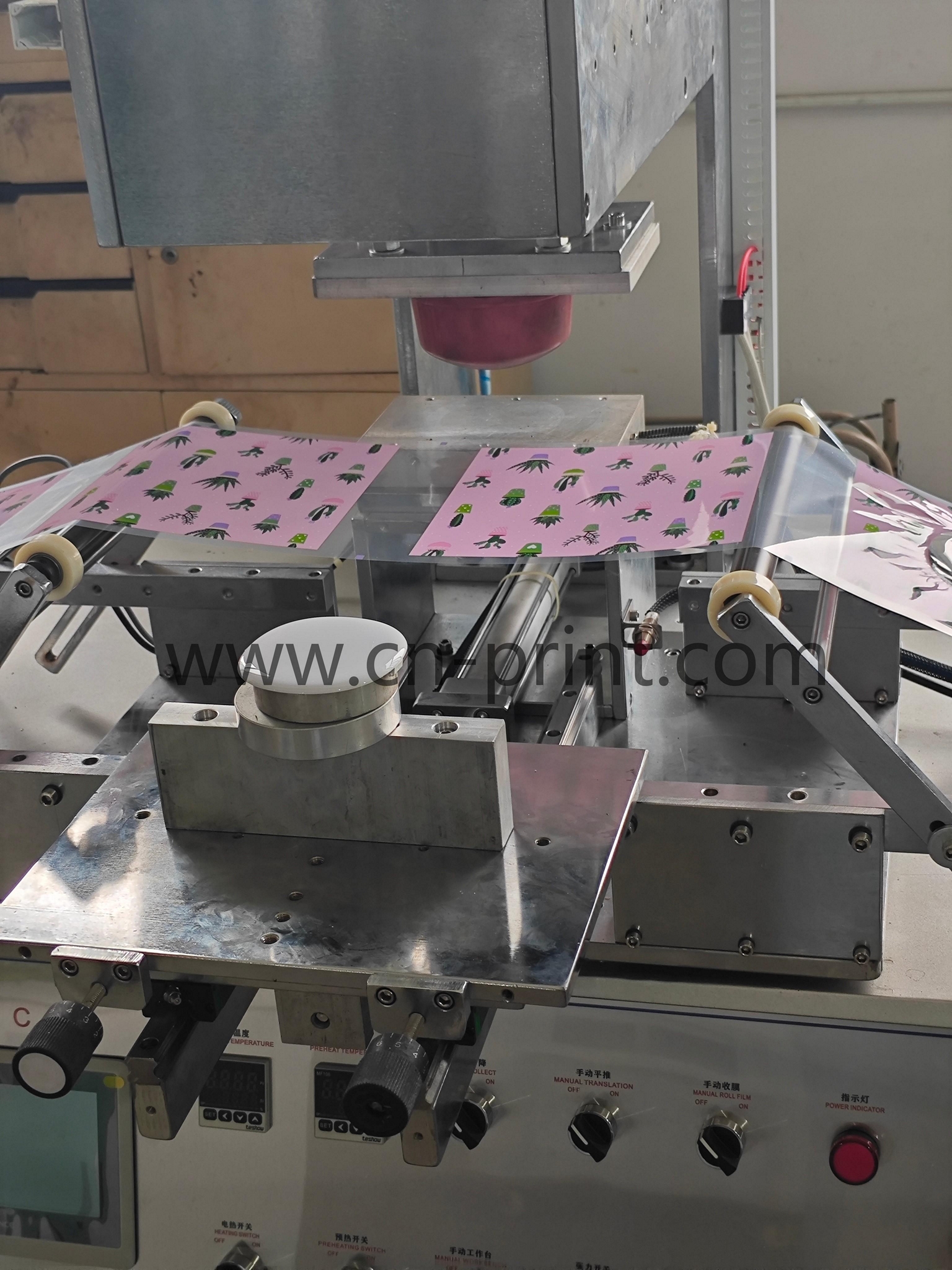

Silicone pad printing head heat transfer machine 3
Img 3

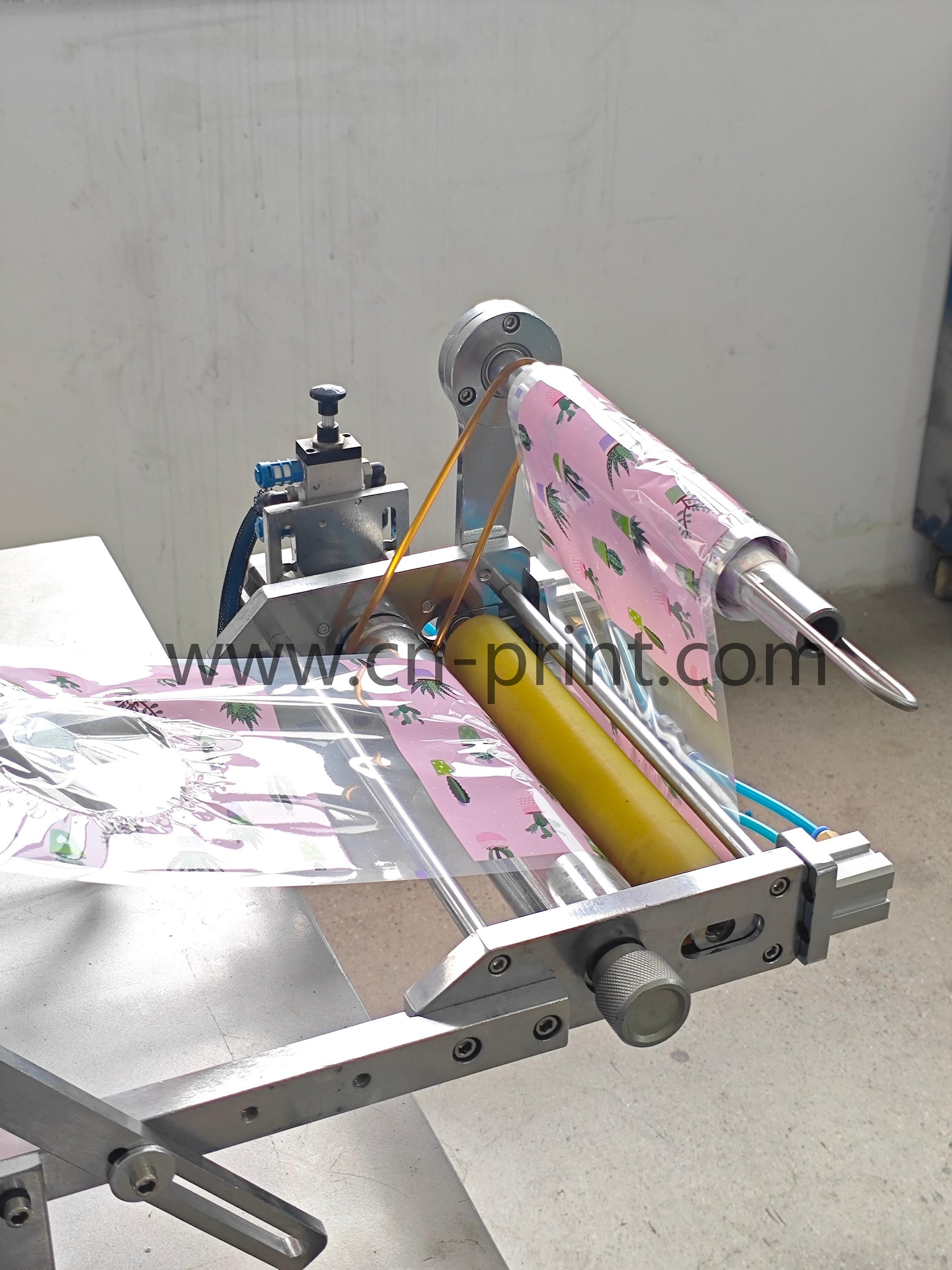

Silicone pad printing head heat transfer machine 4
Img 4

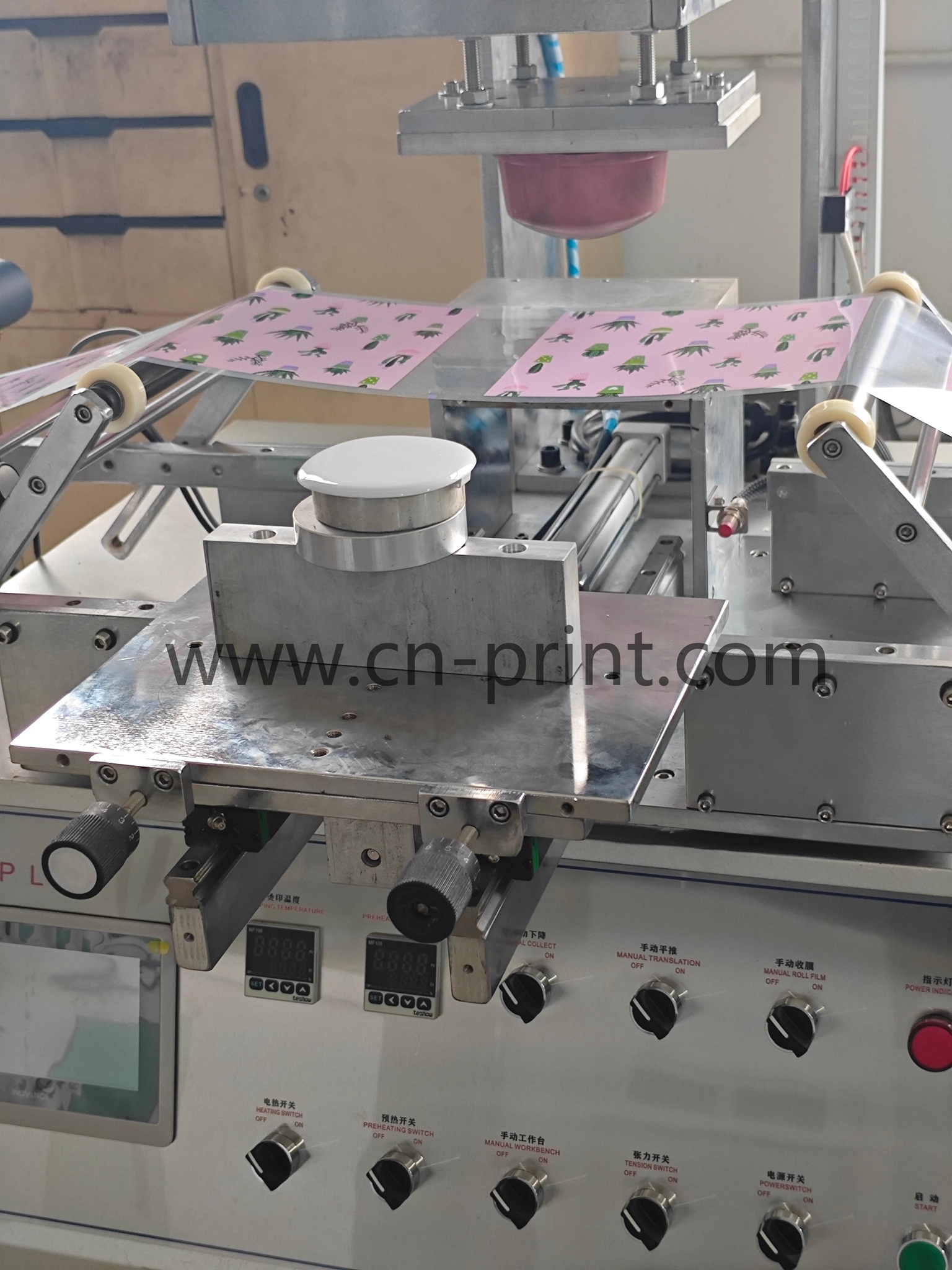

Silicone pad printing head heat transfer machine 5
Img 5

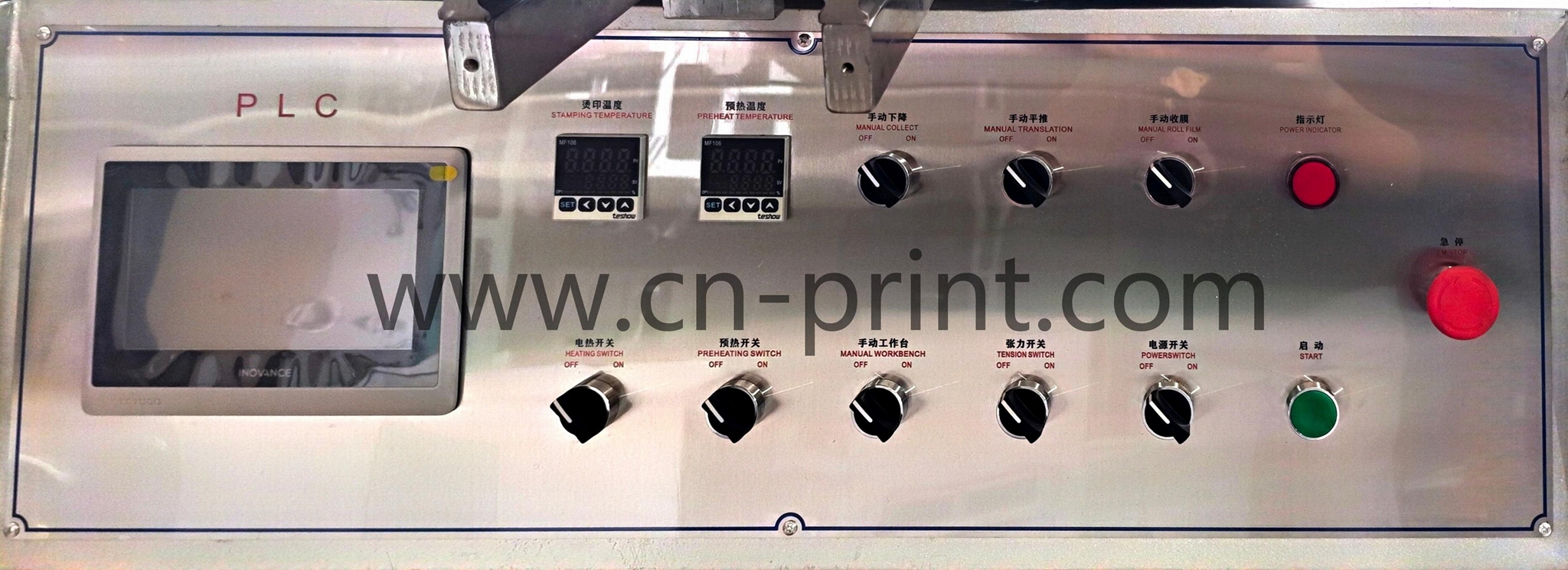

Silicone pad printing head heat transfer machine 6
Img 6

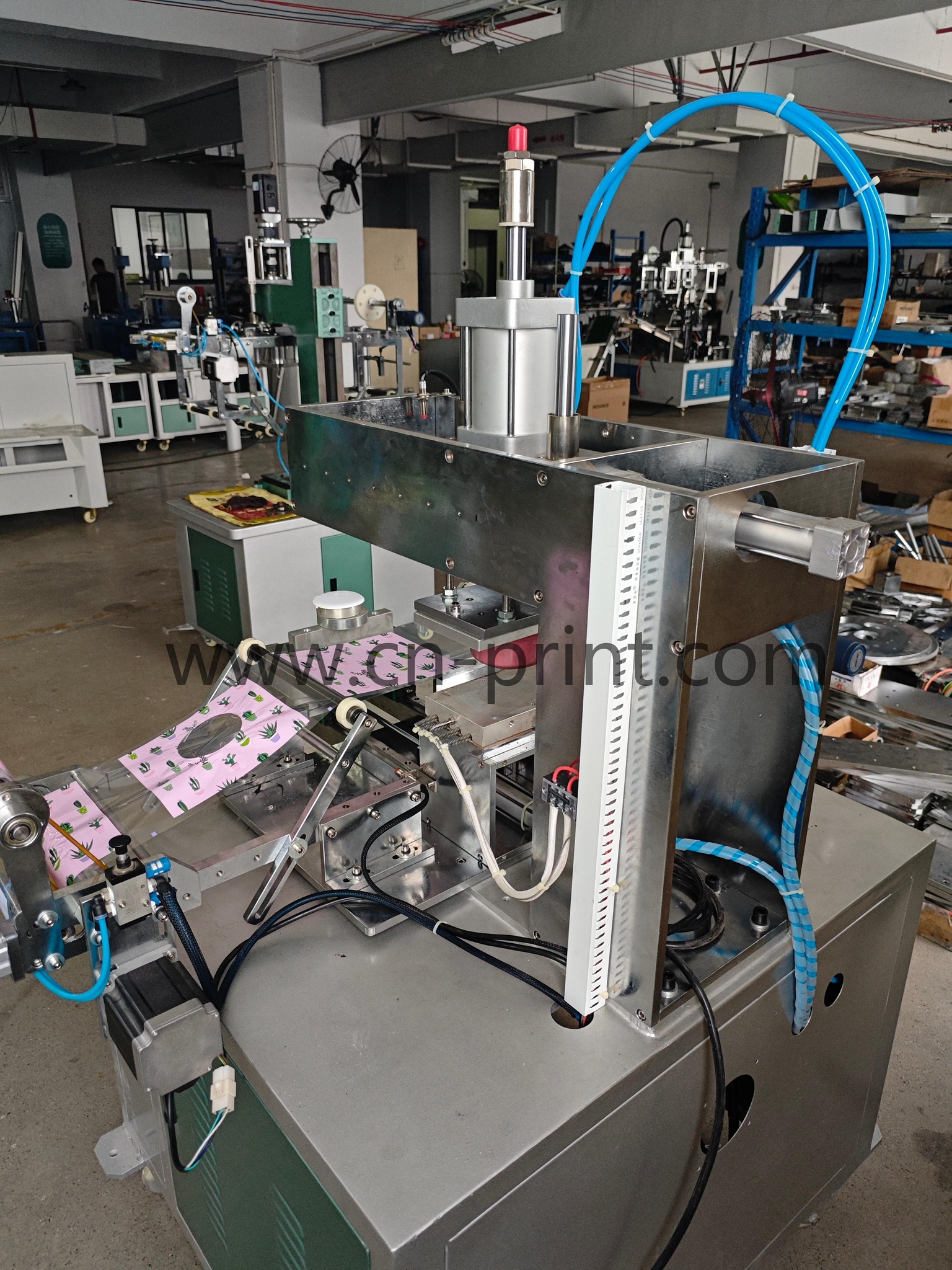

Silicone pad printing head heat transfer machine 7
Img 7
Silicone pad printing head heat transfer machine 8
Img 8
Silicone pad printing head heat transfer machine 9
Img 9
Silicone pad printing head heat transfer machine 10
Img 10
Silicone pad printing head heat transfer machine 11
Img 11
Silicone pad printing head heat transfer machine 12
Img 12
Silicone pad printing head heat transfer machine 13
Img 13
