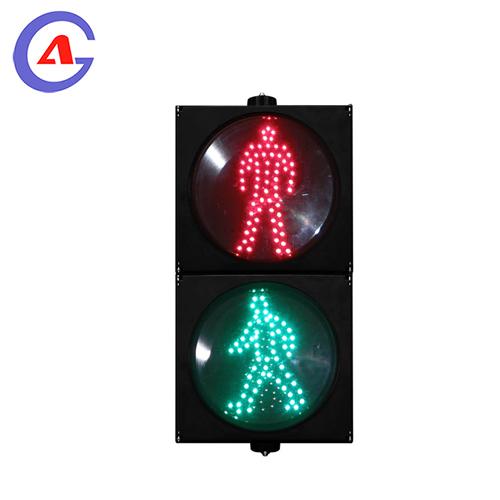

Pedestrian signal light head to be used at Pedestrian crossings and walkways. 2 aspect 200mm or 300mm LED Traffic light comes with sun visor and right angle metal mounting brackets which can be easily mounted to a pole or wall. Green man and red man could both be in same section or in different sections. The green man is available for a static symbol or animation symbol.

Pedestrian signal light specification

• Input Voltage: 12-24VDC or 85-265VAC
• Power factor: >0.9
• Lens Diameter: 200mm, 300mm
• Aspects: 1 aspect (red man green man 2 in 1) or 2 aspects
• Color-Wavelength: Red 620~630nm, Green 503~508nm
• Working Temperature: -40ºC ~ +80ºC
• Rating: IP65 Weather Resistant
• Housing: UV Resistant Poly-carbonate
• Working Humidity: ≤0.97
• Average Life of LEDs: 80,000 Hours
