| Model: | CHY-2T CHY-5T |
|---|---|
| Brand: | Chengyi |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Laboratory Instrument |
| Label: | hydraulic press , Lab hydraulic press , Smal hydraulic press |
| Price: |
US $852
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:01 Nov, 2023 |
Laboratory Manual powder hydraulic press
The new manual sheet press is widely used in new materials, superconductivity, powder ceramics, new power supply, batteries, building materials, metallurgical powder, and can be used with calcium iron analysis, infrared spectrum (IR), X fluorescence (XRF) analysis instruments; potassium bromide (KBr), sodium chloride (NaCl) and other powder materials for analysis; and it is also suitable for other working situations requiring corresponding pressure for pressure resistance of various objects, which is widely used. The machine is an integrated oil cylinder, reducing the oil leakage point has the advantages of compact structure, small volume, fast raw pressure, simple operation, conducive to cleaning, convenient and so on.
The 2T manual powder hydraulic press is used for laboratory small specifications
5T 12T 15T Two-column manual powder hydraulic press for small laboratory size
15T 24T 30T 40T four-column manual powder hydraulic presis used for small laboratory specifications
Main technical parameters of infrared tablet press
|
model |
CHY-2T |
CHY-5T |
CHY-12T |
CHY-15T |
CHY-24T |
CHY-30T |
CHY-40T |
|
pressure limit |
0-2T(30Mpa) |
0-5T(31.4Mpa) |
0-12T(30Mpa) |
0-15T(30Mpa) |
0-24T(34Mpa) |
0-30T(31.5Mpa) |
0-40T(30Mpa) |
|
piston diameter |
28mm |
45mm |
70mm |
80mm |
95mm |
110mm |
130mm |
|
piston stroke |
5mm |
30mm |
30mm |
30mm |
30mm |
40mm |
50mm |
|
pressure stability |
≤1MPa/10min |
|
|
|
|
|
|
|
Workbench diameter |
45mm |
80mm |
80mm |
90mm |
105mm |
120mm |
140mm |
|
Column number |
2 |
2 |
2 |
4 |
4 |
4 |
4 |
|
Column spacing |
54mm*55mm |
96mm*130mm |
96mm*130mm |
80mm*130mm |
80mm*150mm |
92mm*160m |
106mm*185m |
|
Dimension (mm) |
100*220*220 |
225*155*380 |
225*155*380 |
245*175*390 |
245*175*415 |
275*195*420 |
295*215*500 |
|
weight (kg) |
4.8kg |
28 |
28 |
40 |
42 |
56 |
75 |
3. Model introduction:

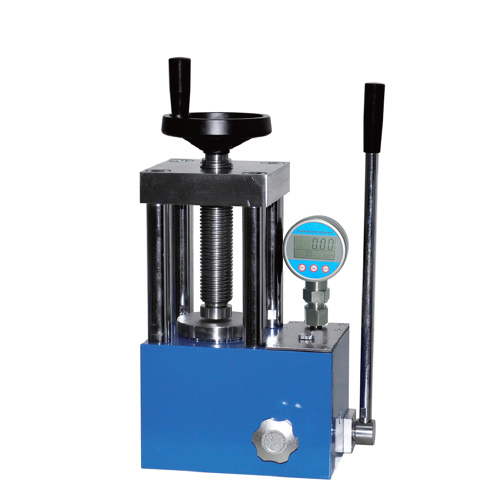

Manual powder press is the most popular oil press, its economy is practical and practical, easy to operate, common in the university laboratory used to suppress infrared samples, also known as infrared press., Used for infrared spectrum research and analysis, etc.; the machine adopts the pointer pressure gauge, double scale shows the pressure tonnage, pressure MPa, applied pressure without conversion, to avoid the mold overpressure phenomenon. If the accuracy of pressure control is relatively strict, the digital pressure gauge can be selected, and the display accuracy is 0.01MPa, which is suitable for places or pressure test activities with more accurate pressure control.
