Now we have developed a Manual Plastic Tube Filling and Sealing Machine according to the market demand, which is more suitable for small batch production and laboratory production needs.

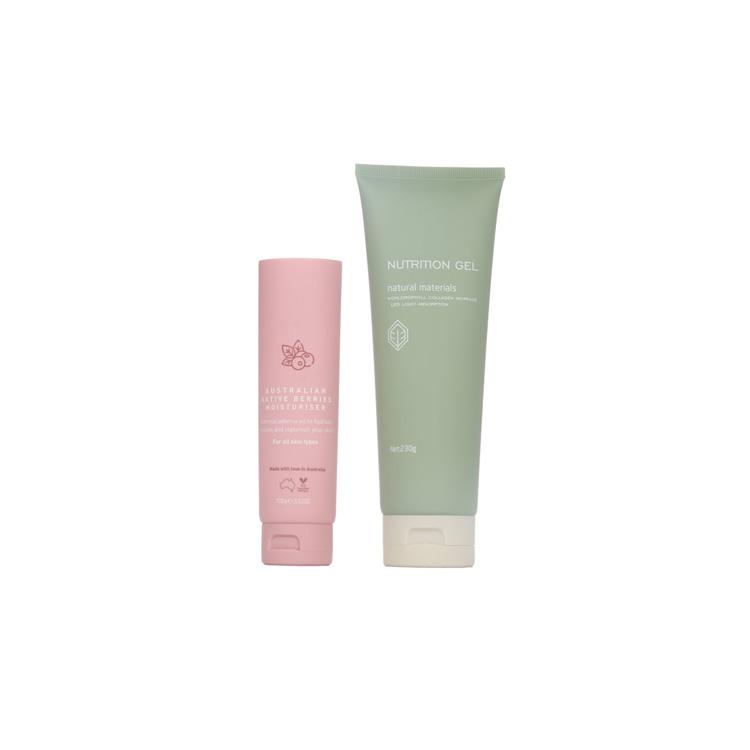

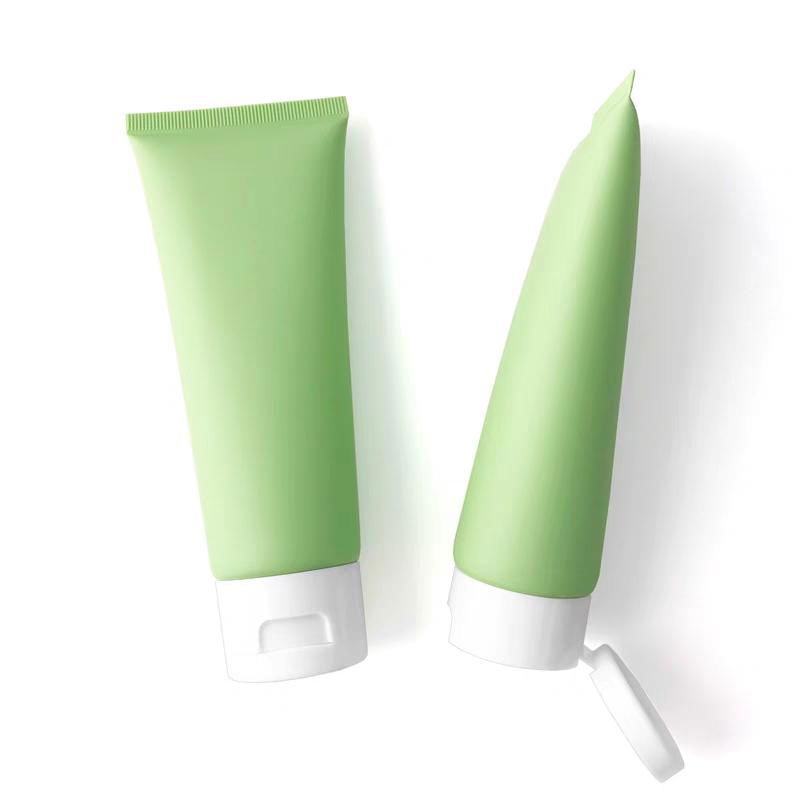

○ This machine adopts with internal heating method to seal the tube tail, more safer and stabler. Working process requires human intervention and consists of manual color-mark finding, filling, heating, sealing, manufacturing date printing, cutting and tube discharging. It often applies to the cosmetics industry, like face cleansers, hair conditioners, hair dyes, toothpastes, which is suitable for various packaging materials such as tubes, composite tubes, and various sizes of customization.

○ Compact and small size, easy to move.

○ Process of product replacement is easy and fast. Strong universality.

Filling volume:10-250 ml

Capacity:5-15 tube/min

Tube diameter:ф10-50 mm

Tube length:110-250mm

Hopper volume:25 L

Compressed Air:0.6-0.8MPa

Power:380/220V

Filling accuracy：≤±1%

Dimension:1000×1000×1400mm LxWxH

Weight:135kg
