Ride on double drum vibratory roller

Model:SVH700
Brand:Petros
Origin:Made In China
Category:Industrial Supplies / Other Industrial Supplies
Label:roller , drum vibratory rolle , double drum roller
Price: -
Min. Order:-
Inquire Now Add to Basket

Member Information

Detail

Product Description

FEATURES

Equipped with famous brand engine, could guarantee quality stability and excellent performance.

Ergonomic streamlined body design, wide field of vision and beautiful appearance.

Used international famous brand hydraulic pump and motor, which can be steplessly shifted and walk forward and backward.

The control instrument panel has complete functions, one button operation.

Assembled with LED working light, could work at night.

Hydraulic oil air-cooled radiator, fast heat dissipation, long battery life.

Product passed CE certification.



Overall Size

Total length (L)

mm

1550

Working width (W)

mm

875

Total height (H)

mm

1210

Wheel diameter (H1)

mm

530(FRONT)425(REAR)

Drum width (M1)

mm

700(FRONT)500(REAR)

Wheel base

mm

1110



Technical Date

Unit

SVH70

Model



SVH70

SVH70C

Weights

Operating weight

kg

780

Static linear load

N/cm

55

Dimensions

Working width

mm

875

Total length

mm

1550

Total height with ROPS

mm

1210

Turning radius(outer)

mm

2300

Drum width

mm

700(front) 500(rear)

Drum diameter

mm

530 (front) 425(rear)

Wheel base

mm

1110

Drive

Engine manufacturer



HONDA

CHANGFA

CHANGFA

LONCIN

Type



GX390

180F

178F

390FD

Engine type



Gasoline engine four stroke

Diesel engine four stroke

Diesel engine four stroke

Gasoline engine four stroke

Number of cylinders



1

1

1

1

Power IS0 14396

kW

9.7

4.8

4.4

9.7

Rating speed

rpm

3600

3600

3600

2400

Electric equipment

V

12

Drive mode



Two way hydraulic, chain drive

Driving characteristics

Speed

km/h

0-5

Climbing ability, vibration on/off

%

30

Brakes

Working brake



Variable displacement pump

Steering

Steering method



Mechanical steering

Steering system



Rear wheel steering

Exciter system

Vibrating drum



Front

Driving form



Mechanical drive

Frequency

Hz

70

Amplitude

mm

0.5

Centrifugal force

kN

25

Sprinkler system

Type of sprinkling



Gravity spray

Capacities

Hydraulic oil

I

12

Fuel

I

6.5

3.5

2.7

6.5

Water

I

18


Product Image

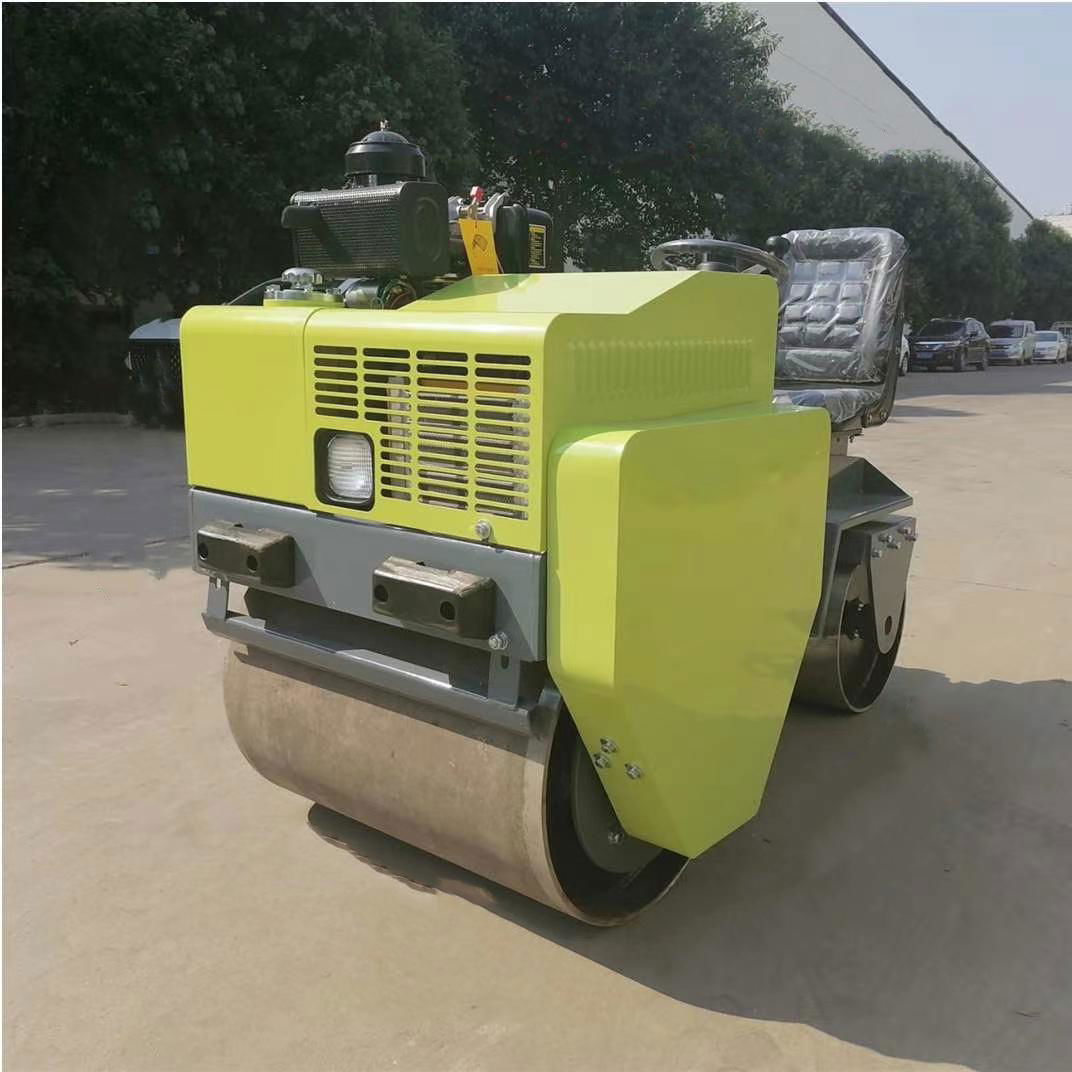

Ride on double drum vibratory roller 1
Img 1

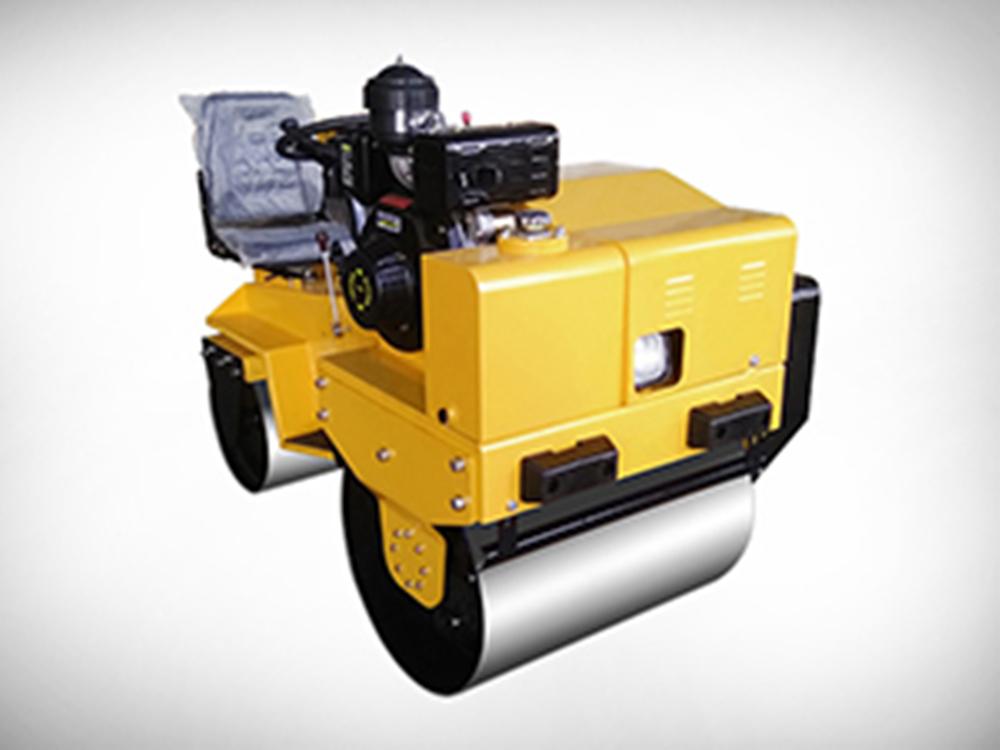

Ride on double drum vibratory roller 2
Img 2

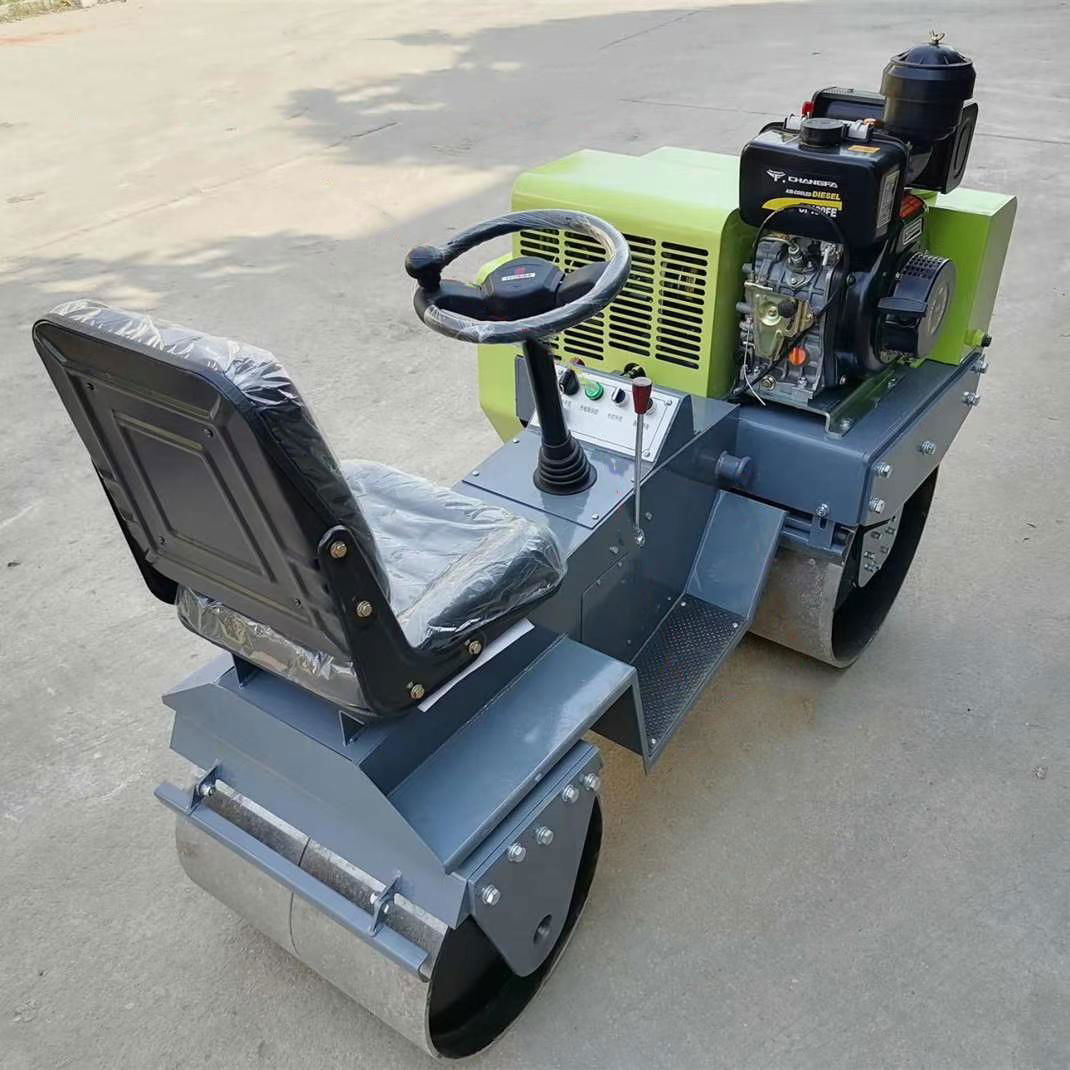

Ride on double drum vibratory roller 3
Img 3
Ride on double drum vibratory roller 4
Img 4
Ride on double drum vibratory roller 5
Img 5
Ride on double drum vibratory roller 6
Img 6
Ride on double drum vibratory roller 7
Img 7
