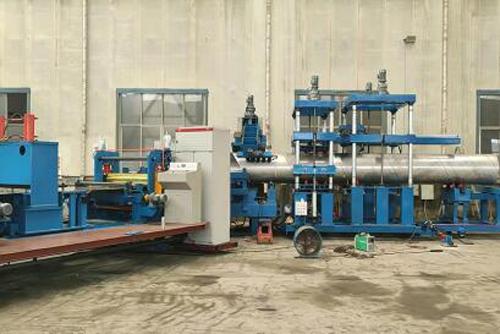

The stainless steel spiral welded pipe unit adopts front-swing intermittent production, which is a complete set of spiral steel pipe manufacturing machine integrating machinery, electrical automation control and hydraulic control.
SPECIFICATION OF STAINLESS STEEL SPIRAL WELDED PIPE PRODUCTION LINE
|
Forming direction |
Front swing, intermittent production, center positioning |
|
Forming direction |
Left feed, right rotation molding |
|
welding speed |
0.5～2m/min |
|
Forming method |
Three-roll bending forming, external control roll sizing, internal expansion plate auxiliary forming |
|
welding equipment |
TIG welding machine WS1000 |
|
Welding method |
Internal welding, argon arc automatic welding without filler wire |
|
Host installed capacity |
100 KVA |
PRODUCT (STEEL PIPE) PRODUCTION PROCESS
Uncoiling→pinch leveling→vertical roller→shear butt welding→vertical roller→delivery machine→guide plate→forming→internal welding→flying cutting of centralizer→drawing out
STAINLESS STEEL SPIRAL WELDED PIPE PRODUCTION LINE EQUIPMENT COMPOSITION
|
|
Device name |
Quantity |
|
Host device |
||
|
1 |
Uncoiler |
1 |
|
2 |
Pinch Leveler |
1 |
|
3 |
Electric Vertical Roller |
2 |
|
4 |
shear butt welding |
1 |
|
5 |
delivery machine |
1 |
|
6 |
Guides |
1 |
|
7 |
Forming Machine |
1 |
|
8 |
front bridge |
1 |
|
9 |
Internal welding device |
1 |
|
10 |
rear bridge |
1 |
|
11 |
centralizer |
1 |
|
12 |
fly cutter |
1 |
|
13 |
Embedded parts |
1 |
|
14 |
Auxiliary parts such as walking platform |
1 |
|
15 |
Host hydraulic system |
1 |
|
16 |
Host electrical system |
1 |
|
17 |
Huarong Plasma LGK100 |
1 |
|
18 |
Jaguar air compressor(0.9m3) |
1 |
|
19 |
Zhengte or Aotai WS315 argon arc welding machine |
1 |
|
20 |
Zhengte or Aotai WS500 argon arc welding machine |
1 |
|
21 |
Connecting cables between equipment (excluding cables before the main electrical cabinet of the equipment) |
1 |
Now the price of ss pipe making machine is reasonable, if you have needs, please contact us.
