| Model: | - |
|---|---|
| Brand: | OUTLOOK |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Optical Lens & Instrument |
| Label: | Thermal imager , Thermal Imaging , night vision |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:07 Jun, 2024 |

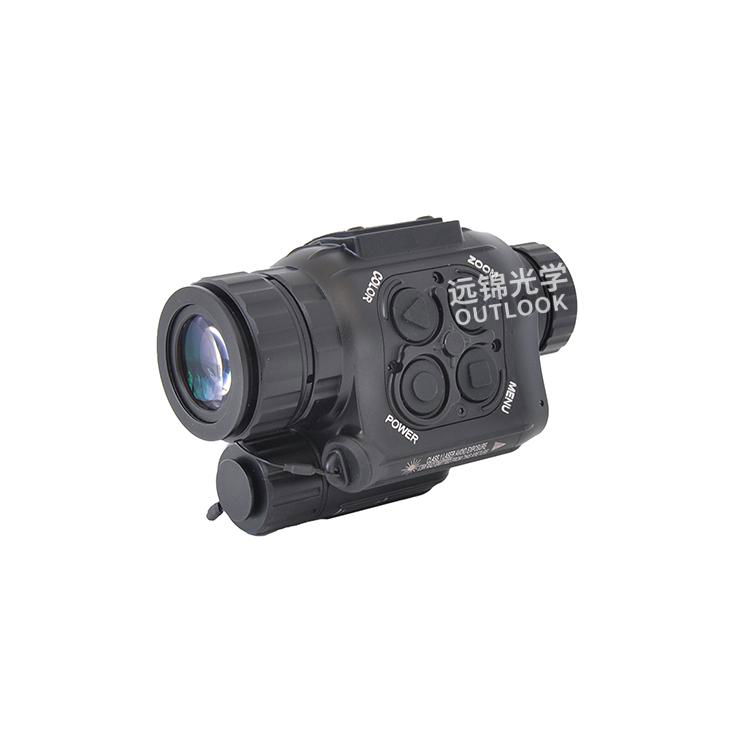

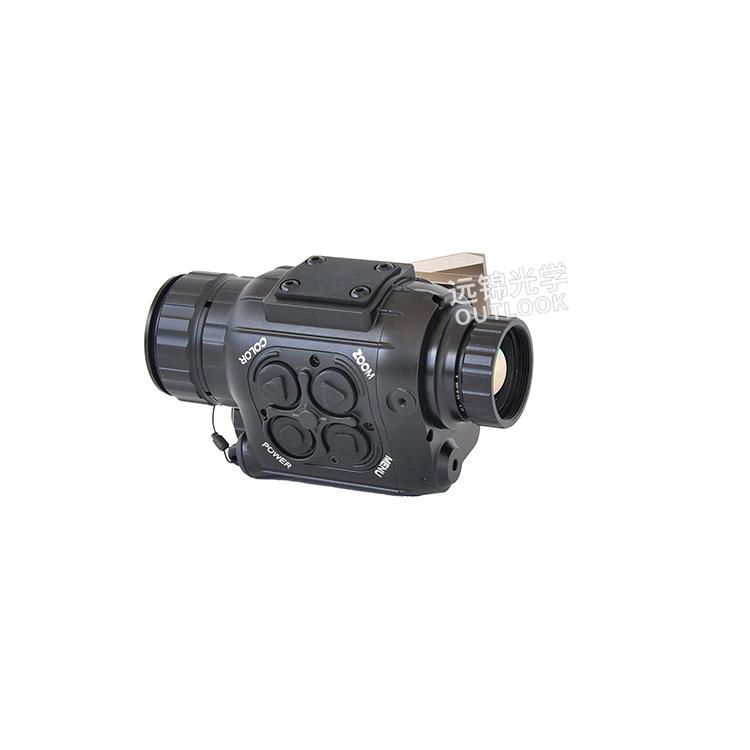

Multi-functional Thermal Imaging Thermal imager
This multi-functional thermal imaging can be applied to the below five scenarios:
1. Handheld search
2.Tandem Thermal Imaging Scope
3.Standalone Thermal Imaging Scope
4.Head mounted monocular
5.Head mounted binoculars
Product specifications
|
Specifications |
Thermal imager |
||
|
General inf. |
Sensor type |
Uncooled Vox FPA |
|
|
Resolution |
384x288 |
640x512 |
|
|
Phase element size |
17um |
12um |
|
|
Response band |
8~14um |
||
|
NETD (noise equivalent temperature difference) |
＜40mk@25°f/1.0 |
＜35mk@25°f/1.0 |
|
|
Refresh rate |
50hz |
||
|
Lens |
15mm/f1.0 |
||
|
Field of view |
25°x19° |
29°x23° |
|
|
System |
False color mode |
White hot, black hot, brown, red hot, iron red, rainbow |
|
|
Digital amplification |
50-400 continuous zoom & 1x, 2x, 4x |
||
|
Cross reticle |
4 types |
||
|
Secret bit |
3 types |
||
|
Cross color |
Auto, black, white, red, green, blue |
||
|
Hotspot tracking |
Support |
||
|
External display |
UVC protocol |
||
|
Laser Ranging |
Optional 1200M |
||
|
Take photos/videos |
Optional (400,000 photos/40 hours of video) |
||
|
Photo in photo |
Support |
||
|
Electronic compass |
Optional |
||
|
Laser red dot |
Support |
||
|
Dead pixel elimination |
Support |
||
|
Uniformity correction |
Unblocked correction |
||
|
OLED size |
0.4 inches |
||
|
OLED resolution |
1440x1080 |
||
|
Eyepiece exit pupil |
25mm |
||
|
Image sharpness enhancement |
Support |
||
|
AGC gain |
Foreground auto/background auto/linear |
||
|
Image flip |
Support |
||
|
Power |
Battery |
1 section 18350/18500 can be replaced |
|
|
Battery life |
>6H(25°) |
||
|
USB powered |
5V/2A |
||
|
Battery reverse polarity protection |
Support |
||
|
Overvoltage protection |
Support |
||
|
Application |

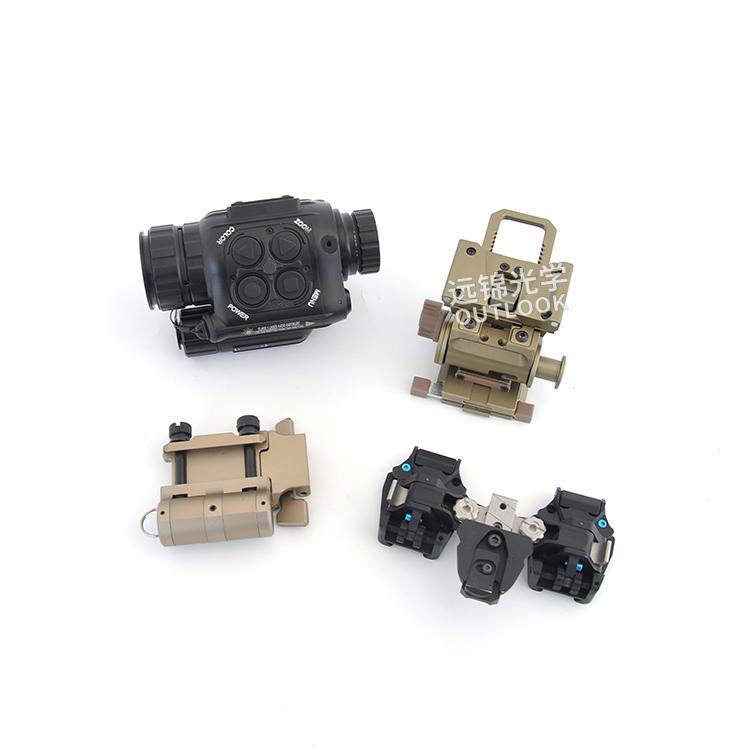

Mounting brackets |
Wilkes/Picatinny interface |
|
|
Shock vibration |
750g |
||
|
Operating temperature |
-30℃ ~ +60℃ |
||
|
Storage temperature |
-40℃ ~ +70℃ |
||
|
Protection level |
IP67 |
||
|
Shell material |
Aluminum alloy |
||
|
Size |
108x47x65mm |
||
|
Weight |
300g |
||
| Embed HTML Code: | |
|---|---|
| Specifications: | Multi-functional Thermal Imaging |
| Advantages: | small size, light weight and easy to operate |
| Export Markets: | North America, Europe, Australia, South Africa, Southeast Asia , Middle East |
| Payment Details: | TT |
| Min Order: | 1 |
| Ship Date: | 15D |
