| Model: | SP80 |
|---|---|
| Brand: | Superda |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | triangle tube , metal tube machine , triangle pipe machin |
| Price: |
US $18000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:12 Nov, 2023 |

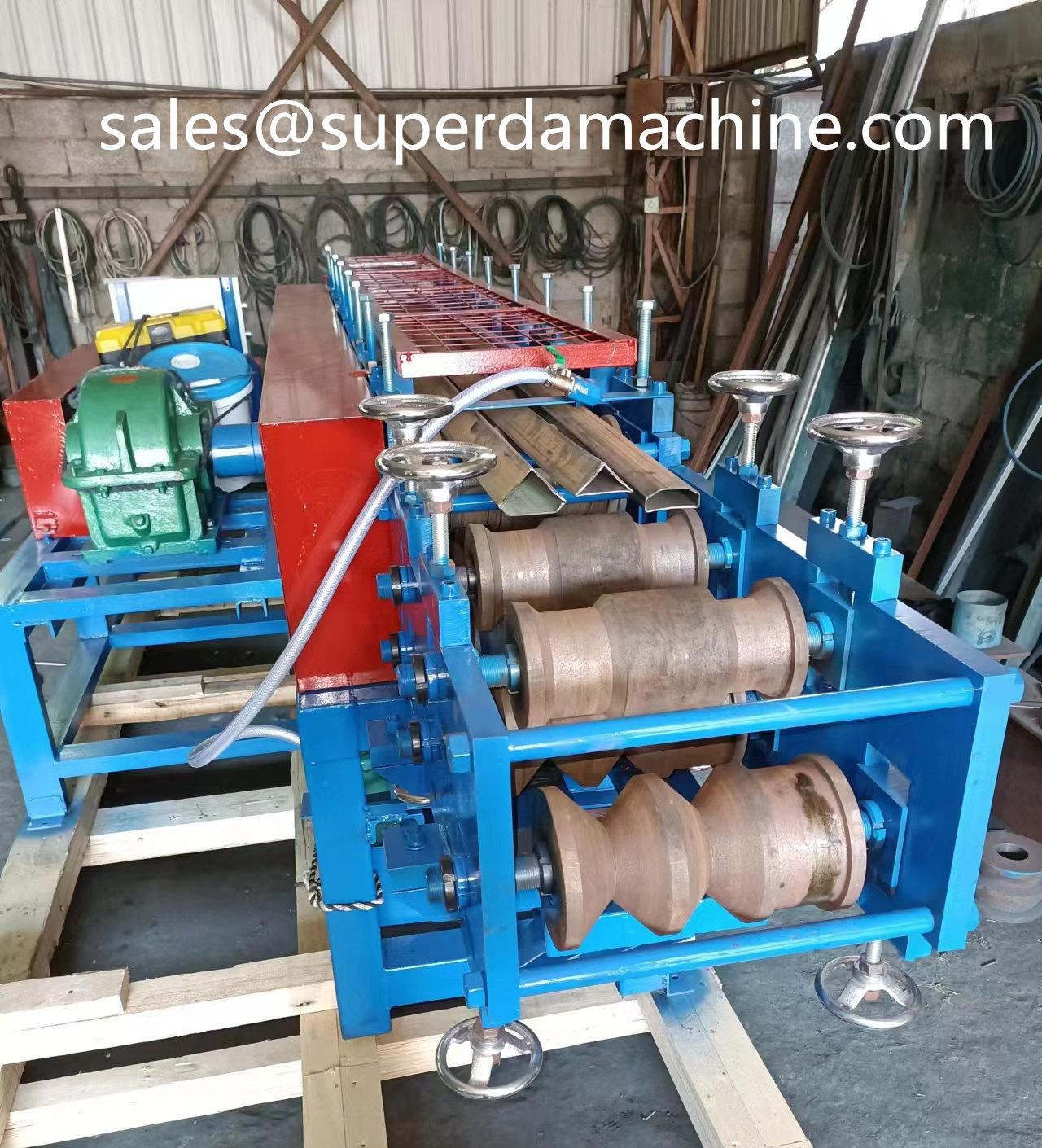

One Steel Pipe Machine Available Making Different Shape Pipe Triangle, O Shape Pipe, P Shape Pipe, Oval Pipe Etc Different Special Tube Machine.
Customized shape stee pipe triangle, o shape, oval tube, P shape, roll forming machine manufacturer

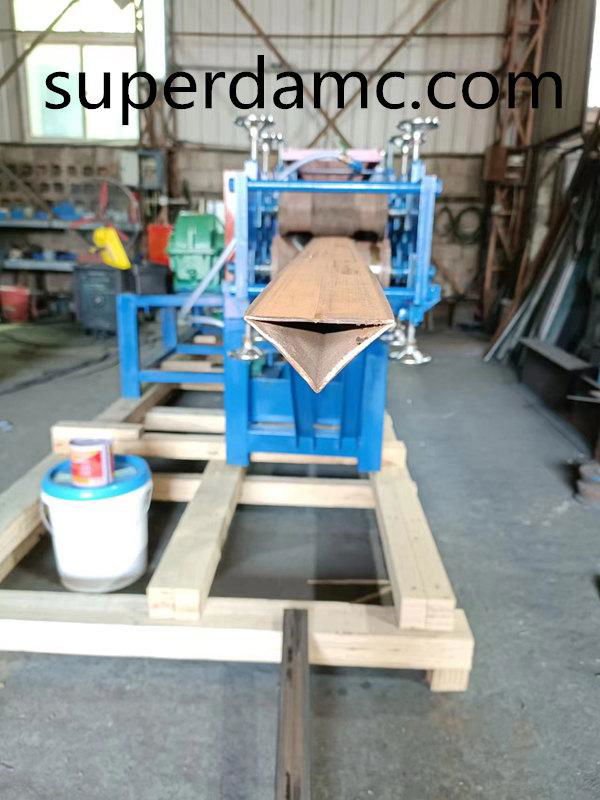

Round tube change into o pipe & ellipsoid shaped pipe
Customized Mild Steel Triangle Pipe forming machine technology
Dia. Round tube 58mm & 80mm original tube raw material.
| Model | SP-RS58 |
| Motor power | 7.5KW |
| Reducer | 350 type |
| Feed material | iron pipe |
| Feeding round tube diameter | 1.5 inch (cun) |
| Forming Roller | 8 forming + 2 straightening |
| Working speed | 10 meters / minute |
| Roller material | GCr15 heat treatment after finishing |
| Spindle material | 40Cr after quenching and tempering |
| Transmission mode | 1.2 inch chain sprocket drive |
