| Model: | WT-300 |
|---|---|
| Brand: | Wantong |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Hydraulic Pressure Machine & Parts |
| Label: | dry ice pelletizer , dry ice maker , dry ice making |
| Price: |
US $5600
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:14 Nov, 2023 |
Product Description

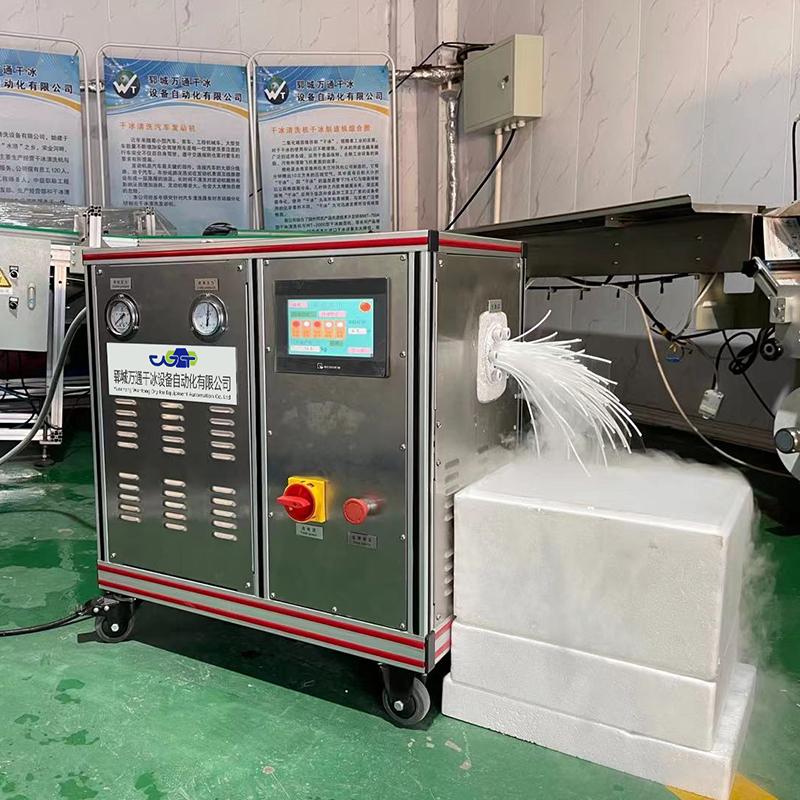

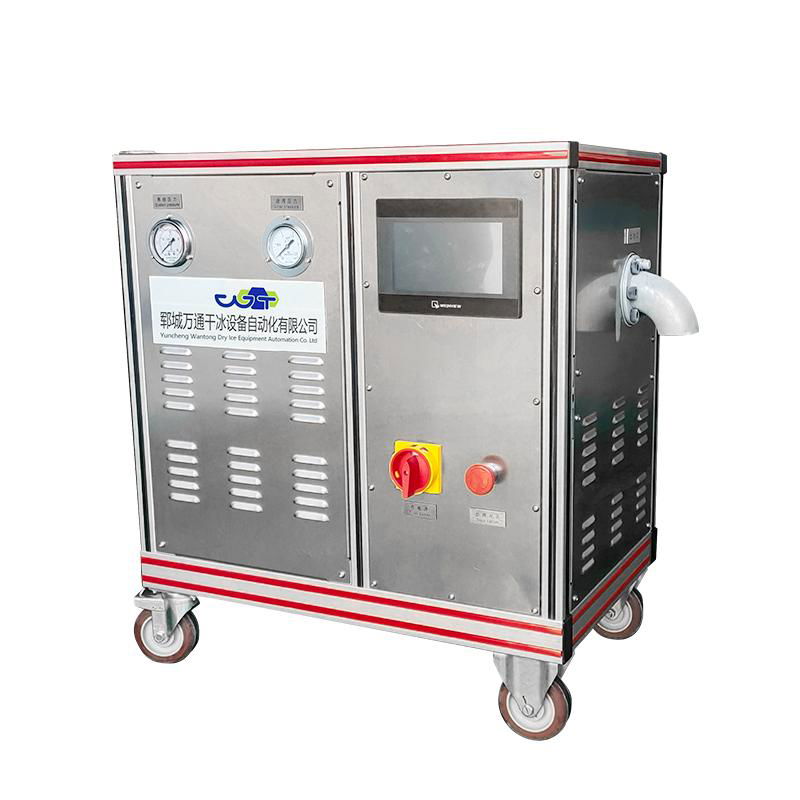

Small Type Dry Ice Pellets Maker Machine
| Model | Motor | Voltage | Capacity | Dry ice size | Transformation Rate | Raw material | Weight |
| WT-300 | 2.2 kW | 380V 50HZ | 20-30 kg/h | 3mm--14mm | ≥38% | Liquid CO2 | 150 kg |
| WT-300-2 | 3.5 kW | 380V , 50HZ | 40-60 kg/h | 3mm--14mm | ≥38% | Liquid CO2 | 180 kg |
This dry ice production system is composed of frame, oil tank, hydraulic manifold block, oilcylinder , electric motor , oil pump , solenoid valve , etc .
It has the following functions:
Manually adjust the oil pressure of the system through the pilot-operated relief valve, the adjustment range is 0.6-20MPa.
The actual pressure before and after the main cylinder can be controlled by the pressure relay.
Through the electromagnetic reversing valve , the compression , ejection , forward and backward actions of the main oil cylinder are realized.
Machine Features
The model has mini capacity 30kg/h , 60kg/h is also available .
Mainly satisfy the small demands of dry ice pellets for self use .
Dry ice size mold include 3mm 9mm 14mm , you can choose one according to your demands .
If want several molds is ok , changing a mold by yourself is not difficult .
Stainless steel 304L body , corrosion resistant, easy to clean, long service life .
PLC control panel , optional language , easy to operate .
