| Model: | R10A |
|---|---|
| Brand: | BLIIoT |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | Modbus to Wifi , Modbus to MQTT , Industrial Router |
| Price: |
US $120
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:23 Aug, 2023 |
The Industrial 4G Edge Router is not only an industrial router that provides wireless network access, but also features Modbus data acquisition, Modbus to MQTT protocol conversion, remote monitoring via cloud platform, Edge computing, programmable logic operations, etc.

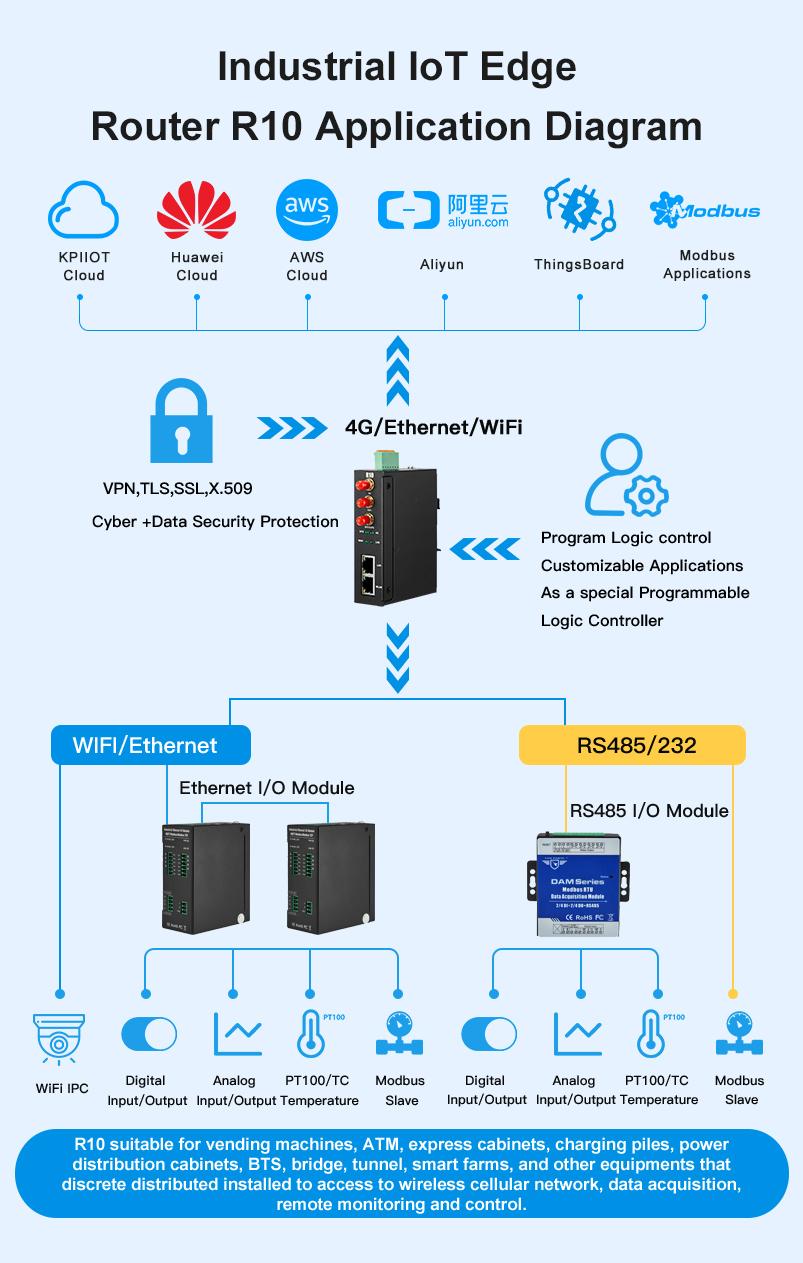

The R10 industrial router can provide wireless access network, and also can performs Modbus Master to poll meters over RS485/232 or LAN ports, then upload the data to cloud platforms under MQTT format, e.g.: AWS IoT, ThingsBoard. And the R10A industrial router can connect the remote I/O modules either by RS485/232 or Ethernet cable to monitoring data or switch on/off devices, etc.
The 4G Edge router features programmable logic control, timer, event trigger, IP connection alarm functions.
R10A industrial router also can used as Modbus RTU/TCP Master to collect data, convert Modbus to MQTT protocol, Transmit Transparently (Pass-through), and directly connect to cloud platforms such as AWS, THINGSBOARD etc.
R10A industrial 4G router supports TLS, SSL, X.509 Root certificate to ensure the security of data transmission.

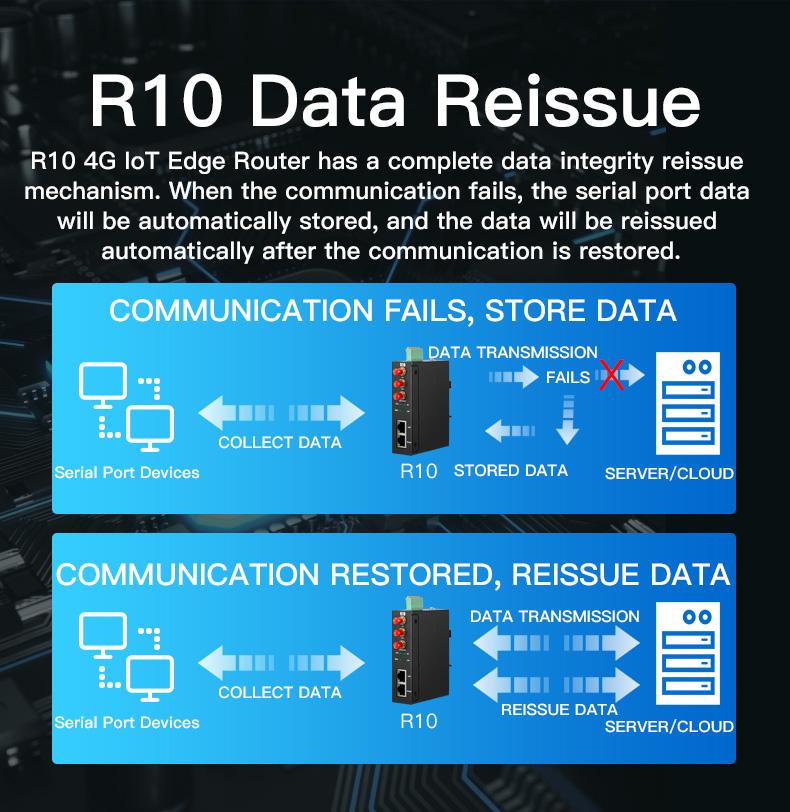

When the industrial router communication fails, the data will be automatically restored and retransmit when communication restored.
