| Model: | - |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | Calibration Block , ASME Test Block |
| Price: |
US $200
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:13 Aug, 2023 |

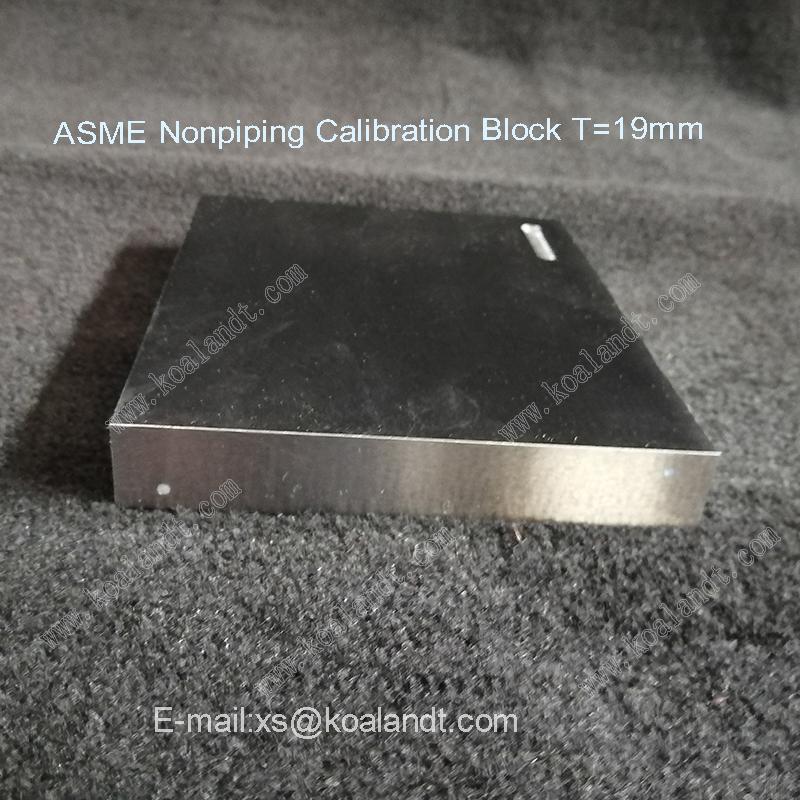

Used for establishment of primary reference responses for UT examination of welds.
Block contains three side-drilled holes at 38mm deep minimum at 2.5mm diameter. Hole locations through the thickness are ¼, ½, and ¾T. Also contains two notches measuring 2%T deep x 6.4mm max wide x 25mm long min. In accordance with ASME Sec V Art. 4 Fig. T-434.2.1.
Dimensions: 19.0 mm x 120.0 mm x 150.0 mm
· Material: Carbon steel,Stainless steel
xs@koalandt.com
| Payment Terms: | T/T |
|---|---|
