With more than 18 years experiences of designing and developing optical fiber solutions,and first-class fabricating workmanship from Japan,3V TECHNOLOGY is a professional world-service manufacturer,who can support customized requirements.
We specialize in:

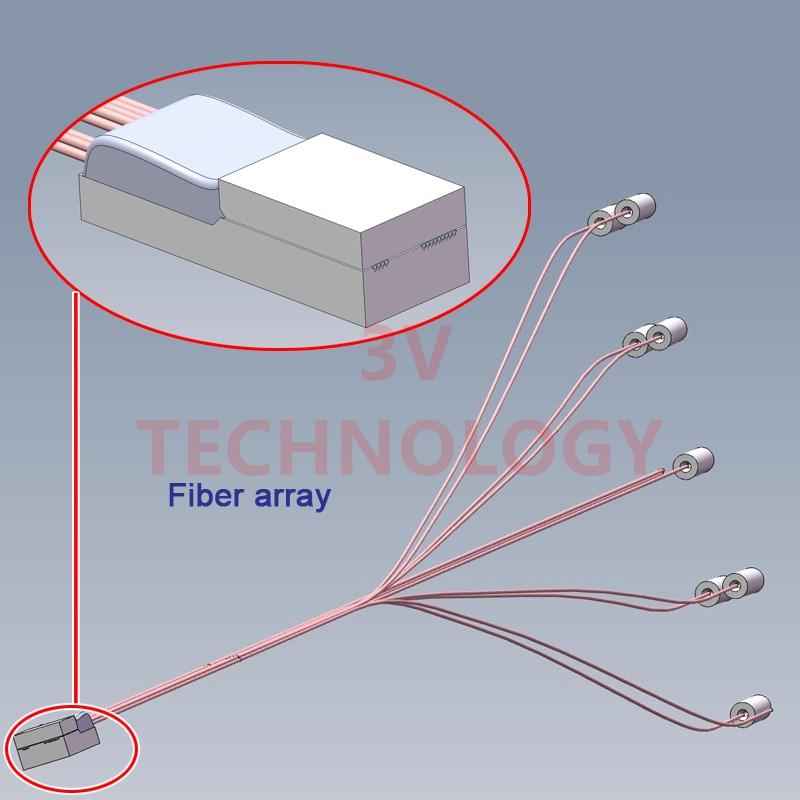

Standard single-mode SM fiber array
Custom Multi-mode MM fiber array

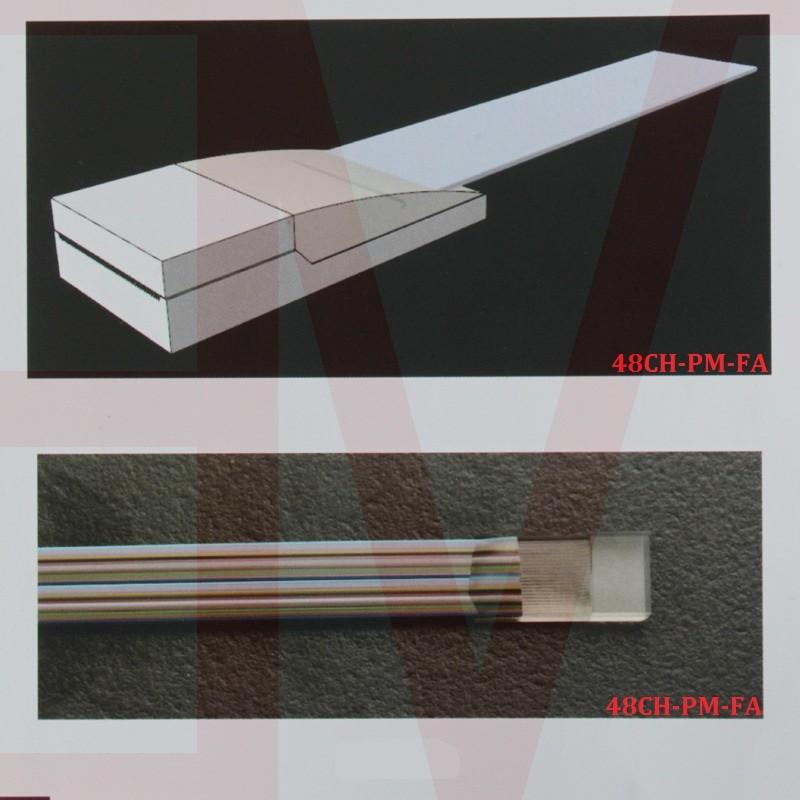

Polarization Maintaining PM fiber array
Custom SM+MM mixed fiber array
Custom PM+SM mixed fiber array
42.5°angle polished fiber array
45°angle polished fiber array

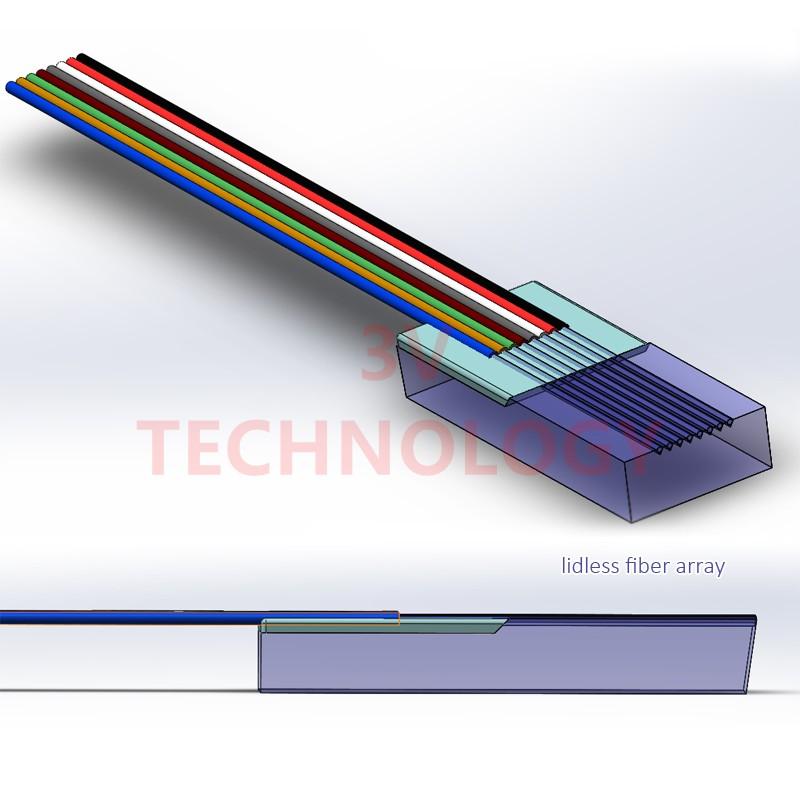

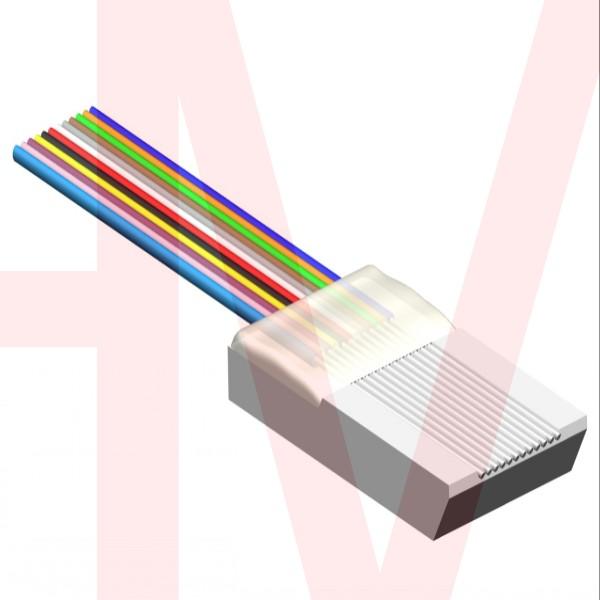

Custom lidless fiber array
Custom Miniature fiber array
MFD conversion fiber array
lensed fiber array

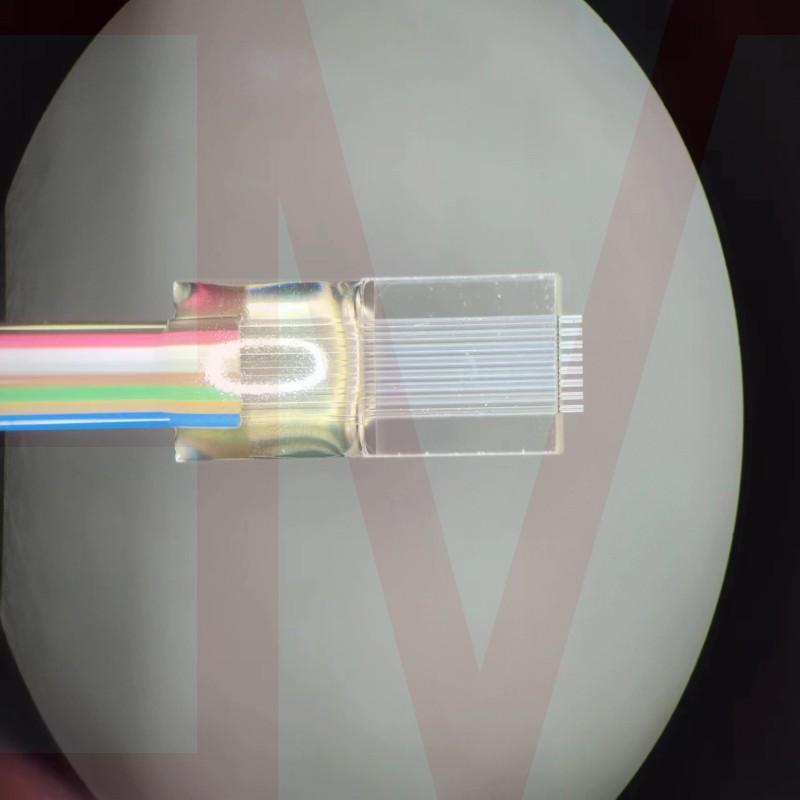

fiber-protruding fiber array,

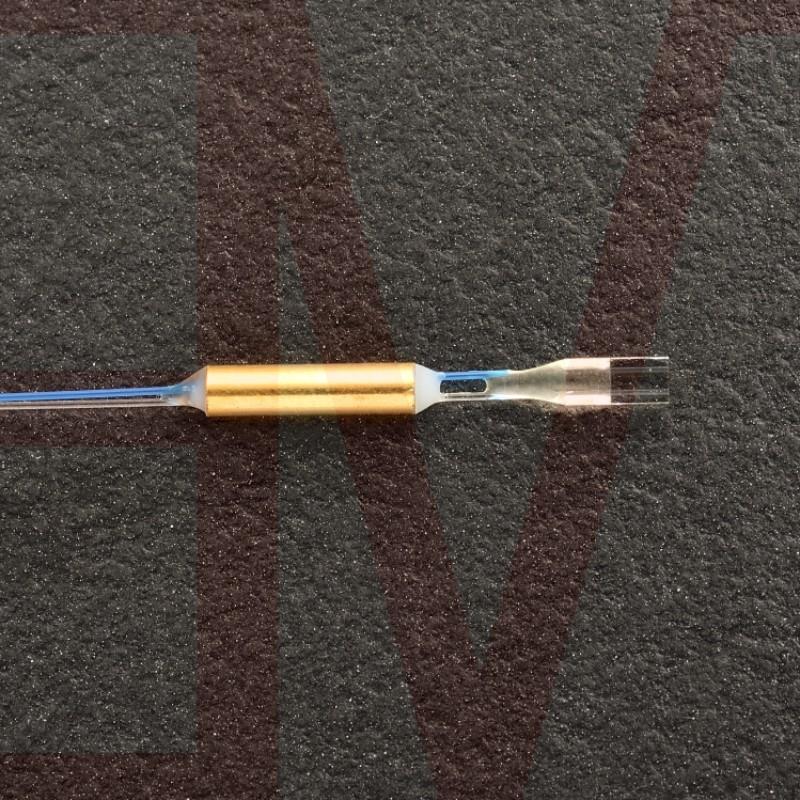

hermetically sealed fiber array

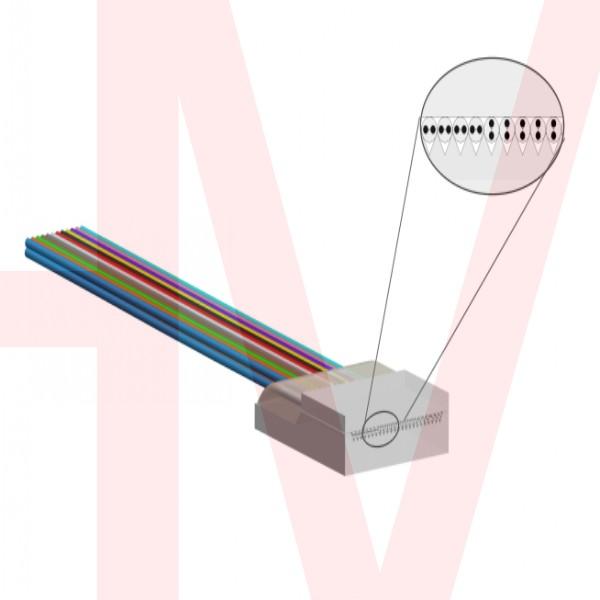

2-dimensional（2D） fiber array
and even other customized fiber array with special pitch,special fiber,special channel.
Features:
1.Excellent fiber core position accuracy
2.Telcordia/Rohs compliant ,tested to 5000 hours

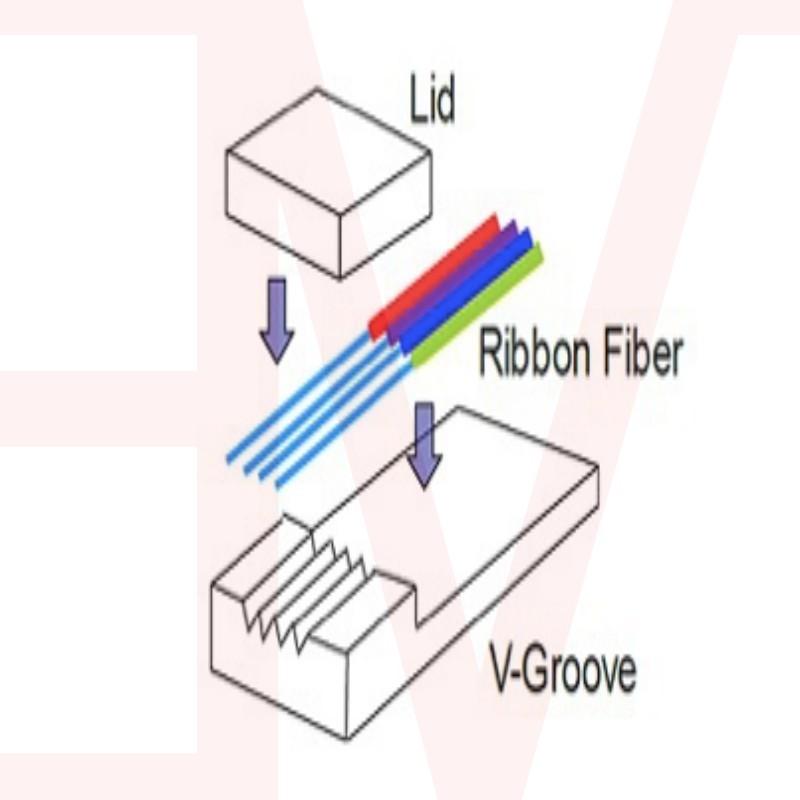

3.Glass V-groove substrate and lid for effective UV curing .
4.Custom design flexibility ,V-groove created in-house
5.Hermetically sealed package with metalized fiber available
6.AR/Hi-reflection coating available.
Custom Parameters：
Material(v-groove): Quatz,Borosilicate,Silicon or customize

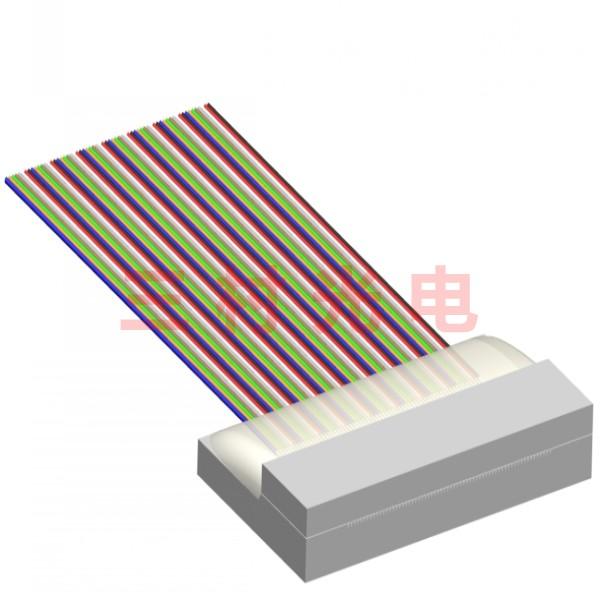

Channel Numbers: 1CH,2CH,4CH,6CH,8CH,12CH,16CH,24CH,32CH,48CH,64CH,or customize
Core Spacing: 127um,250nm or customize(tolerence±0.5um)
Endface Angel Polished: 0, 8, -8(±0.2)
Fiber Type:PM/SM/MM or customize
Fiber Length: 0.2m,0.5m,1m,2m,or customize
Optional Connectors:LC,FC(UPC or APC),SMA,D80 or customize
We can support to produce for customized order based on provided sample/drawing
