9 Cores (3×3) Glass Ferrule

Model:round
Brand:3V-TECH
Origin:Made In China
Category:Electronics & Electricity / Telecommunication & Broadcasting / Other Communication Equipment
Label:glass ferrule , fiber capillary , glass capillary
Price: US $1 / pcs
Min. Order:10000 pcs
Inquire Now Add to Basket

Member Information

Detail

SUZHOU 3V TECHNOLOGY CO.,LTD

Biz MemberJiang Su - China
Live Chat:
点击这里给我发消息Last Online:10 Aug, 2023

View all products. (173)

Product Description

3V TECHNOLOGY is a professional manufacturer with 18years experiences in producing optic fiber glass capillary,round-shape ferrule,square-shape ferrule,D-shape ferrule or others.single-core type;dual-core type;multi-core type;cylindrical/rectangular shape optional;customized fiber glass capillary is supportable.



Features:

-Etching process for taper hole

-Good consistency of taper hole

-Good reliability and stable performance in harsh environment

-High chemical stability

-Machinable high-precision components



Application Field:

optical communications, sensing, lasing,medical devices and other industries.



Technical Parameters:



Material Schott BF33(Borosilicate) or Ceramic(zirconia)
O.D/Shape

O-Type:0.5mm,0.9mm,0.99mm1.0mm,1.8mm,2.5mm(±0.005mm)

Square-Type:1.25mm,1.4mm,1.5mm,2.0mm,2.5mm,3.0mm(±0.05mm)

D-Type:D0.9,D1.25,D2.2(±0.05mm)

We support customized order.
I.D

O-Type:（Φ0.5mm~2.5mm）±0.001mm

Square-Type: 0.127±0.001mm

D-Type: 0.127±0.001mm

We support customized order.
Length 7±0.1mm or customize
Lead L1.5±1mm;W0.75±0.25mm or customize



Payment Terms:TT

Product Image

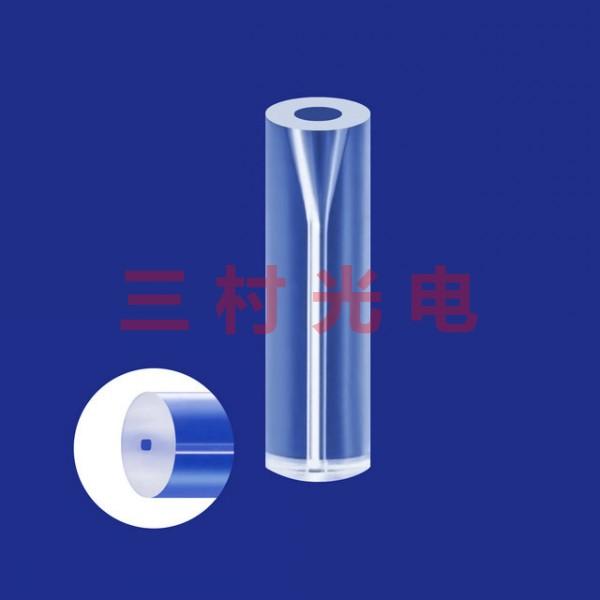

9 Cores (3×3) Glass Ferrule 1
Img 1

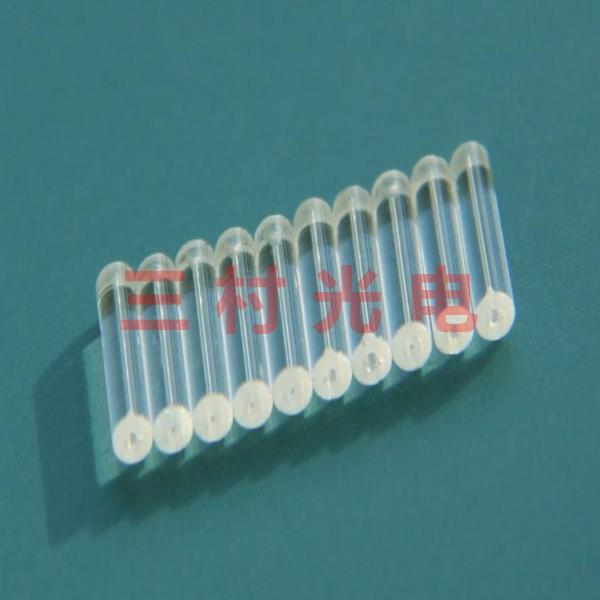

9 Cores (3×3) Glass Ferrule 2
Img 2

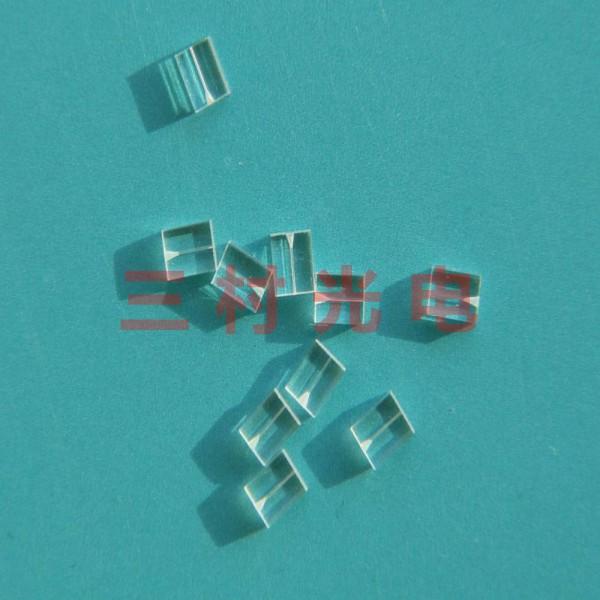

9 Cores (3×3) Glass Ferrule 3
Img 3

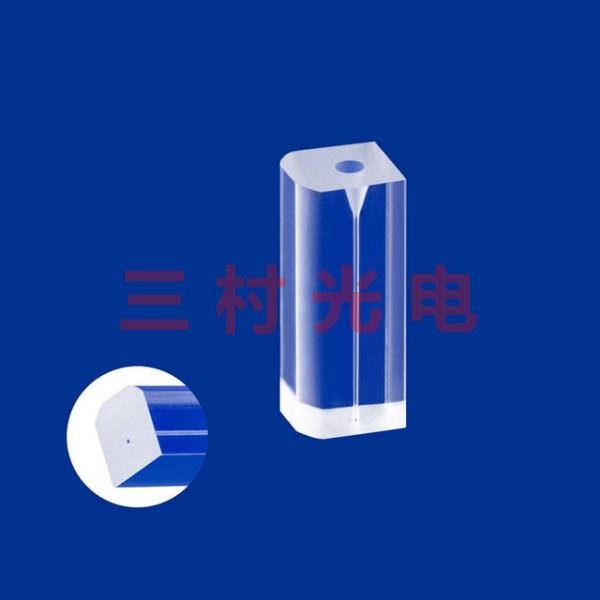

9 Cores (3×3) Glass Ferrule 4
Img 4

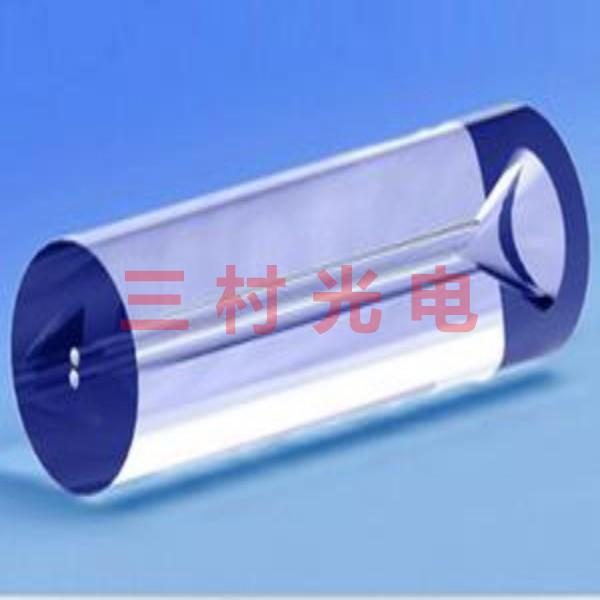

9 Cores (3×3) Glass Ferrule 5
Img 5

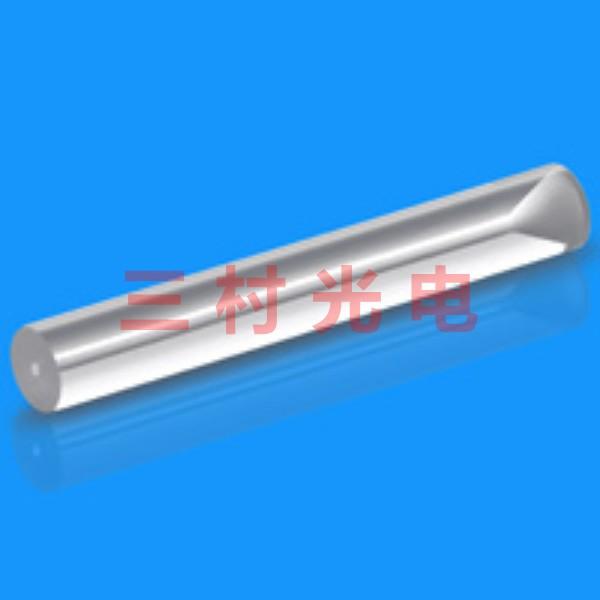

9 Cores (3×3) Glass Ferrule 6
Img 6

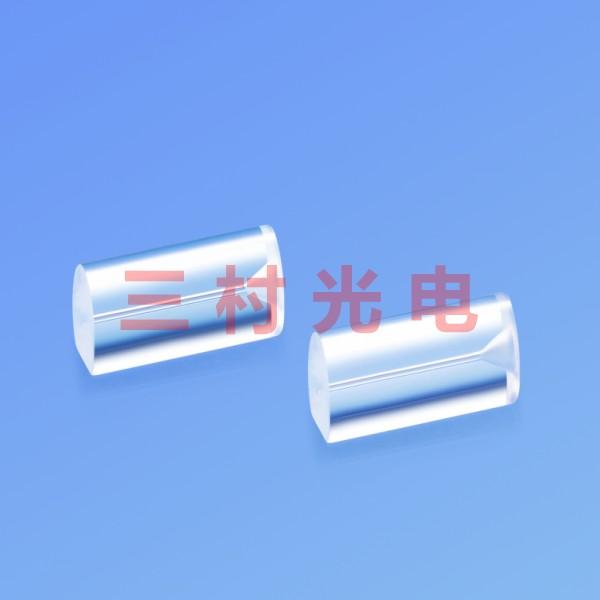

9 Cores (3×3) Glass Ferrule 7
