HIGH-SPEED COPPER ENGRAVING AND MILLING MACHINE SERIES

Model:HMTG600
Brand:HMW
Origin:Made In China
Category:Industrial Supplies / Machinery / Machine Tool
Label:COPPER ENGRAVING , COPPER ENGRAVING , COPPER ENGRAVING
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

HMWTECH CO.,LTD

Biz MemberJiang Xi - China
Live Chat:
Last Online:09 Jul, 2024

Product Description

HIGH-SPEED COPPER ENGRAVING AND MILLING MACHINE SERIES

The high-speed copper milling machine has undergone multiple optimization and improvement of the drilling and tapping structure, which can greatly improve the copper quality. The carving and milling machine adopts a gantry structure, which has the characteristics of heavy bed weight and stable movement; The spindle is equipped with a 24000rpm electric spindle as standard, and a 12T industrial tool magazine is optional

The design of high-speed ceramic spindle bearings ensures very high surface smoothness and accuracy of the machined workpiece

The use of Taiwan made P-grade ball screws and C3 grade linear slide rails for three axes improves the stability and service life of the machine tool.



project

unit

HMTG600

X/Y/Z axis travel

mm

600/420/330

Distance from spindle end to workbench

mm

150-480

Workbench area (length x width)

mm

720x400

Permissible load

kg

350

Spindle taper hole

No.

BT30

Maximum spindle speed

R/min

20000

Spindle motor power

kw

5.5

XY billion axis fast moving speed

m/min

30/30/30

Maximum chip speed

mm/min

8000

Number of tools

T

16/21

positioning accuracy

mm

±0.005/300

Repetitive positioning accuracy

mm

±0.003

Machine weight

kg

3800

External dimensions of machine dimple handle support (length/width/height)

mm

1900/2400/2700

Control system



FANUC OI-ME PLUS


Product Image

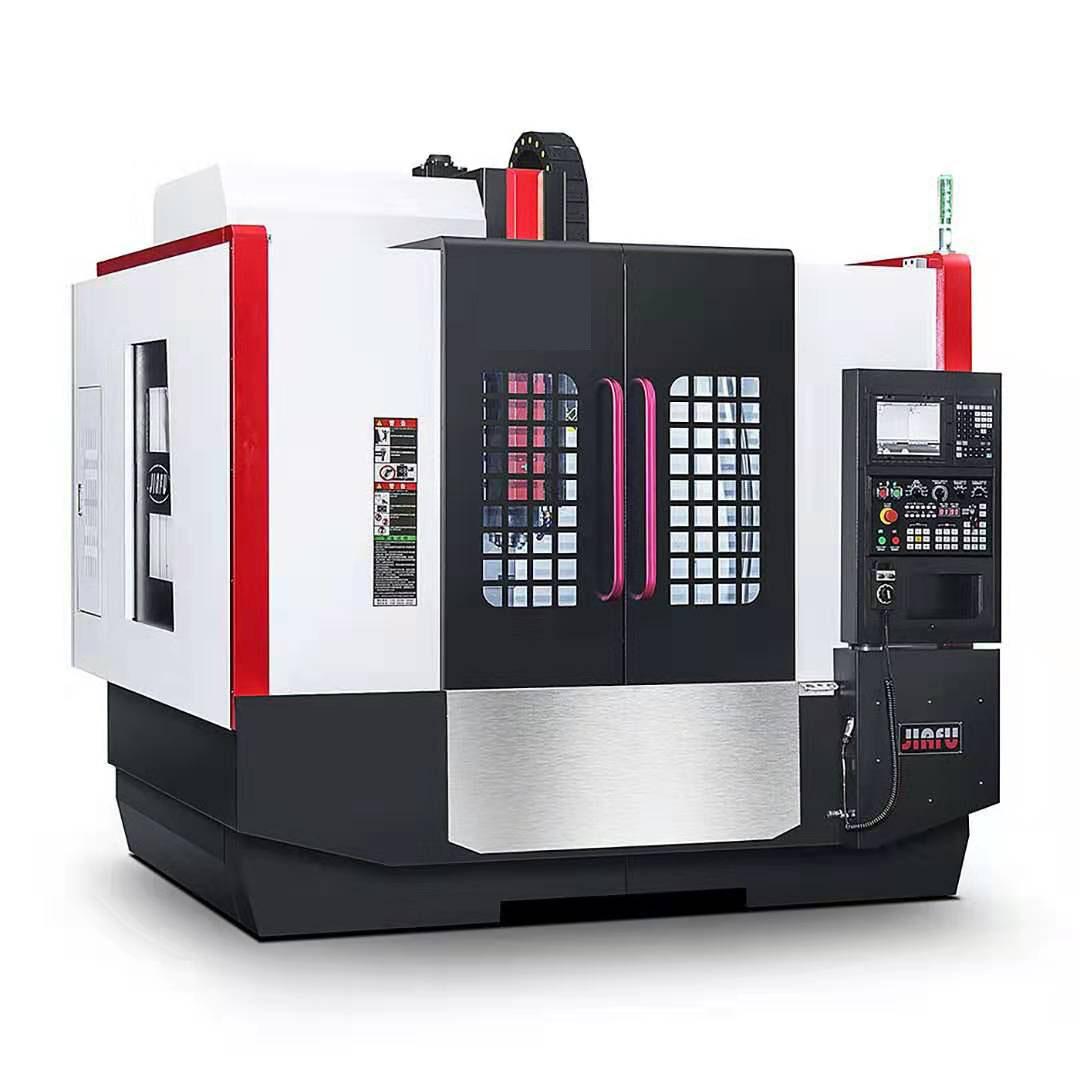

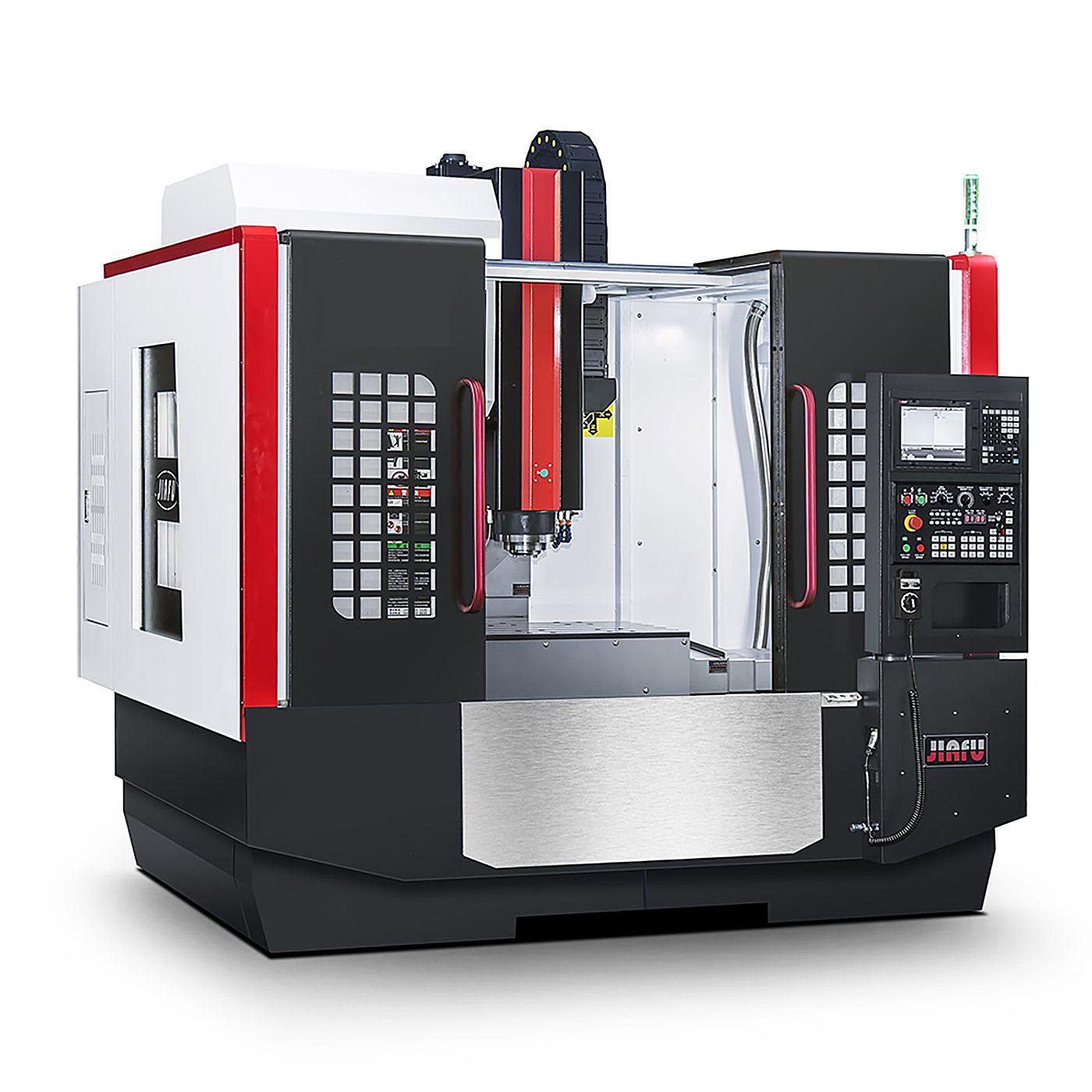

HIGH-SPEED COPPER ENGRAVING AND MILLING MACHINE SERIES 1
Img 1

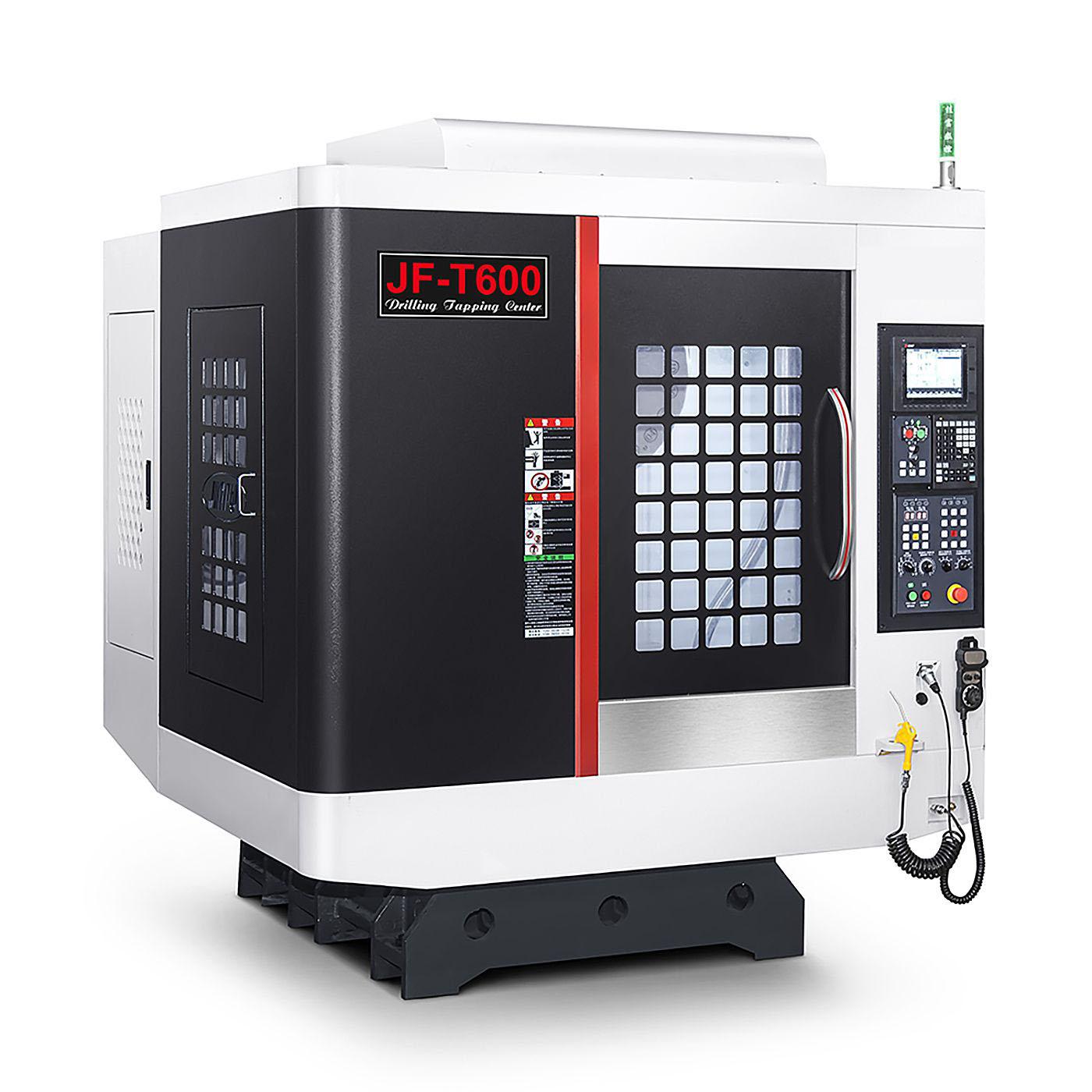

HIGH-SPEED COPPER ENGRAVING AND MILLING MACHINE SERIES 2
Img 2

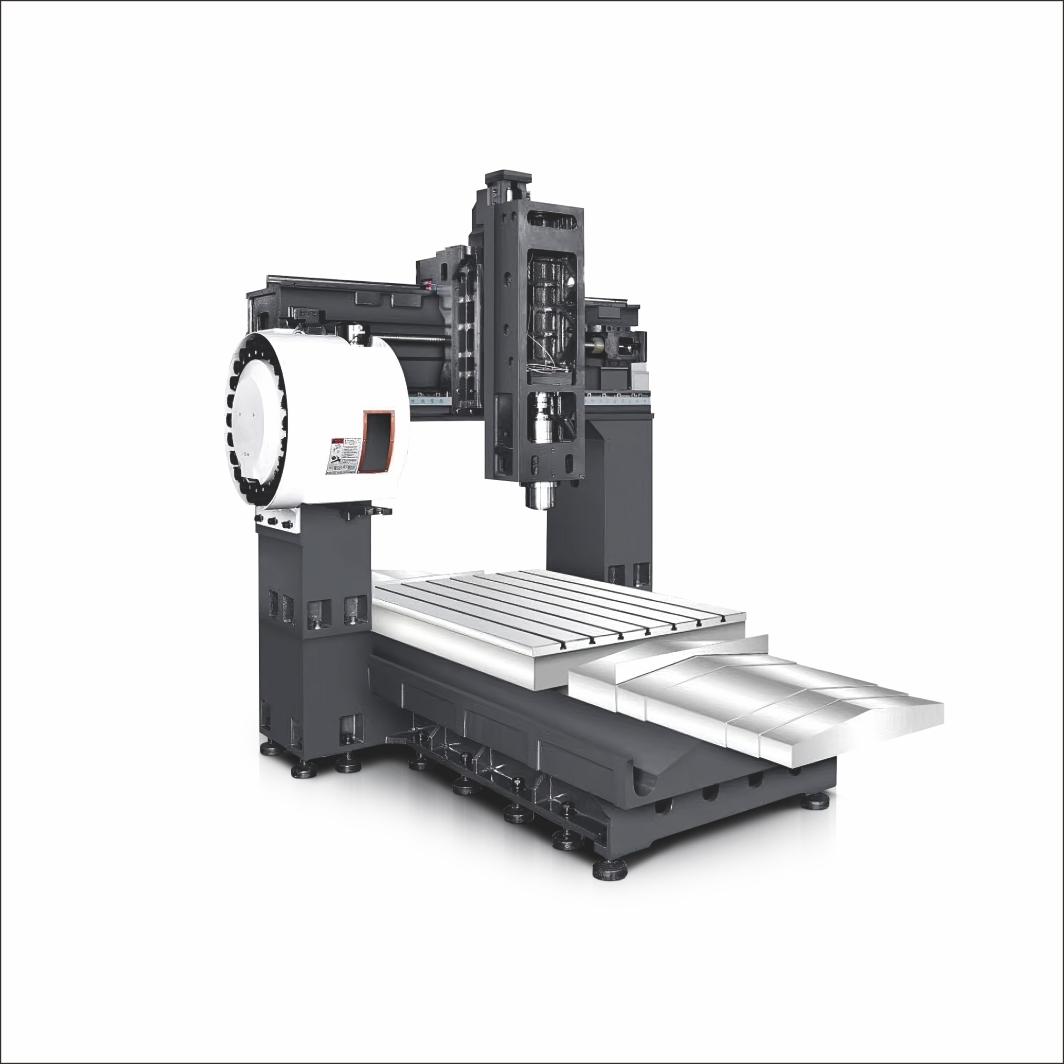

HIGH-SPEED COPPER ENGRAVING AND MILLING MACHINE SERIES 3
Img 3

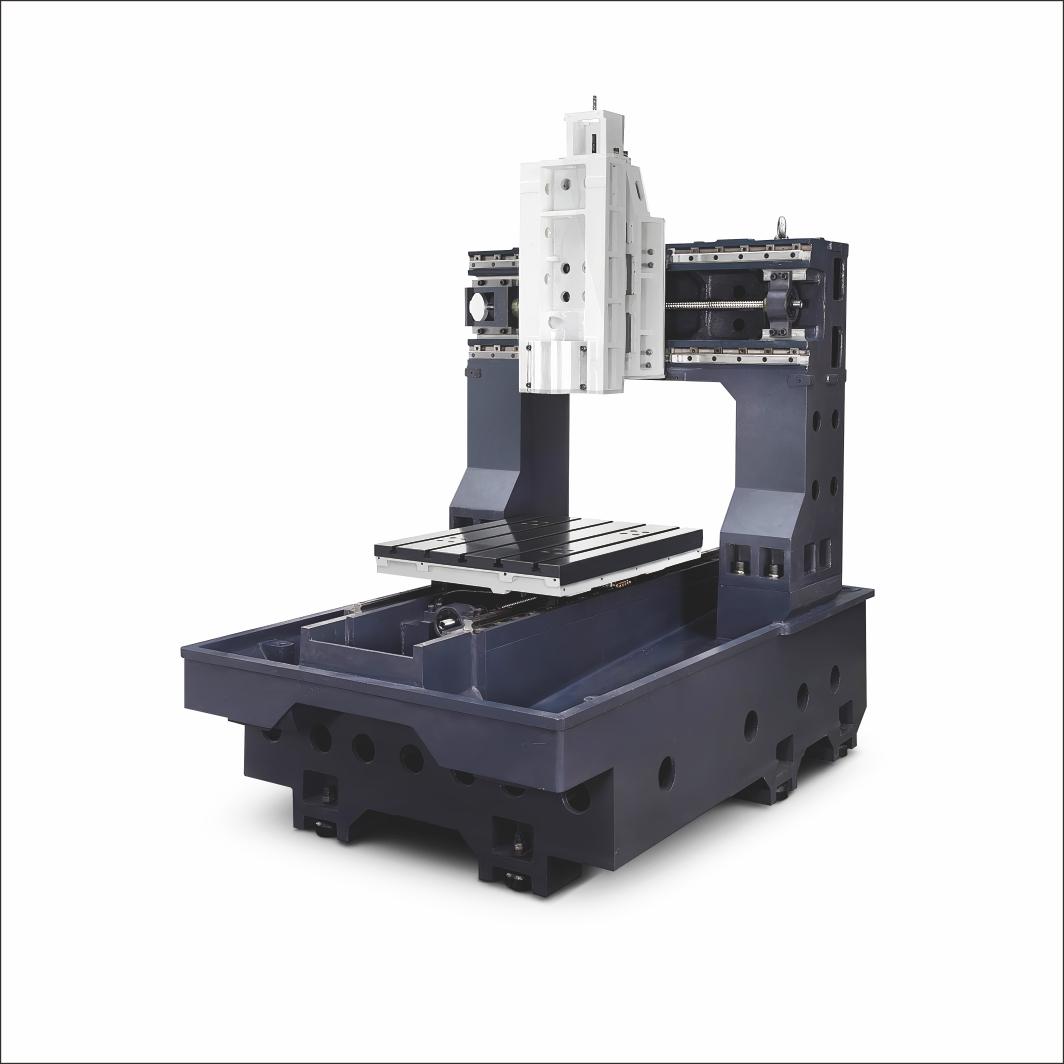

HIGH-SPEED COPPER ENGRAVING AND MILLING MACHINE SERIES 4
Img 4

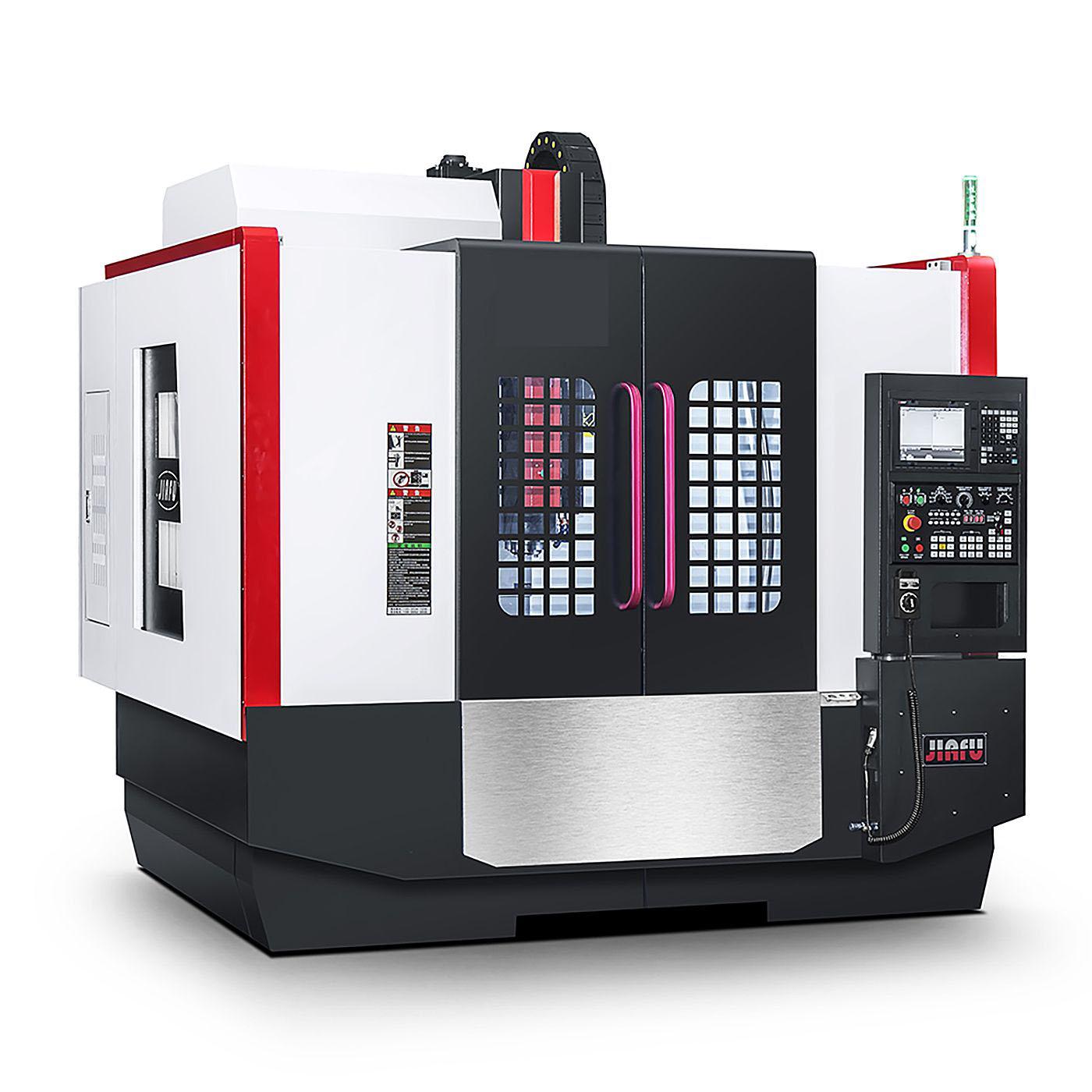

HIGH-SPEED COPPER ENGRAVING AND MILLING MACHINE SERIES 5
Img 5

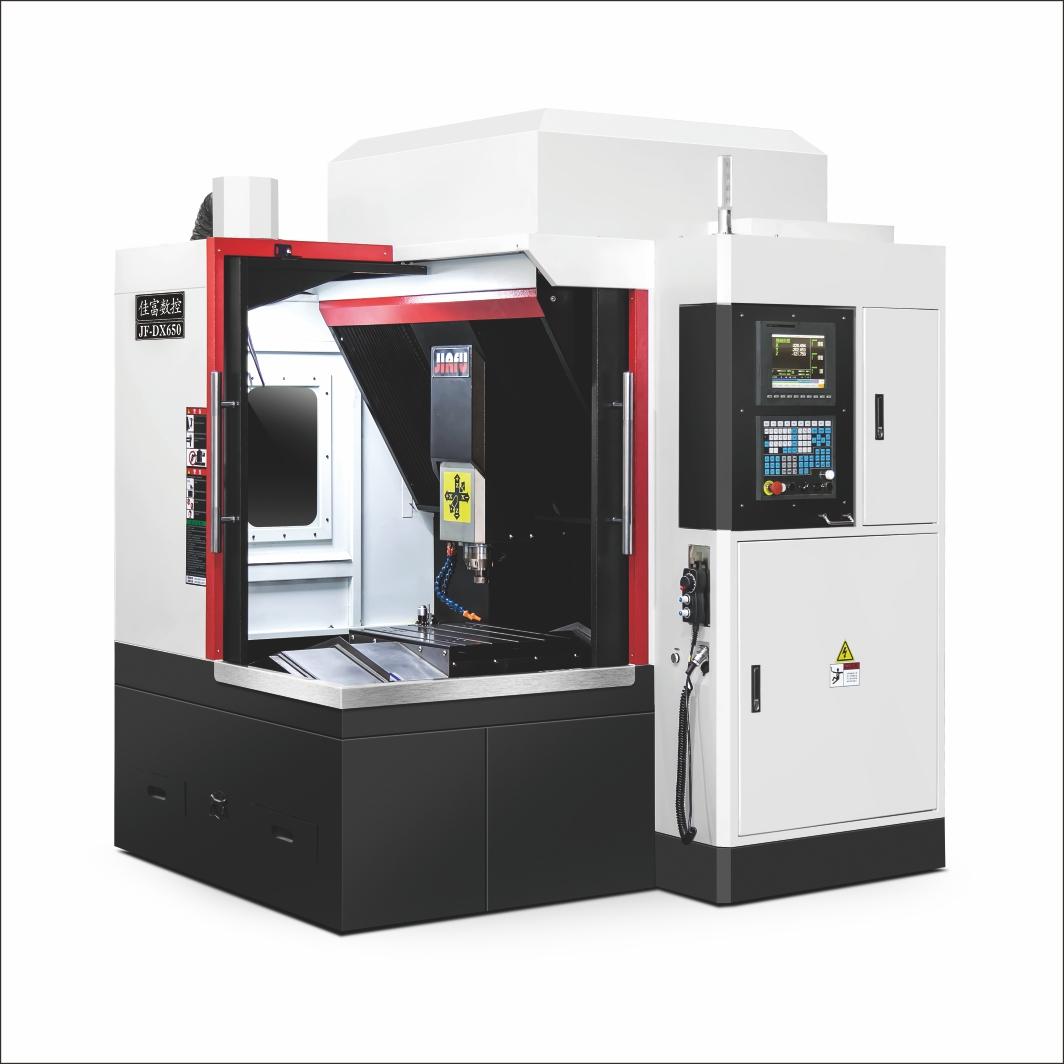

HIGH-SPEED COPPER ENGRAVING AND MILLING MACHINE SERIES 6
Img 6

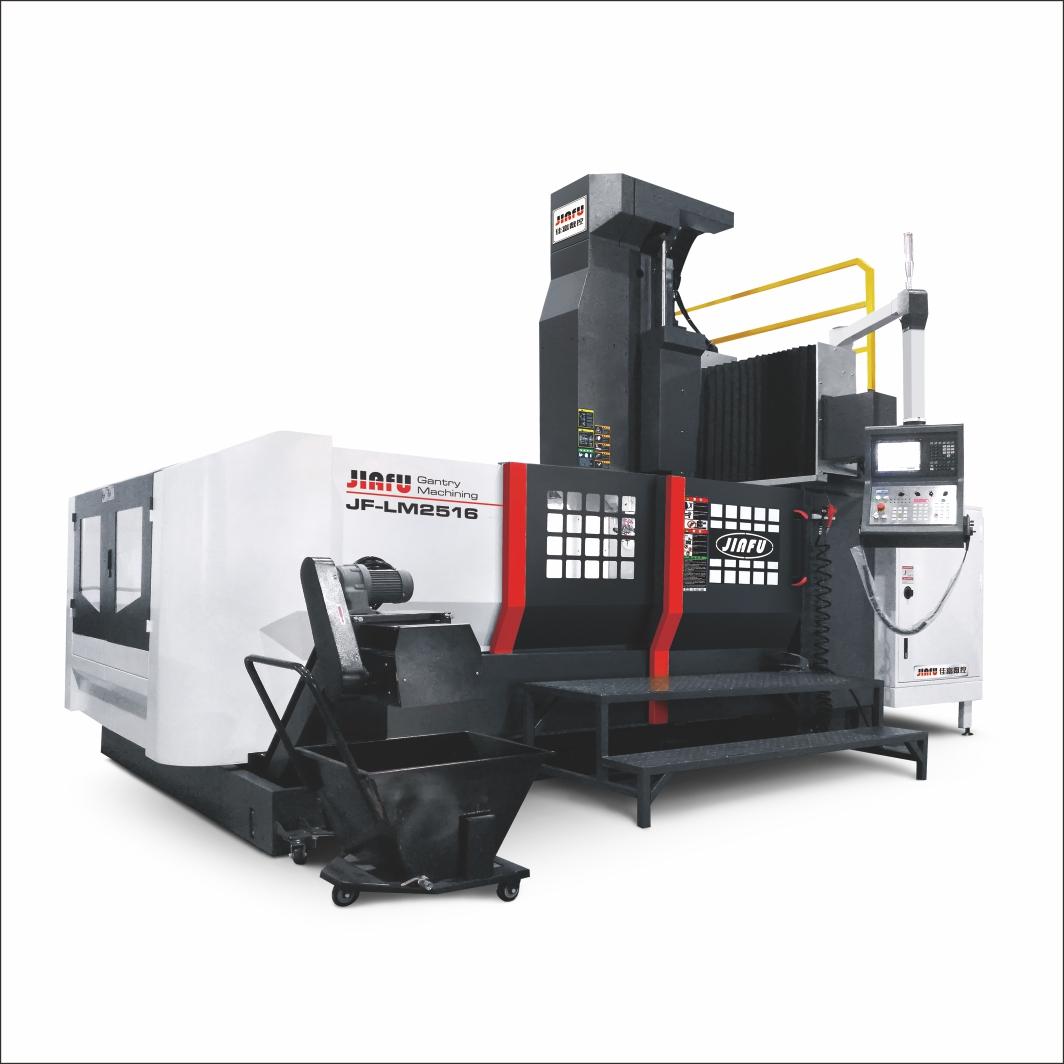

HIGH-SPEED COPPER ENGRAVING AND MILLING MACHINE SERIES 7
Img 7

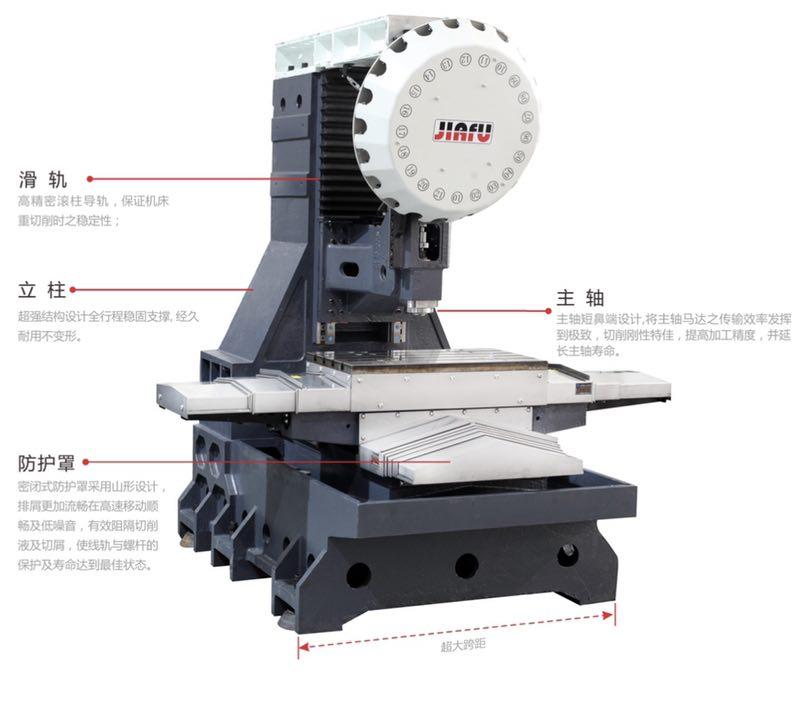

HIGH-SPEED COPPER ENGRAVING AND MILLING MACHINE SERIES 8
Img 8
HIGH-SPEED COPPER ENGRAVING AND MILLING MACHINE SERIES 9
Img 9
HIGH-SPEED COPPER ENGRAVING AND MILLING MACHINE SERIES 10
Img 10
HIGH-SPEED COPPER ENGRAVING AND MILLING MACHINE SERIES 11
Img 11
HIGH-SPEED COPPER ENGRAVING AND MILLING MACHINE SERIES 12
Img 12
HIGH-SPEED COPPER ENGRAVING AND MILLING MACHINE SERIES 13
Img 13
HIGH-SPEED COPPER ENGRAVING AND MILLING MACHINE SERIES 14
Img 14
