HWC series all-in-one industrial computer is a kind of fully enclosed industrial tablet computer,

IP65 Capacitive-Touch All-in-one Industrial Computer -10.4 inch (Order number: HMC104)
IP65 Capacitive-Touch All-in-one Industrial Computer -12.1 inch (Order number: HMC121)
IP65 Capacitive-Touch All-in-one Industrial Computer -15.0 inch (Order number: HMC150)
IP65 Capacitive-Touch All-in-one Industrial Computer -17.0 inch (Order number: HMC170)

the motherboard adopts modular design, equipped with Intel Celeron, Core series low-power high-performance CPU,
SUPPORT WINDOWS AND LINIX SYSTEM, FRONT PANEL TO IP65 PROTECTION LEVEL, FULLY ENCLOSED ALUMINUM ALLOY BODY, FANLESS HEAT DISSIPATION, SILENT AND ENERGY-SAVING,

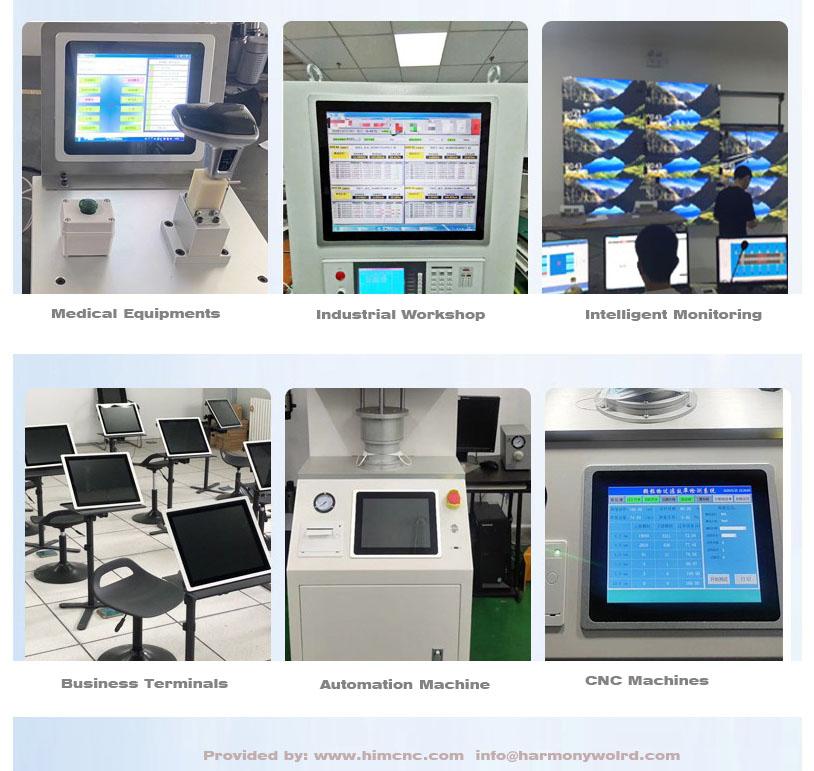

Adapt to a variety of industrial environments

Pure flat design, the front panel reaches IP65 protection level, which can effectively prevent water vapor and dust from entering the fuselage and prolong the service life.

Product features
1. Flat design, capacitance and resistance optional;
2. Multi-size, optional 10.4 inch, 12.1 inch, 15 inch, 17 inch, etc.;
3. Fully enclosed, fanless, aluminum alloy panel + back cover;
4. External SIM card slot, one-key code pulling power on, self-start, one-key restore;
5. Internal modular design, rich I/O interface;
6. Various configurations, optional Celeron J1900, Core I3/I5/I7, etc.;
Wide 7.9-36V power input.

Specifications
Touch mode: capacitive (default), optional: resistive
Installation method: embedded (default), optional: wall mounting, desktop type, hanging wall
Processor: Celeron J1900 (default), optional: Core i3, i5, i7
Memory: 4G (default), optional: 8G, 16G, 32G
Hard disk: 64G (default), optional: 128G, 256G, 512G, 1T solid-state; Optional dual hard disk: 1T mechanical, 2T mechanical
Network: wired (default), optional: WIFI, 4G, Bluetooth
Serial port: 2 RS232 (default, DB9 pin, including 1 optional RS485), optional: RS232/RS485 with 4 phoenix terminals
U-ports: 2 (default), optional: 6
Network ports: 2 (default)
GIPO: Optional 4 in 4 out
Display interface: 1 VGA, 1 HDMI, support dual display
Power input: 9-36V DC wide voltage
