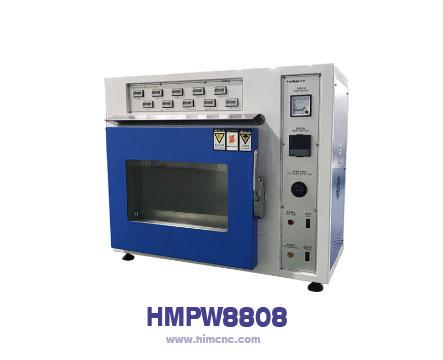

High temperature retention testing machine (ten sets)

purpose

This machine is dedicated to the adhesive tape holding test in high temperature environments. It simulates the time that the adhesive tape can hold under a specified load in a high temperature environment, and automatically counts the time that the adhesive tape can hold to confirm the aging of the adhesive tape. When the adhesive tape falls off the steel plate, the timer automatically retains the test time to evaluate the durability of the adhesive tape in high temperature environments.

Design standards: GB/T2792, GB/T4851, PSTC-7, CNS11887, CNS11888

characteristic

Due to the high temperature environment in which the adhesive tape is used, the outer box with temperature control function is used as the main body during the adhesion test, and a fixture for hanging the test piece is added. The temperature of the test can be adjusted according to actual needs. The special design of this machine makes the temperature of the entire test space more uniform.

Number of test groups: 10 groups, independent timer

Temperature: Normal temperature+5 ℃~200 ℃ (can be set arbitrarily)

Control mode: microcomputer automatic temperature calculation

Temperature resolution: 0.1 ℃

Temperature accuracy: ± 1 ℃

Weight: 1kg, 10 pieces

Timer: Electronic LCD display, automatic retention time, 999999,9 minutes, high-quality keys, no external power supply, 10 sets in total (imported from Japan with original packaging)

Weight: 1kg * 10 pieces

Test steel plate: SUS # 304 mirror steel plate

Connector: 10 pieces

Safety protection: all test pieces fall, the buzzer sounds (with switch), and the heat is automatically cut off

Machine structure: The inner liner is made of all stainless steel, and the outer shell is treated with advanced electrostatic powder spraying;

Machine size: 90 × fifty-five × 75cm

Machine weight: 80kg

Power supply: AC220V 50/60HZ
