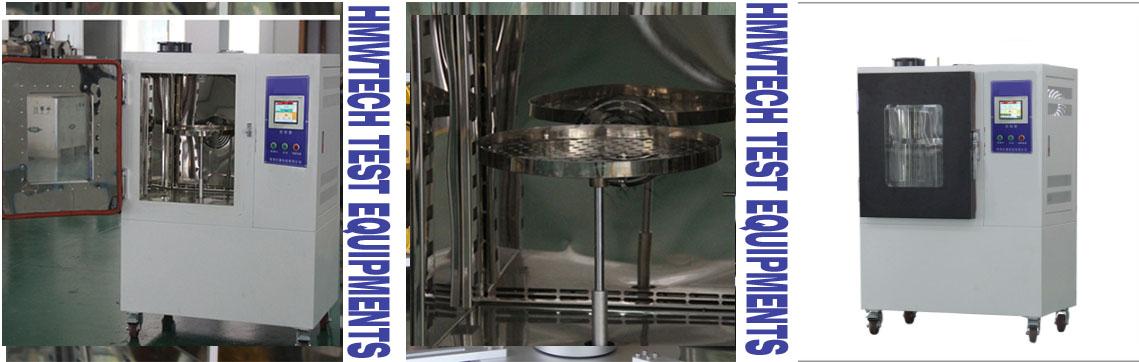

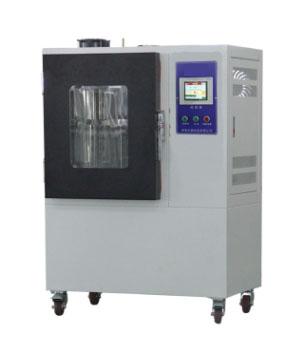

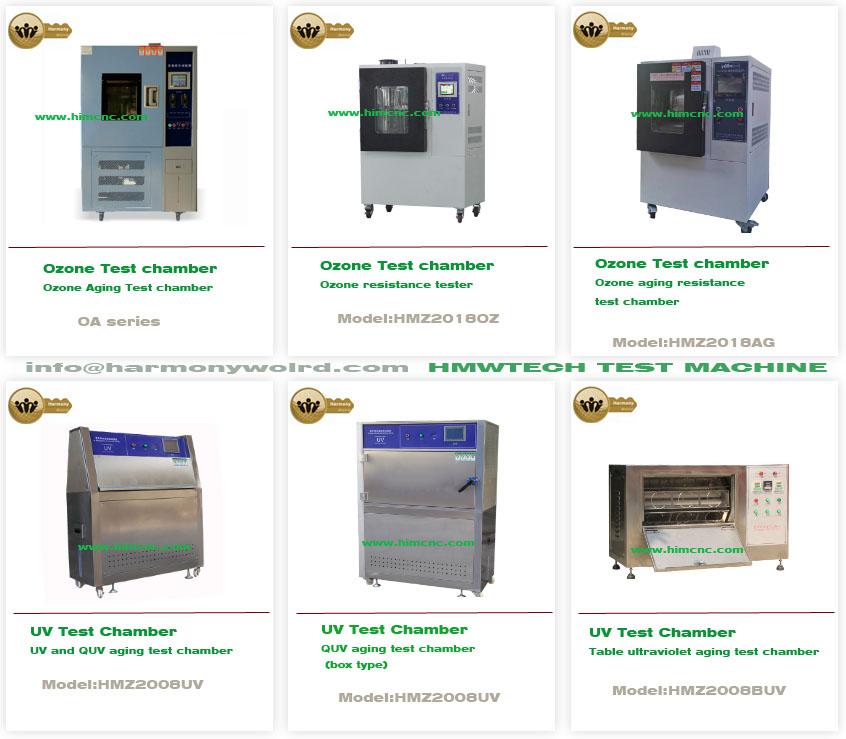

The ozone resistance testing machine is used to test the cracking resistance of rubber products under the ozone environment. The ozone resistance testing machine can control and adjust the concentration of ozone environment to determine the ozone resistance of test pieces.

The small content of ozone in the atmosphere is the main factor of rubber cracking. The ozone aging chamber simulates and strengthens the ozone conditions in the atmosphere, studies the action law of ozone on rubber, quickly identifies and evaluates the methods of rubber anti-ozone aging performance and anti-ozone agent protection efficiency, and takes effective anti-aging measures to improve the service life of rubber products.

Standard: JIS K 6259 ASTM1149 ASTM171 ISO1431 DIN53509 GB/T13642

GB 2951 (ozone resistance test method for wires and cables) and GB/T 7762-2003 (vulcanized rubber or thermoplastic rubber-ozone cracking resistance-dynamic tensile test). This equipment is not equipped with clamps.

Ozone resistance testing machine is widely used in measurement and quality inspection; Rubber and plastic; Automobile production; Wire and cable; packaging; Instruments and Apparatuses; medical apparatus and instruments; Civil nuclear energy; Civil aviation; Colleges and universities; Research Institute; It is used for quality inspection of rubber printing products such as commodity inspection arbitration and technical supervision departments.

Ozone concentration range

5~500pphm adjustable

Humidity range

The standard model does not contain humidity environment. If it needs to be increased, it needs to be discussed separately

Temperature

RT+10～70℃

Ozone generation mode

Ozone generator method

Air velocity in the box

over 2 feet/sec

Ozone concentration fluctuation

10%

Inner box size

four hundred × five hundred × 400mm (width * height * depth)

Inlet air flow

A.0-6 cfm； B. 10-20 cfh

Weight

80kg

Power Supply

1∮,AC220V,15A

enclosure

One set of rotating disc
