| Model: | SYT-04 |
|---|---|
| Brand: | SYT |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / New Energy / Solar Energy |
| Label: | alumimum brackets , solar brackets , color steel brackets |
| Price: |
¥22000
/ TON
|
| Min. Order: | 1 TON |
| Live Chat: | Last Online:09 Mar, 2023 |
|
Model NO. |
SYT-04 |
Size |
Customized |
|
Color |
Silver |
Accessories Material |
Al6005-T5,SUS304 |
|
Quality Assurance |
10 Years |
Transport Package |
Carton/Wooden Box/Pallet |
|
Specification |
5Kw, 20Kw, 100Kw, etc |
Trademark |
SYT |
|
Origin |
AnHui |
HS Code |
7610900000 |
|
Production Capacity |
|
|
|
Color Steel Tile Roof Solar PV Mounting Brackets
Solar PV bracket is a special bracket designed for placing, installing and fixing solar panels in solar PV system. The general materials are aluminum alloy, carbon steel and stainless steel.

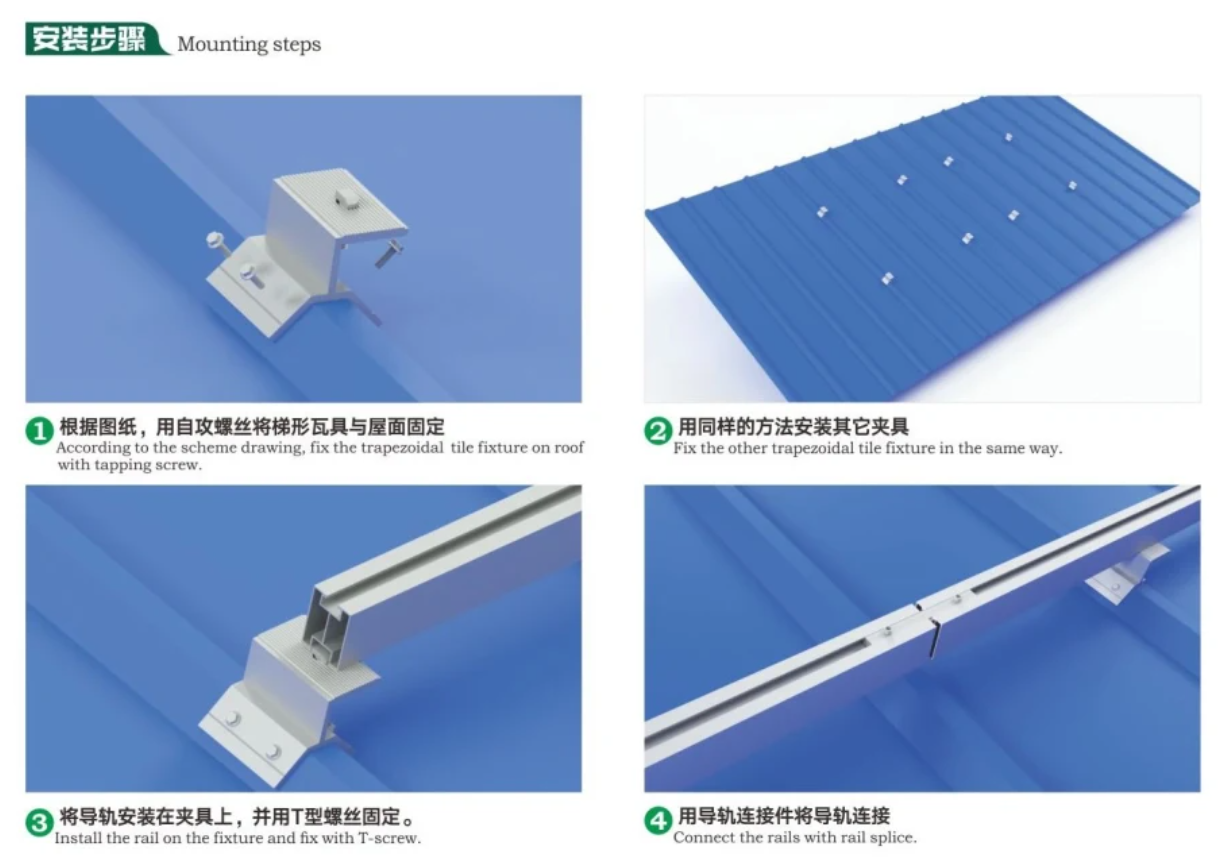

This solar PV bracket is suitable for color steel tile roofs, and the parts required for installation are specially designed for them, including mid clamp, end clamp, aluminum rail, rail connector, fixtures or L-foots,fasteners and various fixtures for different color steel tile roof types, etc.
The rail has good component compatibility and convenient installation, saving installation time and cost for users. Strict quality control ensures the performance and life of the product, and the system is compatible with most PV mounts on the market. The solar PV mounting system features no re-welding and drilling, 100% adjustable, and 100%
|
Production Name: |
Solar Panel Mounting Brackets |
|
Brand Name : |
SYT |
|
Place Of Origin: |
AnHui ,China |
|
Material: |
Aluminum 6005-T5/6063-T5 |
|
Color: |
Silver |
|
Wind Speed: |
60m/s |
|
Snow Load: |
1.4KN/m2 |
|
Max. Building Height: |
up to 65ft(22m), customized available |
|
Warranty: |
5 years |
|
Service life: |
25 years |
|
Payment: |
T/T, L/C,etc. |
|
Packing: |
In pallet, carton box or as your request |
|
Standard: |
ISO9001 SGS |
| Payment Terms: | T/T |
|---|---|
