| Model: | M110-JDL75D/180 |
|---|---|
| Brand: | LQGJ |
| Origin: | - |
| Category: | Industrial Supplies / Rubber & Plastics Machine |
| Label: | Low-smoke halogen-fr , Halogen-free cable m , Cable granulator |
| Price: |
¥650000
/ SETS
|
| Min. Order: | 1 SETS |
| Live Chat: | Last Online:27 Apr, 2023 |
Low-smoke halogen-free cable material granulator
Halogen-free cable material granulator
Flame retardant cable material granulator
The low smoke and halogen-free cable material granulator can produce low smoke and halogen-free cable material of PE system and low smoke and halogen-free cable material of EVA system;

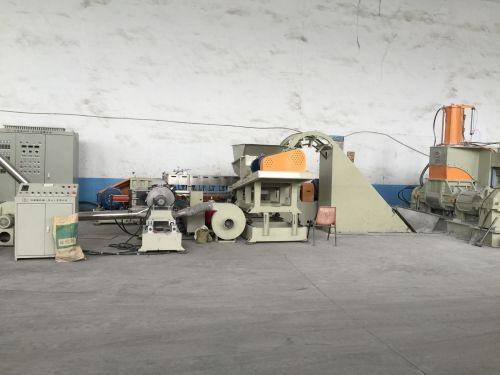

Production process: feeding system - internal mixer - forced feeder - double stage granulator - cooling and conveying - product homogenization - metering and weighing - pallet stacking
Main models: M75/JZSJ65B/150; M110/JZSJ75B/180, etc;
Internal mixer: 75L, 110L, etc
Capacity: 350-600 kg/h;
Length-diameter ratio of twin screw L/D: 36:1-40:1;
Length-diameter ratio of single screw L/D: 9:1
Main motor: 75KW/55KW-132KW/90KW;
Grain cutting method: air cooling, grinding and hot cutting
