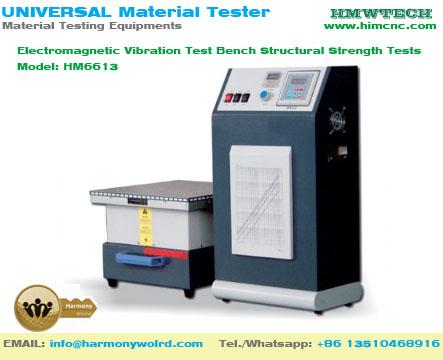

| Model: | HM6613 |
|---|---|
| Brand: | HarmonyWOLRD/OEM/ODM |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Test Bench |
| Label: | Vibration Test , Electromagnetic TEST , Strength Test |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:30 Mar, 2024 |
The electric vibration test series are widely used in industries such as national defense, aerospace, communications, electronics, automobiles, and home appliances. This type of equipment is used to detect early failures and simulate actual working conditions to assess structural strength tests. The product has a wide range of applications, wide application areas, and significant and reliable test results.
Features
1. Using the most advanced programmable technology, the program can be set, and the function of multi-sweeping can work at the same time
2. Imported frequency controller, digital control and display frequency, PID adjustment function, make the equipment work more stable and reliable
3. The control parameters are displayed synchronously in real time, without manual intervention. (Various control conditions can be monitored during operation)
4. Precision design and manufacture, one-piece vertical platform, beautiful appearance, ultra-quiet work
5. Four-point synchronous excitation, uniform table vibration
6. Stepless adjustment of amplitude, fixed frequency and sweep frequency operation functions to adapt to various test requirements of different industries
7. Increase the anti-interference circuit to solve the interference of strong electromagnetic field to the control circuit
8. Increase the working time setting device to make the test product meet the better test requirements
SPECIFICATION
|
Model |
HM6613V3 |
HM661370A |
|
Features |
Sine wave, frequency modulation, frequency sweep, time control |
|
|
Work table size |
450×450×46mm（L*H*W） |
550×550×46mm（L*H*W） |
|
Workbench size |
450×450×450mm（L*H*W） |
550×550×350mm（L*H*W） |
|
Control box size |
450×320×740mm（L*H*W） |
450×330×750mm（L*H*W） |
|
Maximum test load |
40kg |
60 kg |
|
Vibration direction |
vertical |
|
|
Vibration waveform |
Sine wave |
|
|
FM function |
Any frequency within the frequency range must be within (maximum acceleration <20g maximum amplitude <5mm) |
|
|
Magnetic field isolation function |
Magnesium alloy panel can completely isolate the magnetic field |
|
|
Sweep function |
(Upper frequency/lower frequency/time range) can be arbitrarily set the true standard to sweep back and forth |
|
|
Amplitude (adjustable range mmp-p): |
0 ～ 5mm |
|
|
Vibration frequency |
5～200HZ can be set 5～200HZ(may be set) |
1～200HZ can be set 1～200HZ(may be set) |
|
Precision |
Frequency can be displayed to 0.01Hz, precision 0.1Hz |
|
|
Time range |
0.01S~99.99H |
|
|
Power supply voltage (V): |
AC220/50 ±5% |
AC220/50 ±2% |
|
Vibration machine power |
2.2 KW |
|
