| Model: | TMF |
|---|---|
| Brand: | Kailong |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Air & Gas Flowmeter |
| Label: | - |
| Price: |
US $450
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:02 Nov, 2022 |
Thermal Gas Mass Flow Meter
1. Product introduction
Thermal gas mass flowmeter is designed based on the principle of thermal diffusion. The instrument uses constant temperature difference method to measure gas accurately.
Main Features:
1. With small volume,
2. High degree of digitization,
3. Easy installation,
4. Accurate measurement
2.Technical Specification Table
|
Thermal gas mass flow meter
|
|
|
|

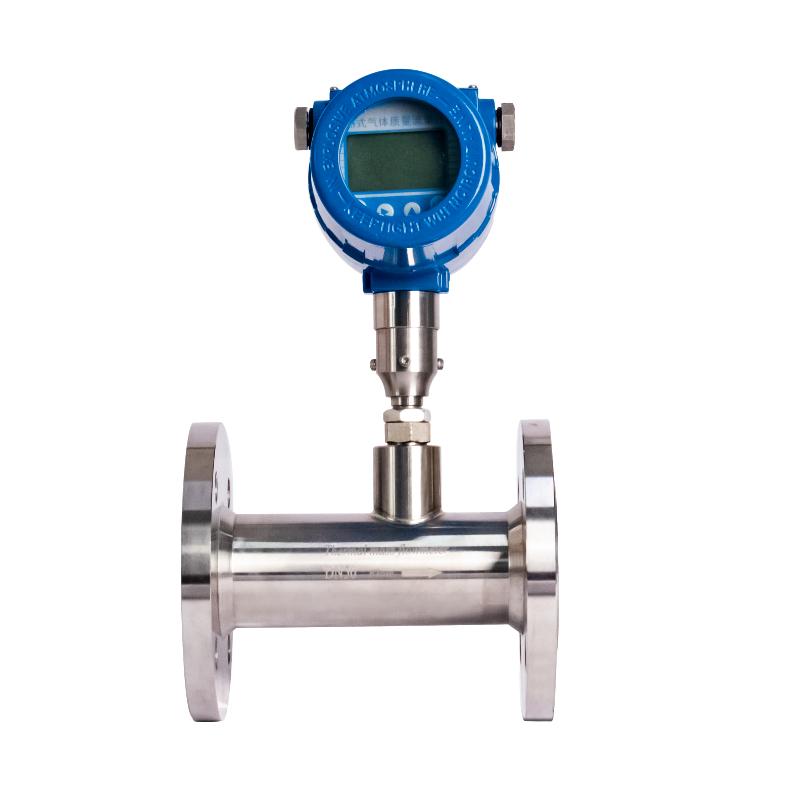

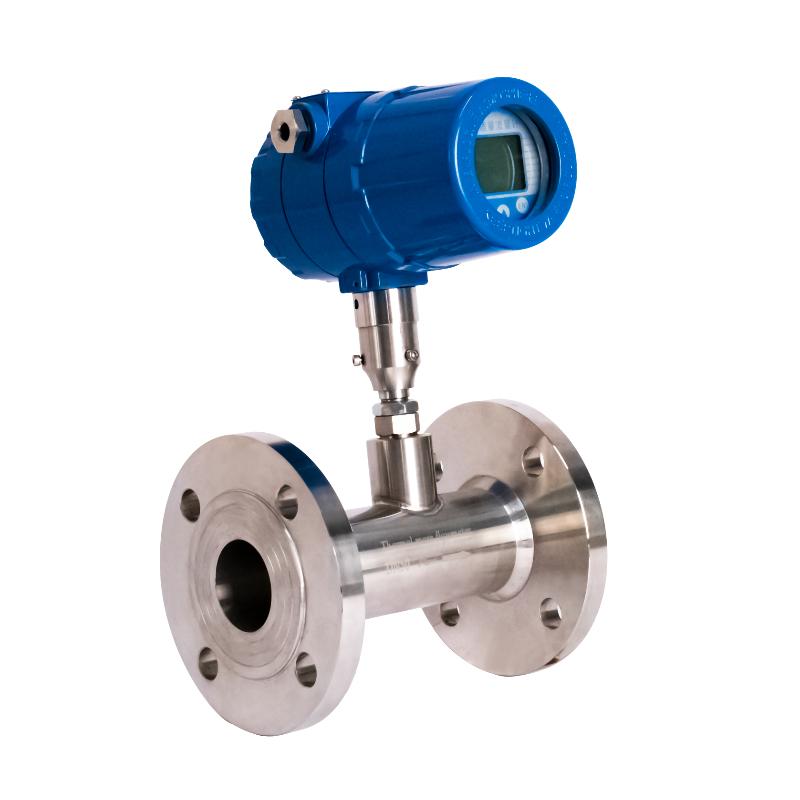

Flange type |

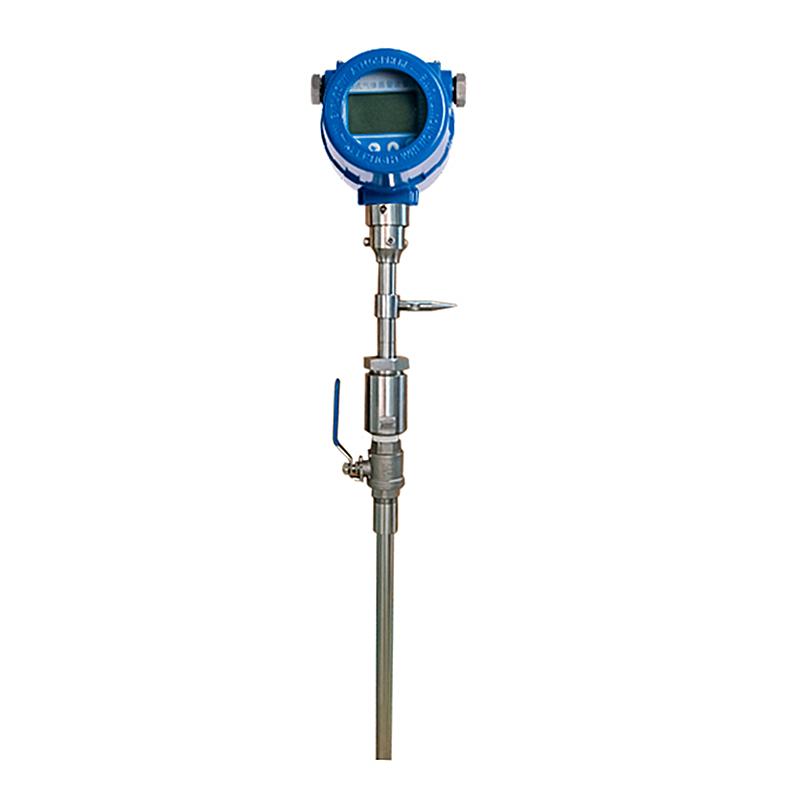

Insert type |
|
|
Material |
Stainless steel, Cast steel |
|
|
Display |
4 lines LCD display |
|
|
Accuracy |
±1% |
|
|
Measuring range |
All gases (except acetylene) |
|
|
Diameter (MM) |
DN10-100 (Flange type), DN125-1500 (Insert type) |
|
|
Flow rate |
0.1-100Nm/s |
|
|
Output |
Standard:4-20mA, Option: RS485/RS232 |
|
|
Press |
1.6Mpa, Option (2.5MPa, 4.0MPa, 6.4Mpa) |
|
|
Power |
Standard: 24VDC/1.5A, Option:220VAC |
|
|
Conditions of use
|
A. ambient temperature:-20 ~+150 ℃ B. medium temperature: 0 ~+200 ℃ C. relative humidity: 45-75% D. atmospheric pressure: 86 kpa-106 kpa |
|
|
Protection level |
IP65 |
|
3.Dimensions
Packaging & Shipping
Packing and shipping
Company Information
Factory Introduction
Tianjin kailong Instrument Technology Co. Ltd. is a company that integrates processing, production, sales and technical services. Now it has the ability to design, develop, detect and manufacture products. It is a comprehensive and diversified enterprise. The main products are Electromagnetic Flowmeter, Vortex Flowmeter, Turbine flow meter and so on. We will adhere to the spirit of development, strict and demanding, striving for the best, and set customer satisfaction as our eternal goal. We will give you best and competive price for you.
Welcome to inquiry!!!
| Payment Terms: | TT |
|---|---|
