Product Introduction

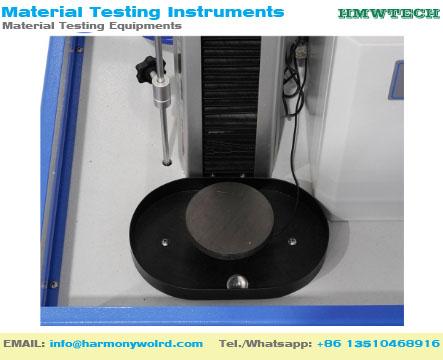

The foam falling ball impact energy testing machine is used to test the impact force of the falling object on the sample through a steel ball of a given diameter and quality at a specified height. It can also test the foam impact absorption test. The high-frequency acquisition system makes the machine safe, reliable and high in measurement accuracy.

SPECIFICATION

Falling distance of steel ball: 0-800mm (adjustable height)
Ball weight: customer specified
Sensor capacity: According to the customer's falling ball weight and height configuration
Height control: electric motor lift
Control method: Full computer control
Software acquisition frequency: 100K/S high frequency acquisition
Steel ball release: automatic release by electromagnet
Sensing device: Infrared fixed-point sensing center distance of falling ball Center point adjustment: moveable adjustment
Machine size: length 500mm*width 300mm*height 1400mm
Machine weight: 35kg
Operating voltage: 220V
