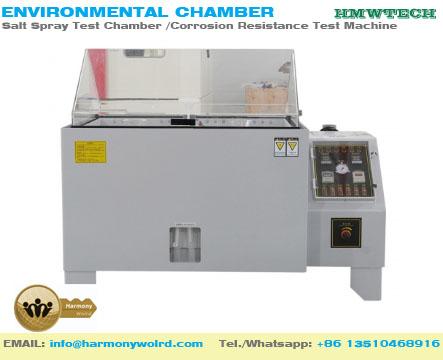

Economic Environmental Salt Spray Test/Testing Chamber for Corrosion Test

Model:HMCS270
Brand:HarmonyWOLRD/OEM/ODM
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Test Bench
Label:Salt Spray Test , Testing Chamber , Corrosion Test
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

HMWTECH CO.,LTD

Biz MemberJiang Xi - China
Last Online:13 Aug, 2024

View all products. (791)

Product Description

Test chamber made by PVC board, durable temperature up to 60°C;
Closures made by PVC Impact-resistant board;
Hidden supplementary reagent bottle with water level display, easy to clean and unbreakable;
Saturated air barrel made by SUS#304 material, high pressure-resistant, quality insulation ;
Plane indexing rack, angle adjustable.
Salt spray testing: test chamber  35°C±1°C, saturated air barrel 47°C±1°C
Corrosion test: test chamber  50°C±1°C, saturated air barrel 63°C±1°C
Two-stage adjustment air supply system
Rough adjustment: 2-2.5kg/cm² with oil water filtrate function
Precision adjustment: 1kg/cm² 1/4PT pressure
Take suck salt then flog, uniform atomization, none blocking crystallization, ensure continuous testing.
Adopted special glass nozzle, spray volume & angle can be adjustable
Adjustable spray volume: 1 - 2 ml 80cm²/hr(16 hours average amount)
Directly heating method, speed temperature rising, OFF/OFF auto switch, titanium heating tube.
Test chamber temperature range 0 - 99.9°C, LCD display with P.I.D, control error ± 0.3°C
Saturated air barrel temperature range 0 - 99.9°C, LCD display with P.I.D, control error ± 0.3°C
Heating tank liquid expansion safety temperature range 0-120°C
Saturated air barrel liquid expansion safety temperature control 0-120°C
Digital timer from 0.1s-9990hr
Automatic water adds supplementary system, will be adding when in low water level automatically.

​

Model HMCS270
Temperature range RT+ 5°C ~ 55°C
Temperature uniformity 2°C
Temperature fluctuation ±0.5
Salt spray sedimentation rate 1~2ml/80cm²•h
Inner size (L×W×H) 90x60x50cm
External size(cm)(L×W×H) 141x88x128cm

Payment Terms:TT / LC
