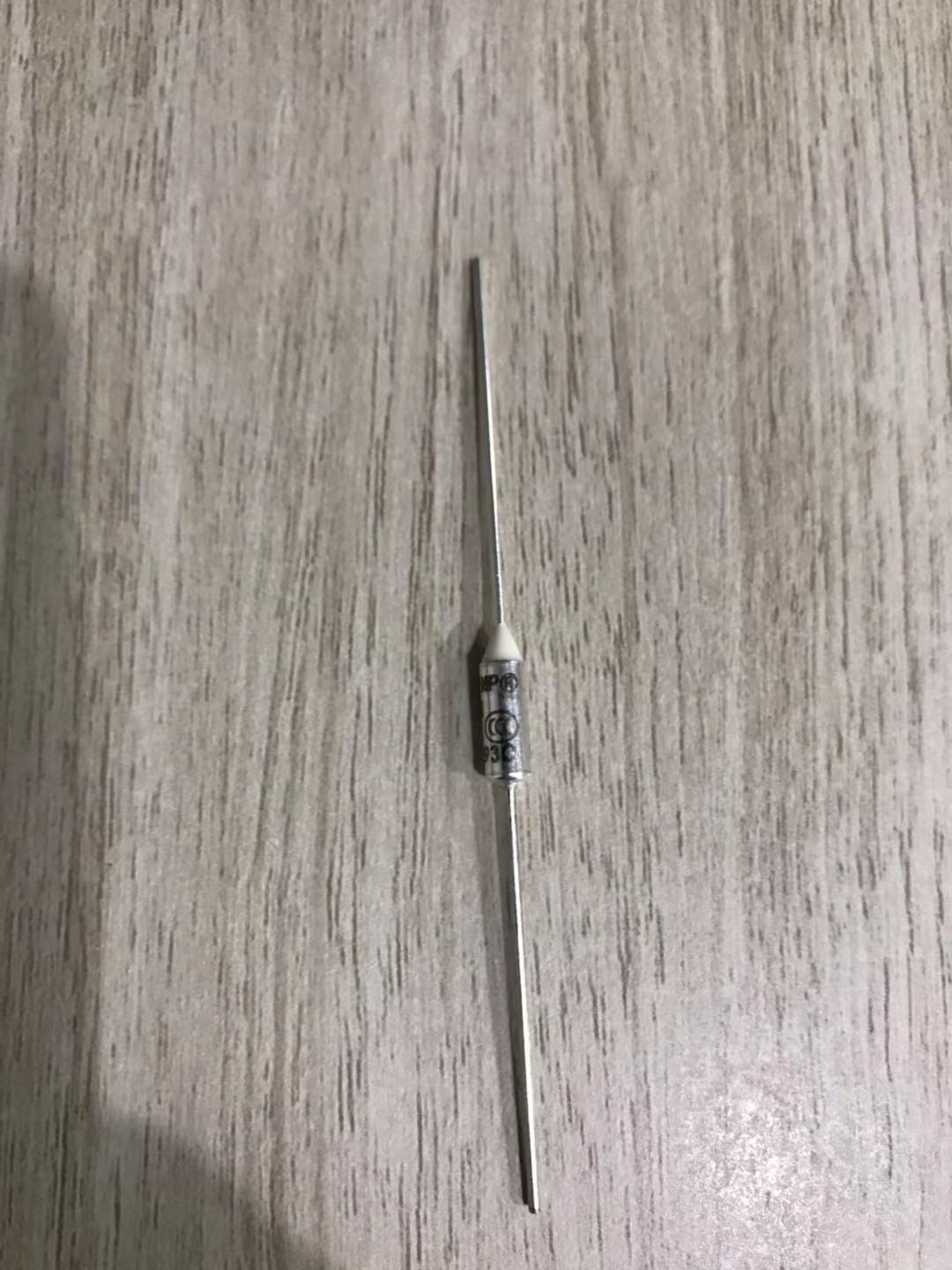

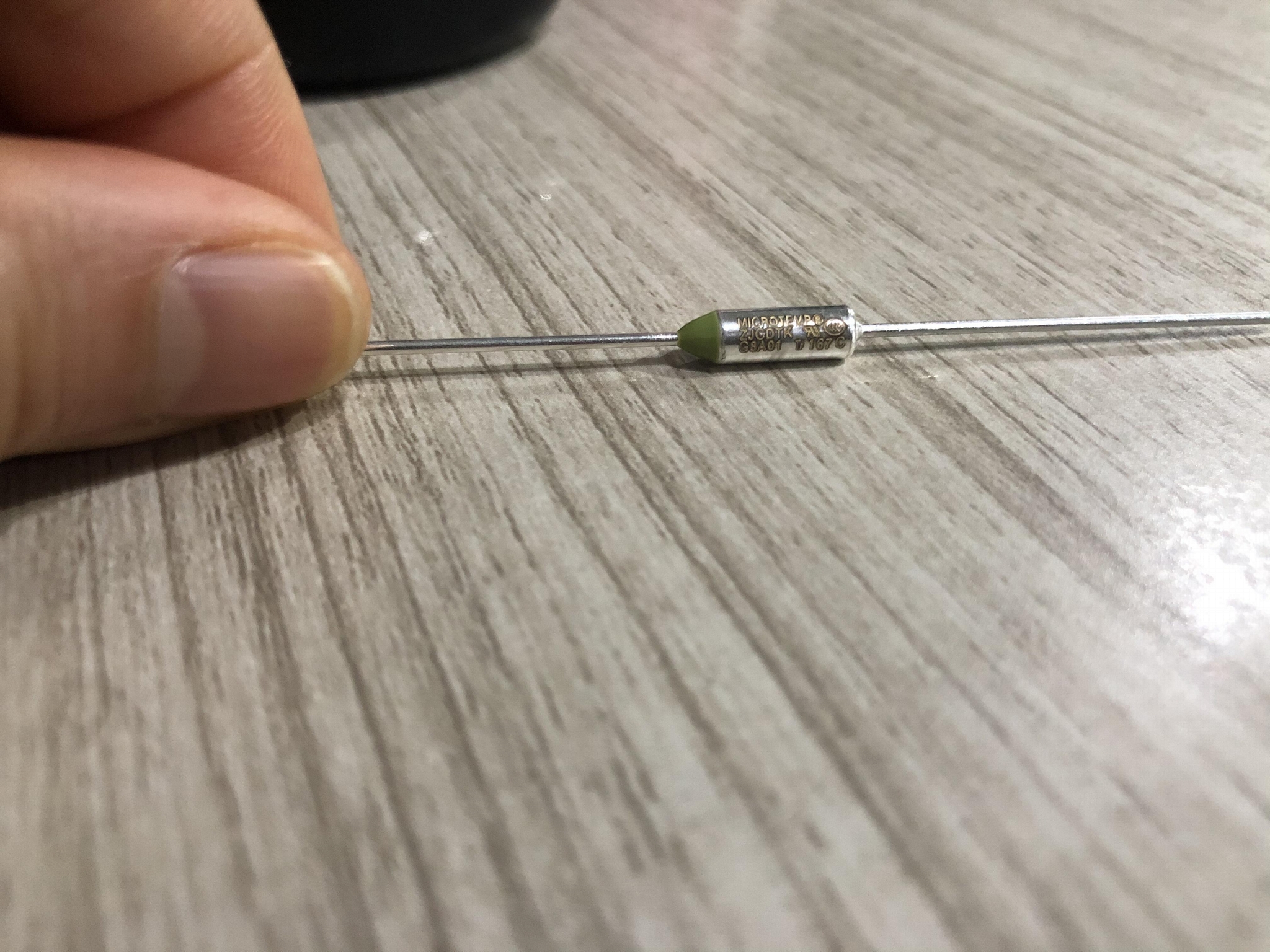

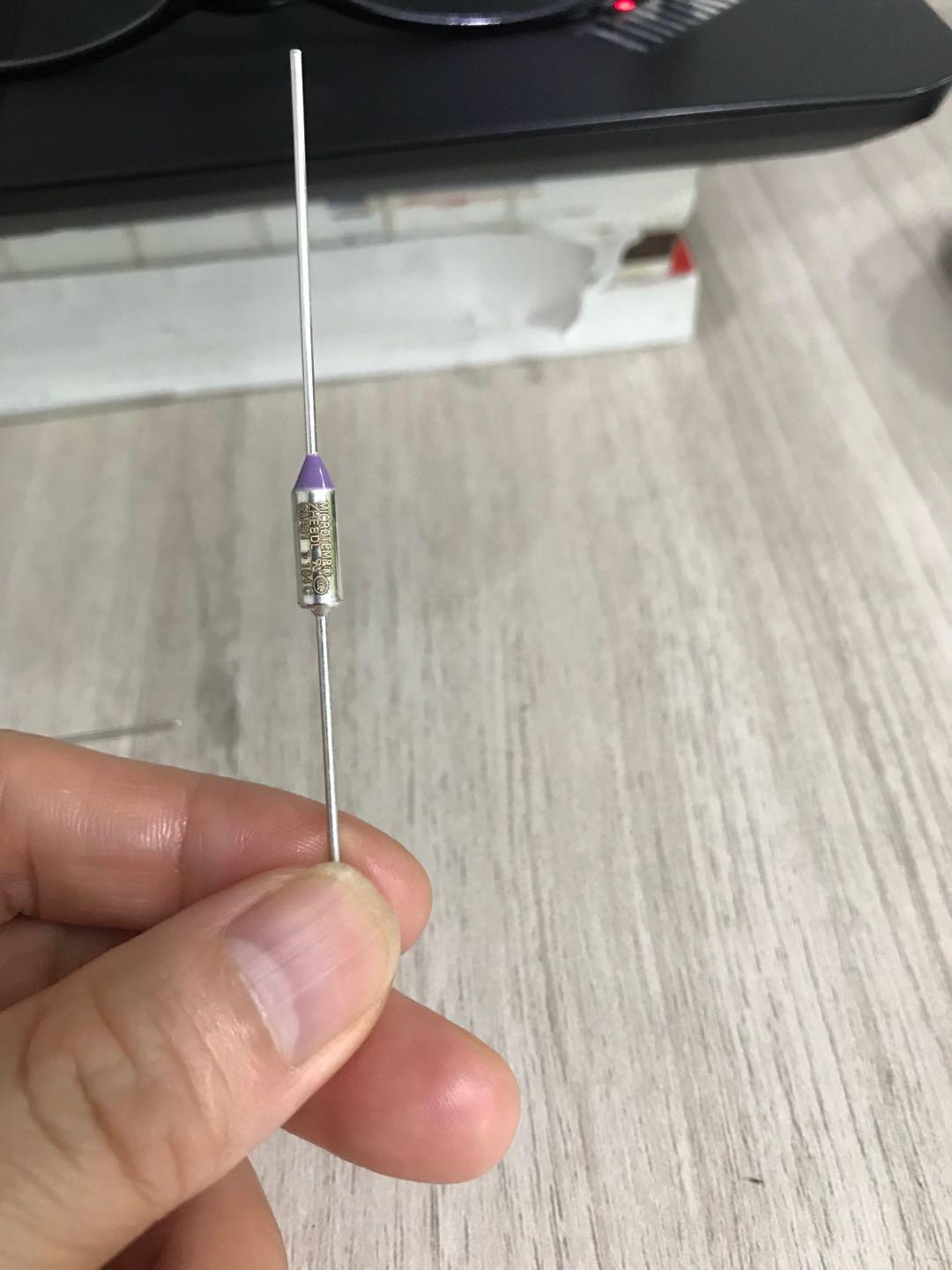

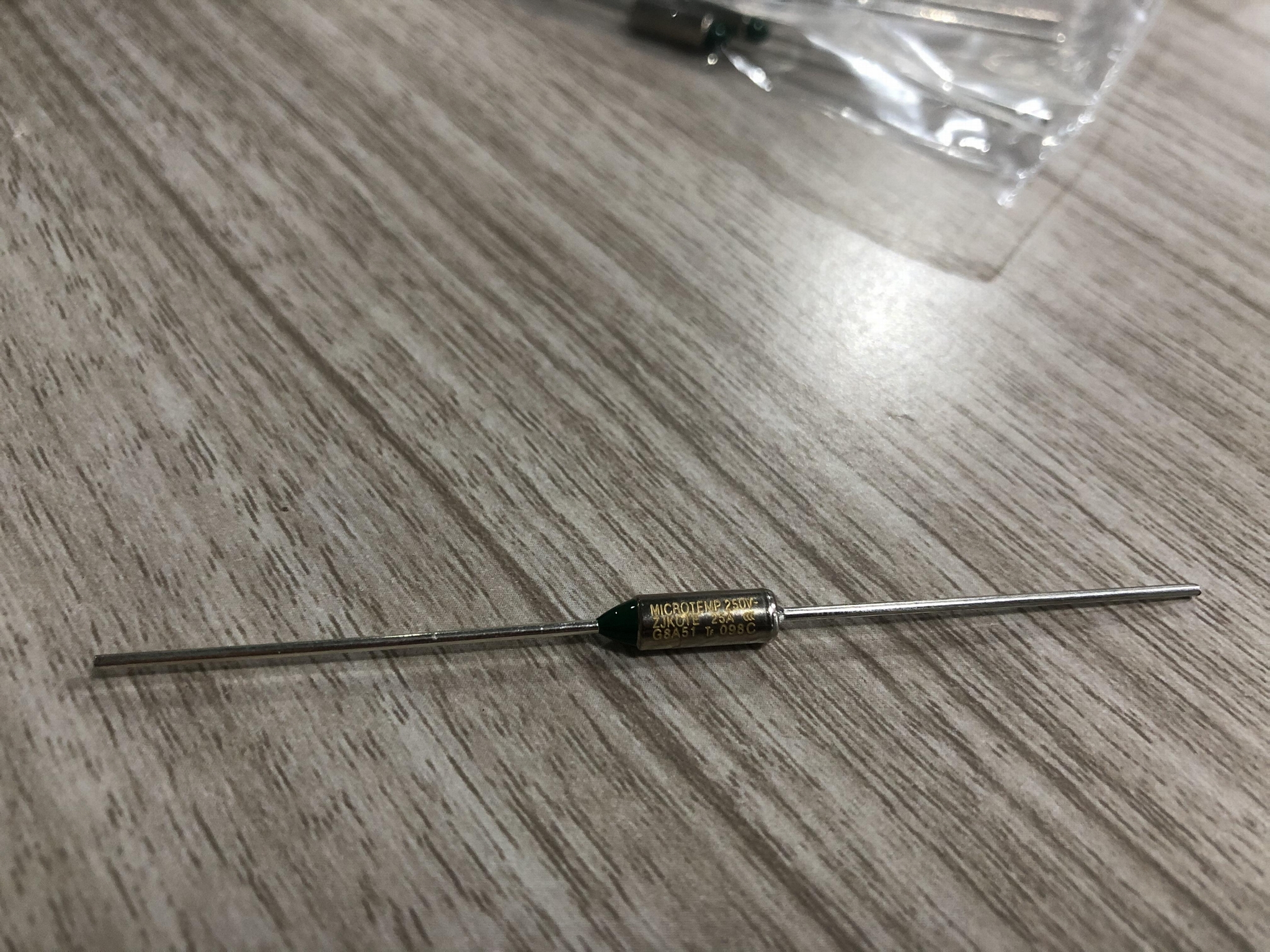

MICROTEMP® thermal fuses from Therm-O-Disc represent the global standard in thermal fuses.  MICROTEMP® thermal fuses offer an accurate, reliable solution to the need for upper limit temperature protection against overheating by interrupting an electrical circuit when operating temperatures exceed the rated temperature of the thermal fuse.  The G8-series, designed for higher voltage and current applications, is rated for continuous operating.
The MICROTEMP® G8 Thermal Fuse is rated for continuous operating currents up to 25 amps @ 250VAC and 20 amps @ 277VAC.
Electrical Ratings & Agency Recognition:
 UL/CSA --20A/277VAC, 25A/250VAC
 VDE -- 25A/250VAC
 CCC -- 25A/250VAC
 PSE JET -- 25A/250VAC
Overall Length: 63.8mm(Standard Leads) / 82.9mm(Long leads)

Standard Printing:

MICROTEMP
Zxxxxx cUL CCC
G8A00   TFXXXC

MICROTEMP
Zxxxxx cUL CCC
G8A01   TFXXXC

MICROTEMP
Zxxxxx cUL CCC
E8A00   TFXXXC

MICROTEMP
Zxxxxx cUL CCC
E8A01   TFXXXC

MICROTEMP  250~
Zxxxxx 25A CCC
E8A50   TFXXXC

MICROTEMP  250~
Zxxxxx 25A CCC
E8A51   TFXXXC

MICROTEMP  250~
Zxxxxx 25A CCC
G8A50   TFXXXC

MICROTEMP  250~
Zxxxxx 25A CCC
G8A51   TFXXXC

Standard Type:

G8A01  TF072C，G8A00  TF072C , G8A51  TF072C，G8A50  TF072C，E8A01  TF072C，E8A00  TF072C，E8A51  TF072C，E8A50  TF072C，
G8A01  TF073C，G8A00  TF073C，G8A51  TF073C，G8A50  TF073C，E8A01  TF073C，E8A00  TF073C，E8A51  TF073C，E8A50  TF073C，
G8A01  TF077C，G8A00  TF077C，G8A51  TF077C，G8A50  TF077C，E8A01  TF077C，E8A00  TF077C，E8A51 TF077C， E8A50  TF077C，
G8A01  TF084C，G8A00  TF084C，G8A51  TF084C，G8A50  TF084C，E8A01  TF084C，E8A00  TF084C，E8A51  TF084C，E8A50  TF084C，
G8A01  TF091C，G8A00  TF091C，G8A51  TF091C，G8A50  TF091C，E8A01  TF091C，E8A00  TF091C，E8A51  TF091C，E8A50  TF091C，
G8A01  TF093C，G8A00  TF093C，G8A51  TF093C，G8A50  TF093C，E8A01  TF093C，E8A00  TF093C，E8A51  TF093C，E8A50  TF093C，
G8A01  TF098C，G8A00  TF098C，G8A51  TF098C，G8A50  TF098C，E8A01  TF098C，E8A00  TF098C，E8A51  TF098C，E8A50  TF098C，
G8A01  TF104C，G8A00  TF104C，G8A51  TF104C，G8A50  TF104C，E8A01  TF104C，E8A00  TF104C，E8A51  TF104C，E8A50  TF104C，
G8A01  TF110C，G8A00  TF110C，G8A51  TF110C，G8A50  TF110C，E8A01  TF110C，E8A00  TF110C，E8A51  TF110C，E8A50  TF110C，
G8A01  TF117C，G8A00  TF117C，G8A51  TF117C，G8A50  TF117C，E8A01  TF117C，E8A00  TF117C，E8A51  TF117C，E8A50  TF117C，
G8A01  TF121C，G8A00  TF121C，G8A51  TF121C，G8A50  TF121C，E8A01  TF121C，E8A00  TF121C，E8A51  TF121C，E8A50  TF121C，
G8A01  TF128C，G8A00  TF128C，G8A51  TF128C，G8A50  TF128C，E8A01  TF128C，E8A00  TF128C，E8A51  TF128C，E8A50  TF128C，
G8A01  TF134C，G8A00  TF134C，G8A51  TF134C，G8A50  TF134C，E8A01  TF134C，E8A00  TF134C，E8A51  TF134C，E8A50  TF134C，
G8A01  TF141C，G8A00  TF141C，G8A51  TF141C，G8A50  TF141C，E8A01  TF141C，E8A00  TF141C，E8A51  TF141C，E8A50  TF141C，
G8A01  TF144C，G8A00  TF144C，G8A51  TF144C，G8A50  TF144C，E8A01  TF144C，E8A00  TF144C，E8A51  TF144C，E8A50  TF144C，
G8A01  TF152C，G8A00  TF152C，G8A51  TF152C，G8A50  TF152C，E8A01  TF152C，E8A00  TF152C，E8A51  TF152C，E8A50  TF152C，
G8A01  TF158C，G8A00  TF158C，G8A51  TF158C，G8A50  TF158C，E8A01  TF158C，E8A00  TF158C，E8A51  TF158C，E8A50  TF158C，
G8A01  TF167C，G8A00  TF167C，G8A51  TF167C，G8A50  TF167C，E8A01  TF167C，E8A00  TF167C，E8A51  TF167C，E8A50  TF167C，
G8A01  TF172C，G8A00  TF172C，G8A51  TF172C，G8A50  TF172C，E8A01  TF172C，E8A00  TF172C，E8A51  TF172C，E8A50  TF172C，
G8A01  TF184C，G8A00  TF184C，G8A51  TF184C，G8A50  TF184C，E8A01  TF184C，E8A00  TF184C，E8A51  TF184C，E8A50  TF184C，
G8A01  TF190C，G8A00  TF190C，G8A51  TF190C，G8A50  TF190C，E8A01  TF190C，E8A00  TF190C，E8A51  TF190C，E8A50  TF190C，
G8A01  TF192C，G8A00  TF192C，G8A51  TF192C，G8A50  TF192C，E8A01  TF192C，E8A00  TF192C，E8A51  TF192C，E8A50  TF192C，
G8A01  TF205C，G8A00  TF205C，G8A51  TF205C，G8A50  TF205C，E8A01  TF205C，E8A00  TF205C，E8A51  TF205C，E8A50  TF205C，
G8A01  TF216C，G8A00  TF216C，G8A51  TF216C，G8A50  TF216C，E8A01  TF216C，E8A00  TF216C，E8A51  TF216C，E8A50  TF216C，
G8A01  TF229C，G8A00  TF229C，G8A51  TF229C，G8A50  TF229C，E8A01  TF229C，E8A00  TF229C，E8A51  TF229C，E8A50  TF229C，
G8A01  TF240C，G8A00  TF240C，G8A51  TF240C，G8A50  TF240C，E8A01  TF240C，E8A00  TF240C，E8A51  TF240C，E8A50  TF240C
