| Model: | Alumina Ceramic |
|---|---|
| Brand: | Chemshun |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Non-metallic Mineral Products |
| Label: | ceramic pipe , alumina ceramic tube , ceramic wear liner |
| Price: |
US $1005
/ ton
|
| Min. Order: | 1 ton |
| Live Chat: | Last Online:30 Aug, 2021 |
1: Chemshun alumina ceramic lined pipe elbow advantage :
2: Alumina Ceramic lined pipe introduction :

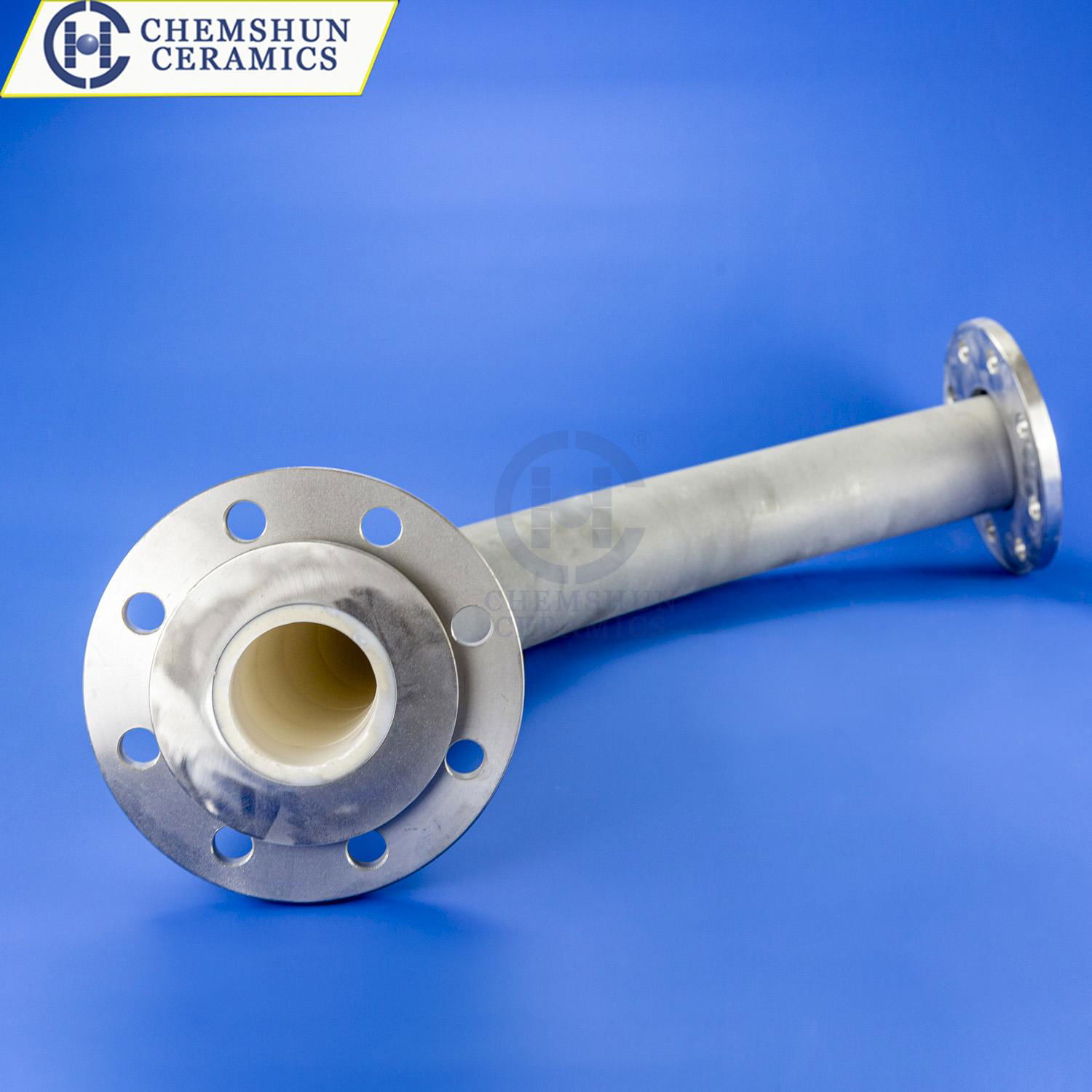

CHEMSHUN CERAMICS lined pipe elbow are designed for extended service life in high wear pneumatic fly ash, bottom ash, bed ash and mill reject conveying applications. Ceramic steel composite pipe consist of single ceramic tubes sticked in steel pipe by epoxy resin adhesive glue, single-piece ceramic pipe design eliminates potential erosion and failure points caused by manual assembly of tiled ceramic fittings, thereby reducing maintenance and lower life-cycle cost. Chemshun ceramics not only supply ceramic tube but also manufacture full set of ceramic lined steel pipe with flange.
4: Technical data :
1) Chemical data :
| Al2O3 | SiO2 | CaO | MgO | Na2O |
| 92~93% | 3~6% | 1~1.6% | 0.2~0.8% | 0.1% |
2) Physical data :
| Specific gravity (g/cc) | >3.60 |
| Apparent porosity (%) | 0 |
| Flexural Strength (20ºC, Mpa) | 280 |
| Compressive strength (20ºC, Mpa) | 850 |
| Rockwell hardness (HRA) | 80 |
| Vickers hardness (hv) | 1050 |
| Moh's hardness (scale) | ≥9 |
| Thermal Expansion (20-800ºC, x10-6/ºC) | 8 |
| Crystal Size (μm) | 1.3~3.0 |
| Payment Terms: | TT / LC / DP / DA |
|---|---|
