| Model: | Single Tube |
|---|---|
| Brand: | E-DEN |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Heaters |
| Label: | Quartz Infrared Lamp , Infrared Tube , IR Heat Lamp |
| Price: |
-
|
| Min. Order: | 2 pc |
| Live Chat: | Last Online:10 Apr, 2023 |

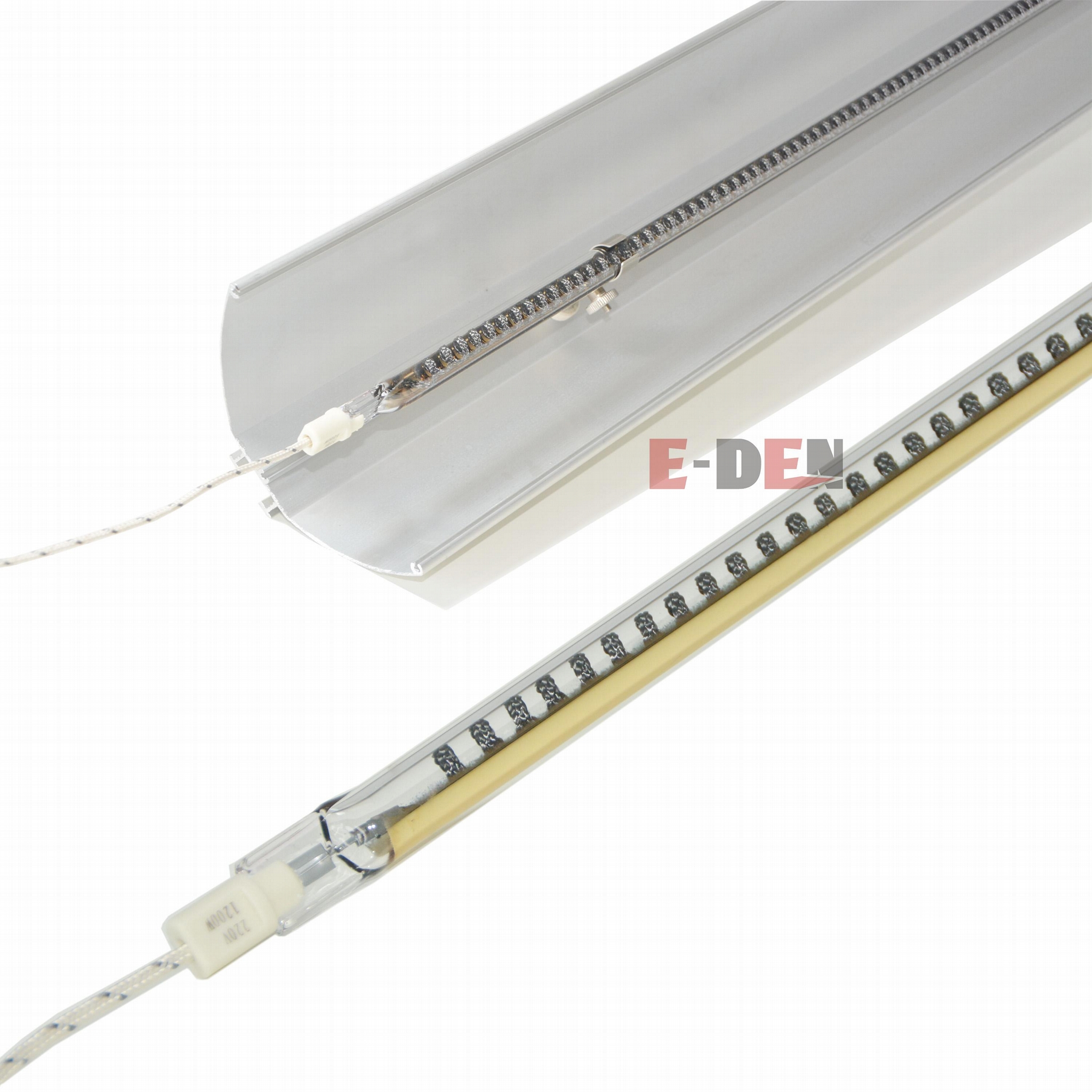

Single Tube Halogen Short Wave Infrared Lamps are widely used in high-efficient industrial fast heating applications. The halogen IR lamp is made of quartz single tube. The heating filament is tungsten alloy material. We have 10mm, 11mm, 12mm, 14mm, 15mm and 19mm single quartz tube for different customers. The total length of single tube IR lamp can be up to 2.5 meter. In order to better convey and focus on the heated material all the IR radiation emitted from the IR lamp, the special gold reflector or white reflector will be coated and fixed directly on the quartz surface.
| Short Wave Single Tube IR Lamp | ||||||
| Peak wavelength | 1.0-1.4μm | |||||
| Response time | >1 second | |||||
| Diameter (mm) | 10 | 11 | 12 | 14 | 15 | 19 |
| Max. Length (m) | 1.1 | 1.1 | 1.5 | 2.0 | 2.0 | 2.5 |
| Reflector | White or Gold reflector | |||||
| Burning position | Horizontal or Vertical | |||||
| Payment Terms: | T/T/LC |
|---|---|
