| Model: | Coiled Wire |
|---|---|
| Brand: | Desan or Custom |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Optical Fiber, Cable & Wire / Power Cable |
| Label: | Spring Cable , Coilded Cable , Spiral Cable |
| Price: |
US $1.2
/ pc
|
| Min. Order: | 500 pc |
| Live Chat: | Last Online:05 Sep, 2023 |

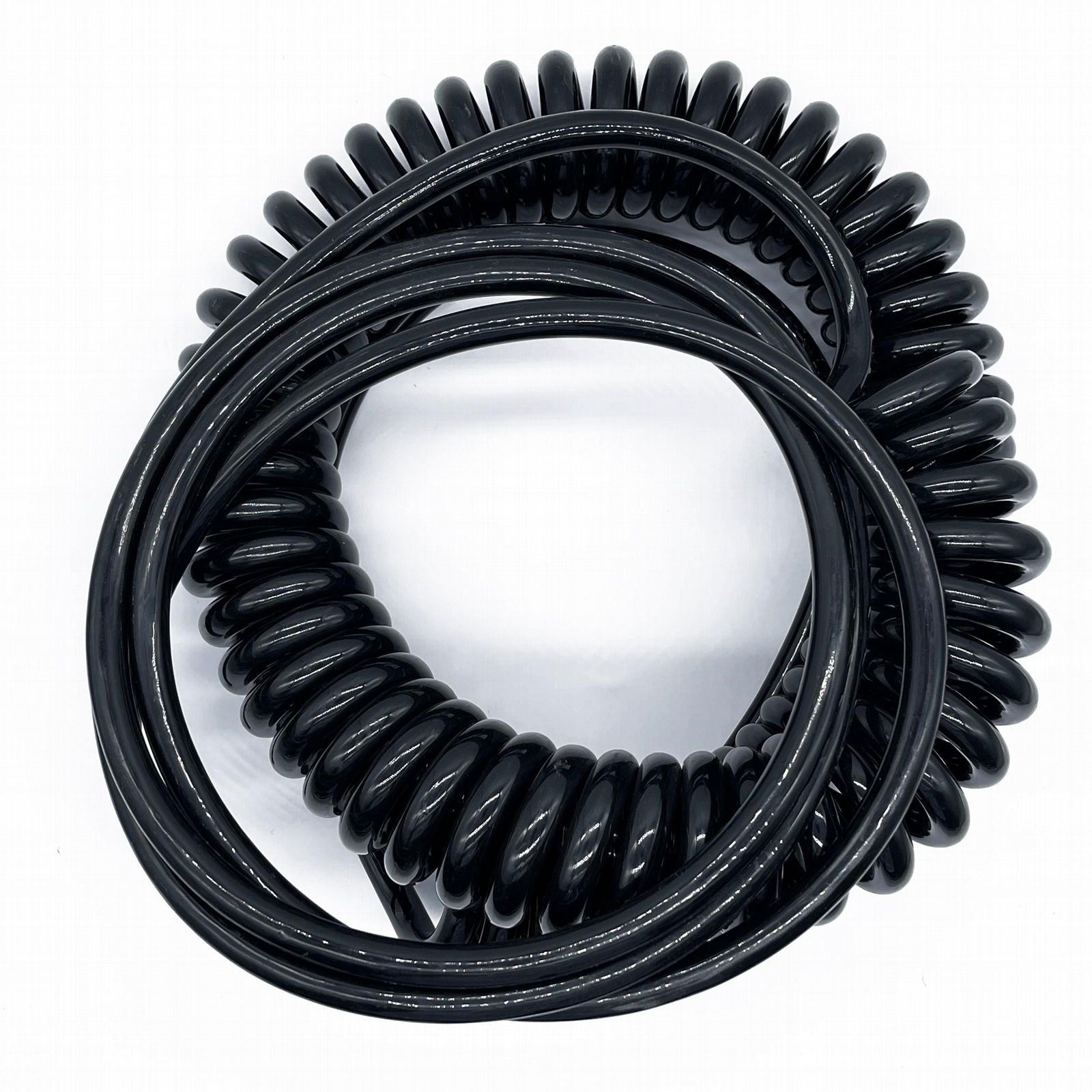

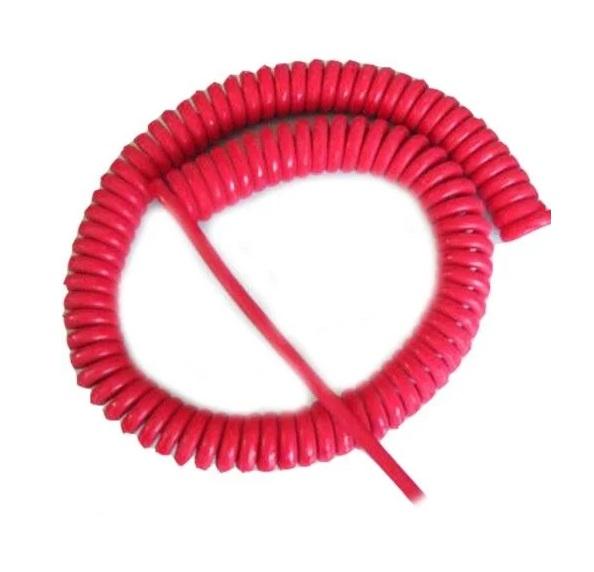

Customized TPE Insulated PUR Sheathed Coiled Spiral Cable, Halogen-Free Flame Retardant PU PUR TPU Soft Spiral Coiled Spring Helix Cable, Oil Resistant Flexible PVC Insulated PUR Electric Cable Spiral Cable Coiled Wire made by Suzhou Desan Wire Co., Ltd.
Quick Look:
Spiral / Spring Cable Specification
| Conductor | Copper / Tinned Copper |
| Insulation Material | PVC/PE/XLPE/TPE/ETFE/FEP/PFA |
| Cores | 2/3/4/5/6/Customzied |
| Braided Material | Copper / Tinned Copper / None |
| Foil Material | Alu / None |
| Jacket Material | PUR/TPU/PVC |
| Core Colour | BK/WH/RD/YE/BU/BN/VT/Customized |
| Jacket Colour | BK/OG/BU/Customized |
| Manufacturing Process |
| Choosing Raw Materials---Twisting---Extruding---Cable Processing---Weaving---Sheath Processing---Spiraling and Forming---Inspection and Packing---Packed.Ready made Products |
1. Application:
For rated AC voltage 450/750V or DC voltage 6V-1000V below Industrial Mechnical Equipment, Sensor, Transimit Control System, Electric Instrument , Battery, Interphone , Home Electrical Appliance, and so on.
2. Structure & Specifications:
Conductor: Tinned copper wire, Solid or multi-strands
Insulation material: PVC / PE / PP/Thermoplastic Elastomer
Sheath material: PU / TPU / PA / PVC / TPEE/Polyurethane
Expanding length: 1.0 m-25.5m
Color: yellow, grey, black , Red, Green, Blue , Orange , White, different colors can be customized.
Operating temperature: according to customer requirements, cold -65 degrees; temperature 80 degrees, 105 degrees, 125 degrees
Spring Length: arbitrary (customized according to customer requirements)
Good flexibility and elasticityElongation length of up to 3.5-4 times the original length of spring. Have good cold resistance, flame resistance, oil and abrasion resistance. Occasions according to different requirements of production of various kinds of spiral-type spring line.
3. Range we can produce:
Nominal cross section: 0.12~4mm2
Nmubers of cores: 1~30 core
Length of Spring: customized as per your request
1. We specializes in the spiral cables for more than 10 years, our professional teams can give you the best quality products, the best service and the reasonable price.
2. We are the manufacturer.
3. Any inquiries will be replied within 24 hours.
4. Quality is under control and supervision during the production. All products will strictly quality checked before packing. All products will be well packed before shipping.
4. Reference Drawing:
5. Our Service
1.OEM/ODM available
(1). Printing your logo on the cable.
(2). Any your idea on cable and packing cartons are available.
2.Sample
Give us your application and your request---we recommend suitable cable.
Free samples if we have stocks otherwise we can customize it and charge some cost for it. And the sample cost will return you when receive your bulk order more than USD1000. Sample need 1-2 weeks to customized. if not customized product, sample provide within 3 days.
