| Model: | - |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Transportation / Car Parts & Components |
| Label: | brake assembly line |
| Price: |
US $200000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:13 Oct, 2022 |

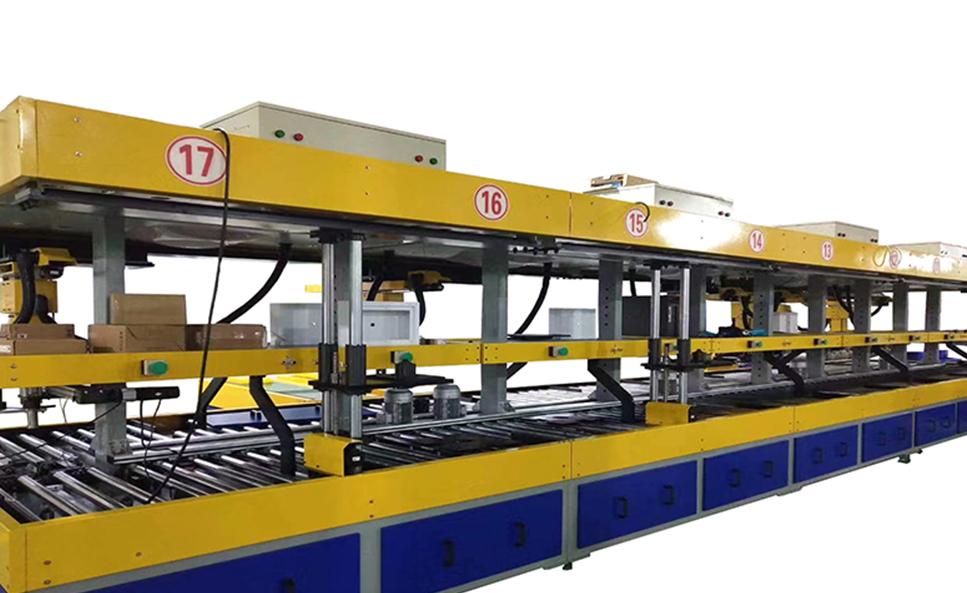

Independent research and development and manufacture of forklift brake assembly line. The equipment adopts the leading two-stage bed plane conveying structure design, which improves the utilization rate of the flow channel to 100% (the upper and lower conveying methods of traditional equipment work in the upper flow channel, and the lower flow channel can only be used for conveying follow-up tooling), and the flow channel uses 2.5 Double differential chain heavy-duty transmission, can assemble products weighing about 30kg. The overall equipment occupies a small area, beautiful in appearance, and it is easier to realize automatic and semi-automatic installation procedures.
HOW DOES BRAKE ASSEMBLY LINE WORK?
Reasonable distribution shall be adopted in combination with the brake assembly process. Using the flow channel transmission, the automatic manipulator completes the brake assembly process.
FEATURES OF BRAKE ASSEMBLY LINE
1
Laser marking, the laser marking machine can automatically engrave repeatedly to ensure clear words. Automatic gluing, perfectly matched with four-axis machinery, the equipment can be used stably for a long time.
2
Automatically screw the screw, can set the torque and the number of turns of the screw.Automatic flip, the design of automatic flip station on the runner subtly meets this demand.
3
Automatic oiling, four-axis robot + precision oiling parts, to achieve the oiling requirements of various specifications. Automatic detection, four-axis robot + laser sensor + program coding, 360 ° all-round detection of the brake.
ADVANTAGES OF BRAKE ASSEMBLY LINE
brake assembly line
FIRST
High utilization
The assembly line is divided into two sections, the head and the tail, and the installation and disassembly are more convenient. the plane conveying structure has a flow channel utilization rate of up to 100%.
brake assembly line
SECOND
Small size
The runner adopts 2.5 times differential chain heavy-duty transmission, which can realize product assembly of about 30kg. The volume is about 40m³, and it is easier to realize automatic and semi-automatic installation procedures.
