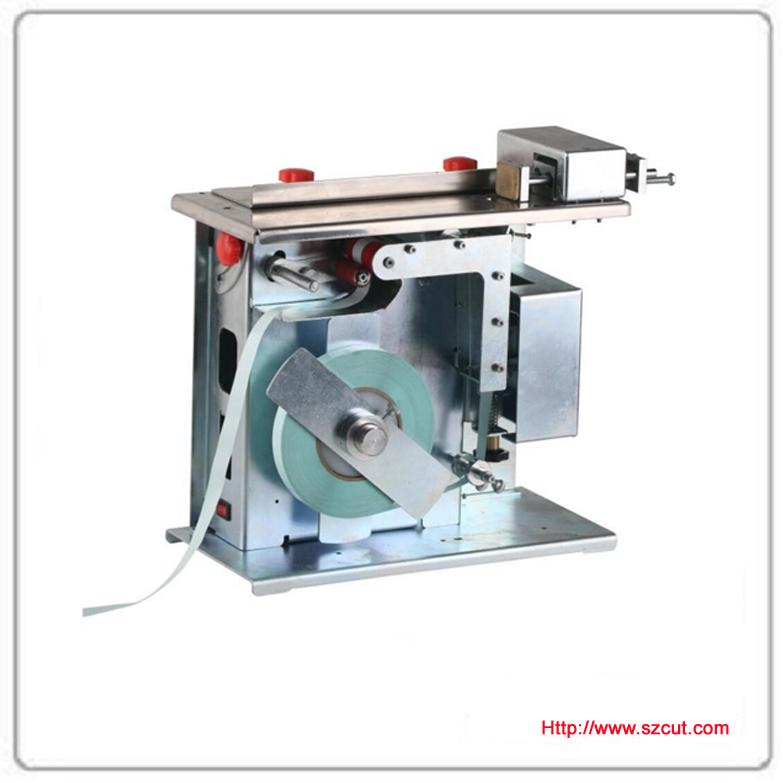

Automation L-clip label taper

Machine size: 350*168*350mm

Weight: about 11kg

Applicable label: ID75-77mm, OD: within 200mm, width: within 30mm, single-sheet single-row label roll paper.

Voltage : 220V( 110V can be customized) The length of the front empty label: about 150 mm

Description:

This machine is suitable for the bonding work of various right-angle labels. It is easy, fast, correct, precise, and portable. The machine is only reset for 11kg, which is easy to handle and install.

Technical parameters:

1, machine size and weight: the single machine weighs about 11Kg, the machine size is 350x168x350mm,

2, the applicable label: inner diameter of 75-77 mm, outer diameter of less than 200 mm, width of less than 20 mm, single-sheet single-row label roll paper.

3, the machine power supply voltage a few volts: the standard is AC 220V, 110V can be customized.

4, the length of the front empty label tape: about 150 mm, that is, the front 150 mm of the bottom paper strip of each roll can be left blank, so that the label is not wasted. (You can also leave it blank, no coloring for use}

5. Why is the diameter of the paper core of the label 75 mm? If the diameter of the paper core is too small, the label is wound on the paper core. After a long time of rolling, the label is mostly bent (arc). (Bend labels will not be as good as straight labels when pasted).

Sixth, the speed of label paste: speed can be adjusted.

7. How to set the length of the label paste: adjust the speed controller, adjust the amount of F in the microcontroller, and adjust the size adjustment knob (this knob can not be adjusted if it is not adjusted). These can be adjusted for the label size.

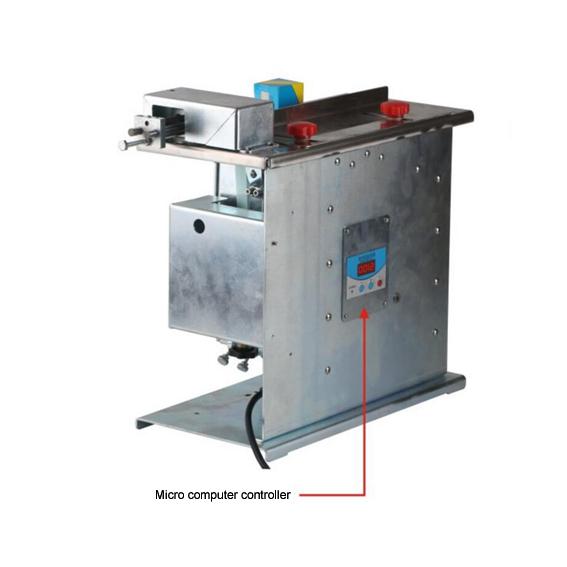

8. What is the control of this equipment: Microcomputer controller (control center, microcontroller). 9. What kind of material is made of the machine body: steel plate and stainless steel, which have been surface treated.

Labeling method:

Just press and hold the box and push it gently to complete the right angle seal. The labeling speed is about 30 boxes per minute, and it can be 10,000 boxes per day.

Use:

Sealing of outer casings of pharmaceuticals, cosmetics, foods, and precision parts.

Questions the customer may ask?

1, the length of the front empty label tape: about 150 mm, that is, the front 150 mm of the bottom paper strip of each roll can be left blank, so that the label is not wasted. (You can also leave it blank, no coloring for use}

2. Why is the diameter of the label paper core 75 mm?

If the diameter of the paper core is too small, the label is wound on the paper core. After a long time of rolling, the label is often bent (arc) (the curved label will not be as good as the straight label when it is pasted) .

3, the speed of label paste?

The speed is adjustable.

4, how to set the length of the label paste?

Adjust the governor, adjust the amount of F in the microcontroller, and adjust the size adjustment knob (this knob can not be adjusted if it is not adjusted). These can be adjusted for the label size.

5. What is the control of this device?

Microcomputer controller (control center, microcontroller).

6. What material is the body made of?

Stainless steel.
