| Model: | - |
|---|---|
| Brand: | JDR |
| Origin: | Made In China |
| Category: | Industrial Supplies / Electrical & Electronic Product Equipment |

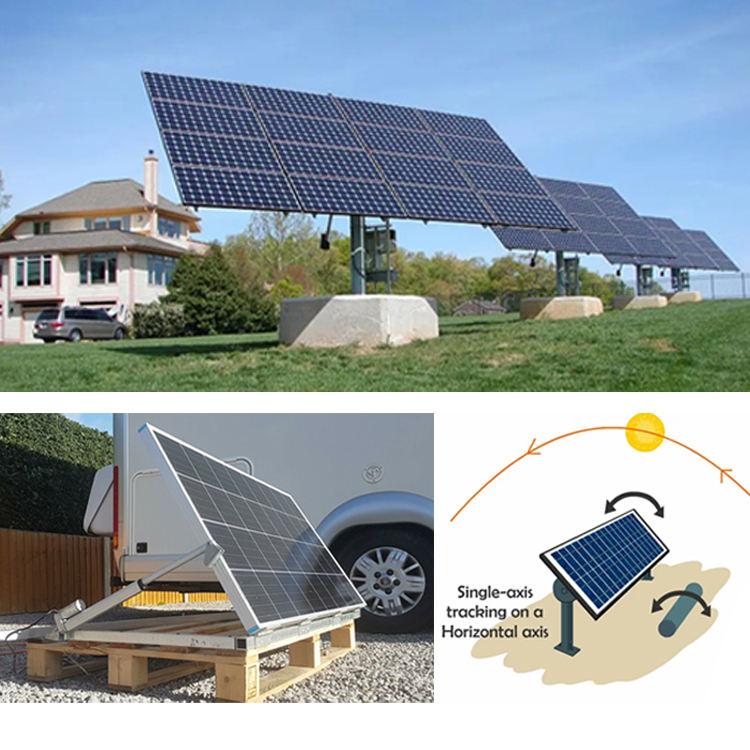

| Label: | solar tracking motor , linear actuator , solar actuator |
| Price: |
US $400
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:22 Sep, 2022 |
Specifications:
Heavy duty satellite actuator
| Installation dimension: Stroke+320mm |
| Max load: 16000N (1631.55kg / 3596.94lbs) |
| Speed: 3~8.5mm/s |
| Input voltage: 48V/ 36V/ 24V/ 12V DC |
| Inner limit switch |
| Protection grade: IP65 |
| Type of duty: 10%,2 min. on/ 18min. Off |
| Operation temperature: -26~65℃ |
| Warranty time: Two years |
Shopping guide:
1. Determine the voltage: There are multiple choices of DC 12V 24 36V 48V 72V.
2. Determine the stroke of the push rod, that is, the range of motion of the push rod, which can be customized according to your requirements.
3. Determine the pushing speed of the putter. Different speeds correspond to different powers. The details are described in the details. You can also consult online or leave a message to me.
The power of the putter is related to the speed. The faster the speed, the smaller the power, and the slower the speed, the greater the power. The two are inversely proportional. Buyers can choose the appropriate speed and thrust motor according to the following parameter table
To learn more, contact jdr3@wxfeiya.com by e-mail.
These Heavy Duty Rod Linear Actuators come in a variety of forces from 200 lbs. up to 1,000 lbs. of force; and stroke options range from 3 to 30 inches (or custom strokes, if requested). They use a worm-gear drive mechanism, which means they are very quiet and offer high efficiency as a result.
The Heavy Duty line was developed with high standards in mind. Our clients demand the best quality and performance for their money, inspiring us to come up with this r ed design. This versatile unit features an aluminum shaft to shed weight, internal limit switches, an aluminum alloy inner tube, as well as a high-performance 12 volt DC motor that is capable of producing between 200 and 1000 lbs. (90-453 kg) of force.
No matter your application, installation doesn’t need to be a hassle. Required components consist of just two brackets, one for either end, with quick-release pins for easy fitting and set-up. Controlling the unit is just as easy via a 2-wire system, making this unit a ‘plug & play’ type accession unique to JDR Actuator.
To learn more, contact jdr3@wxfeiya.com by e-mail.
