1/. Automatic vulcanizer with PLZ controler

Automatic vulcanizer for curing silicone or organic rubber moulds.

Features:

1. PLC Automatic intelligent vulcanizing control.
2. Touch-screen control panel.
3. Automatic pressure regulation.
4. Digital temperature controller.
5. Curing cycle timer.
6. Automatic forced cooling
7. Digital display temperature and time.
8. Maximum pressure protection
9. Hydraulic group with motor pump and oil pressure release valve.
10. Electro-valve controlled plate opening.
11. Environmental and energy saving insulation design to provide a better temperature uniformity and energy cost saving.

Model                              APM12-I       APM14-I       APM16-I   APM18-I    APM20-I
Mould diameter, max        12"                14"             16"              18"            20"
Mould thickness, max                       150mm
Power                             6KW          6KW             9.6KW           10.8KW     12KW
Pressure, max                32T               32T            50T               50T          50T

2/. Automatic vulcanizer Automatic vulcanizer for curing silicone or organic rubber moulds for centrifgal casting for bucket and accessories, jewelry

Features:
1. Automatic control
2. Automatic pressure regulation.
2. Automatic temperature control
3. Curing cycle timer.
4. Automatic forced cooling
5. Digital display, temperature and time.
6. Maximum pressure protection
7. Environmental and energy saving insulation design to provide a better temperature uniformity and


Energy cost saving.Model APM12 APM14 APM16  APM18    APM20
Mould diameter, max            12"        14"         16"        18"        20"
Mould thickness, max          150mm
Power                                       6KW     6KW    9.6KW  10.8KW    12KW
Pressure, max                       32T         32T       50T       50T      50T

3/. Manual rubber vulcanizer press for centrifugal casting

Vulcanizer for curing rubber moulds for centrifugal casting.

Features:

1. Automatic temperature control
2. Curing cycle timer.
3. Digital display temperature and time.
4. Heating plates with good surfces assure perfect flatness

Model                                  MVP12 MVP14 MVP16   MVP18   MVP20
Mould diameter, max        12"       14"      16"             18"      20"
Mould thickness, max      150mm
Power                                4KW       6KW       9.6KW  10.8KW    12KW
Pressure, max                32T          32T        50T          50T      50T

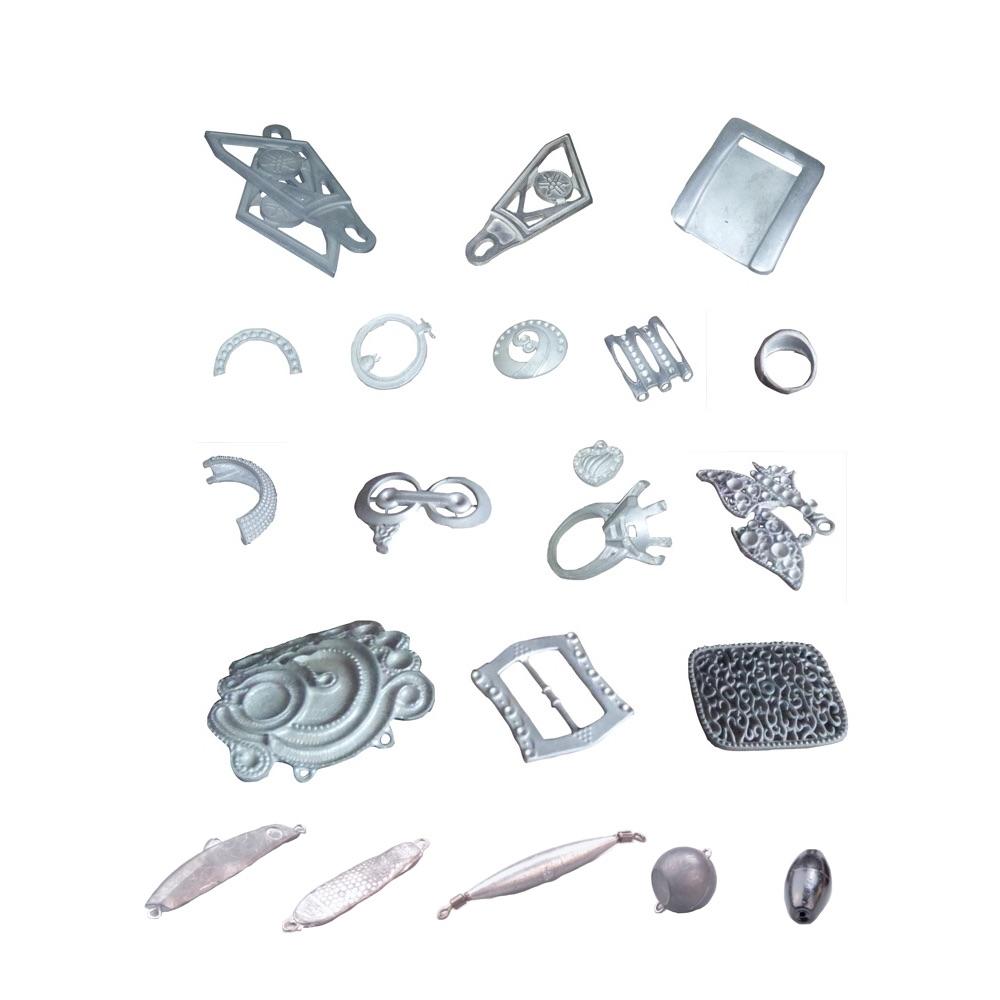

Centrifugal casting machine is used to produce precision casted buckles and accessories for the leather industry and garment industry, imitation fashion jewelry, buckles, button, toy soldiers, miniatures, figurines, car model,  medals, furniture accessories, promotion gift, and fishing tackle etc. from low-melting zinc alloy or tin-lead alloy.

1/. Automatic Single station Centrifugal Casting Machine

Product Feature:

1. Compact design, spin casting and metal melting furnace integrated together.
2. Single station for high efficiency.
3. Automatic feeding and automatic control make precision repeat production, and effectively saving time and labor.
4. Variable frequency drive adjusts centrifugal speed from 0-1400 rpm
5. Safety protection of the centrifugal area.
6. Touch screen control panel digital display and setting speed, casting time and filling time, etc.
7. PLC setting and controlling all production cycles, time, speed. Programmer and store of the setting.
8. Built-in fan forced cooling rubber mold improved working life of the mold.
9. Easy operated and maintained.

2/. Automatic 3-stations Centrifugal Casting Machine

Product Feature:

1. Compact design, spin casting and metal melting furnace integrated together.
2. 3-station for high efficiency.
3. Precious Index rotary table.speed adjustable
4. Automatic feeding and automatic control make precision repeat production, and effectively saving time and labor.
5. Independent mould pneumatic camping system with independent pressure regulator and pressure gauge.
6. Variable frequency drive adjusts centrifugal speed from 0-1400 rpm
7. Specially designed heated casting channel controlled by thermostat reduces the operation temperature of the metal and extend the working life of the channel.
8. Safety protection of the centrifugal area.
9. Touch screen control panel digital display and setting all functions, speed, time, rotary direction, temperature etc.
10. PLC setting and controlling all production cycles, time, speed, rotary direction, temperature. Programmer and store of the setting for each mold.
11. Automatic diagnosis model missing.
12. Built-in fan forced cooling rubber mold improved working life of the mold.
13. Easy operated and maintained

3/. Semi-auto Centrifugal Casting Machine

Product Feature:

1. Digital speed display.
2. Digital timer for centrifugal time setting.
3. Cover Automatic open / close design, effectively saving time and labor.
4. Adopt variable frequency driver for speed regulation in range 50-1400 RPM for more processing options
5. Safety protection of the centrifugation area.
6. Electronic emergency brake system.
7. Easy operated and maintained.

4/. Semi-auto vacuum centrifugal casting machine

Product Feature:

1. Efficient vacuum pump, centrifugal casting cycle shorted, cooling faster, rubber mold working life prolonged.
2. Digital speed display, digital counter.
3. Digital timer for centrifugal time setting.
4. Cover Automatic open / close design, effectively saving time and labor.
5. Adopt variable frequency driver for speed regulation in range 50-1400 RPM for more processing options
6. Safety protection of the centrifugation area
7. Electronic and pneumatic double emergency brake system
8. Easy operated and maintained.

5/.Semi-automatic  3-stations Centrifugal Casting Machine

Product Feature:

1. Precious Index rotary table, speed adjustable.
2. Independent mould camping pressure system with independent pressure regulator and pressure gauge.
3. Variable frequency drive adjust centrifugal speed from 0-1400 rpm
4. Safety protection of the centrifugal area.
5. Touch screen control panel digital display and setting all functions, speed, time etc.
6. PLC setting and controlling all cycle functions, time and speed.
7. Automatic dignoises model missing.
8. l  Built-in fan forced cooling rubber mold improved working life of the mold.
9. Easy operated and maintained

6/. Manual Centrifugal Casting Machine

Product Feature:

1. Digital speed display.
2. Timer for centrifugal time setting.
3. Digital counter.
4. Adopt variable frequency driver for speed regulation in range 50-1400 RPM for more processing options .
5. Safety protection of the centrifugation area .
6. Electronic emergency brake system.
7. Easy operated and maintained.

7/. Manual Vacuum Centrifugal Casting Machine

Product Feature:

1. Efficient vacuum pump, centrifugal casting cycle shorted, cooling faster, rubber mold working life
   prolonged.
2. Speed display.
3. Timer for centrifugal time setting.
4. Digital counter.
5. Varibale frequency driver speed regulation in range 50-1400 RPM for more processing options.
6. Safety protection of the centrifugation area.
7. Electronic emergency brake system.
8. Easy operated and maintained.
