| Model: | GM803 |
|---|---|
| Brand: | GM803 |
| Origin: | - |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | QR module |
| Price: |
US $9
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:14 Aug, 2023 |

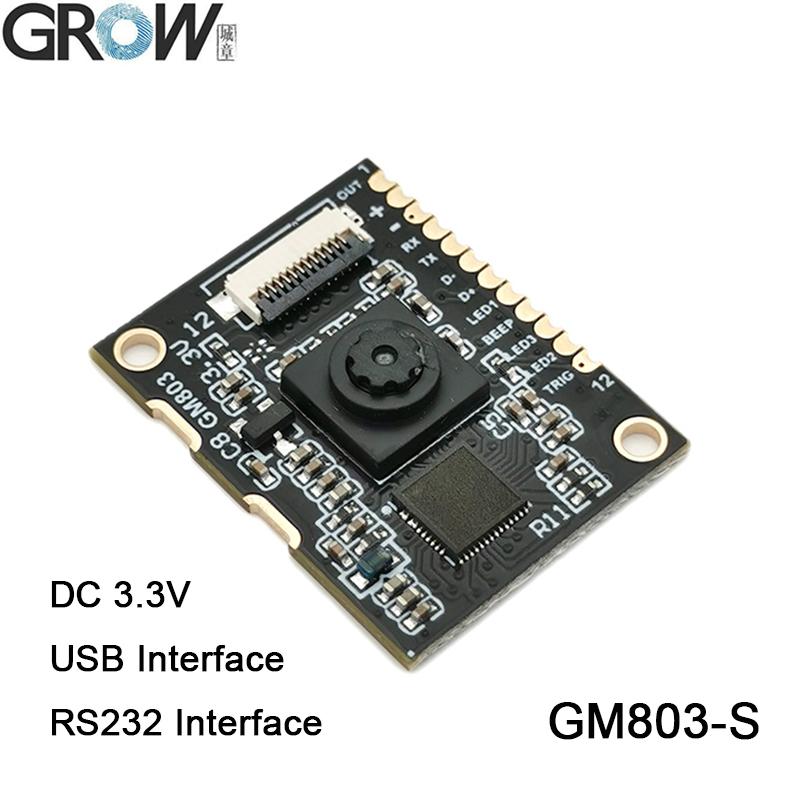

GM803 serial have GM803-S and GM803-L model.
The only difference between GM803-S and GM803-L is the lens.
GM803-S lens reading distance is 5-30cm.
GM803-L lens reading distance is 7-50cm.
(The actual data depends on the size and content of the code)
GM803 serial bar code reader module is a high performance scanner, can read 1D bar code easily and read 2D bar code with high speed. It also wins high scan speed for linear code, even for bar code on paper or screen.
GM803 serial bar code reader module is an advanced bar code decoding algorithm which developed on image recognition algorithm, can easily and accurately read bar code, simplify secondary development.
|

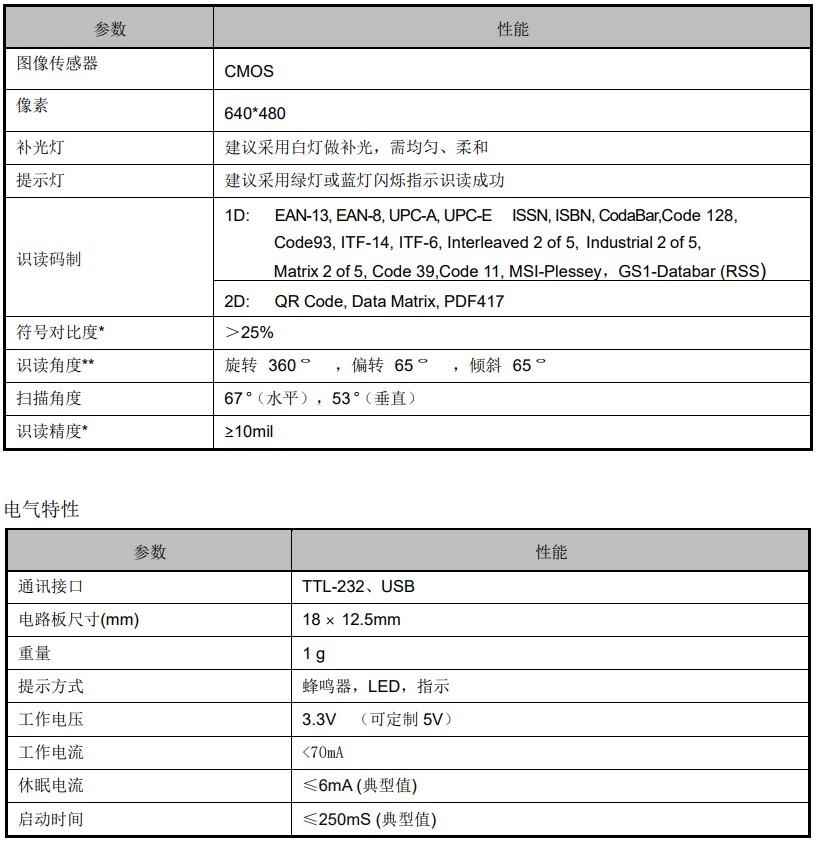

Parameter |
Performance |
|
Sensor |
CMOS |
|
Scan Mode |
640*480 |
|
Lighting |
It is recommended to use white light as lighting, should be uniform and soft |
|
Indicator Light |
It is recommended to use green/blue light as read successfully |
|
Read Code Type |
1D: EAN-13, EAN-8, UPC-A, UPC-EISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial2of5, Matrix2of5, Code 39,Code11, MSI-Plessey，GS1-Databar (RSS) |
|
2D: QRCode, DataMatrix, PDF417 |
|
|
GM803-S Reading Distance |
5-30cm |
|
GM803-L Reading Distance |
7-50cm |
|
Contrast* |
＞25% |
|
Scan Angle** |
Roll:360°Pitch:65°Yaw:65° |
|
Viewing Angle |
67°(Horizontal)53°(Vertical) |
|
Accuracy of reading* |
≥10mil |

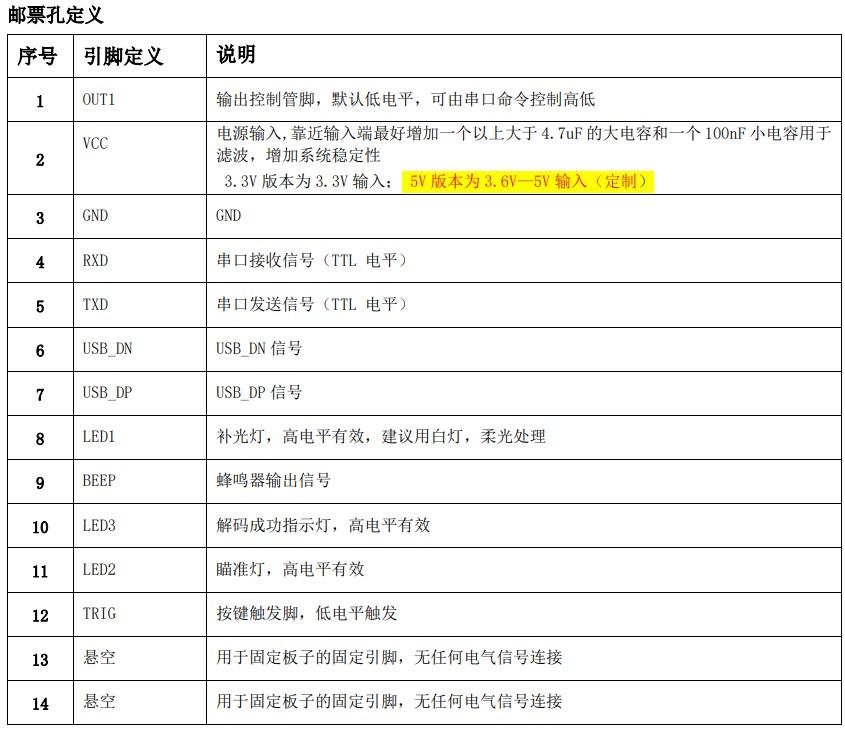

Mechanical/electrical Parameters:
|
Parameter |
Performance |
|
Interface |
TTL-232/USB |
|

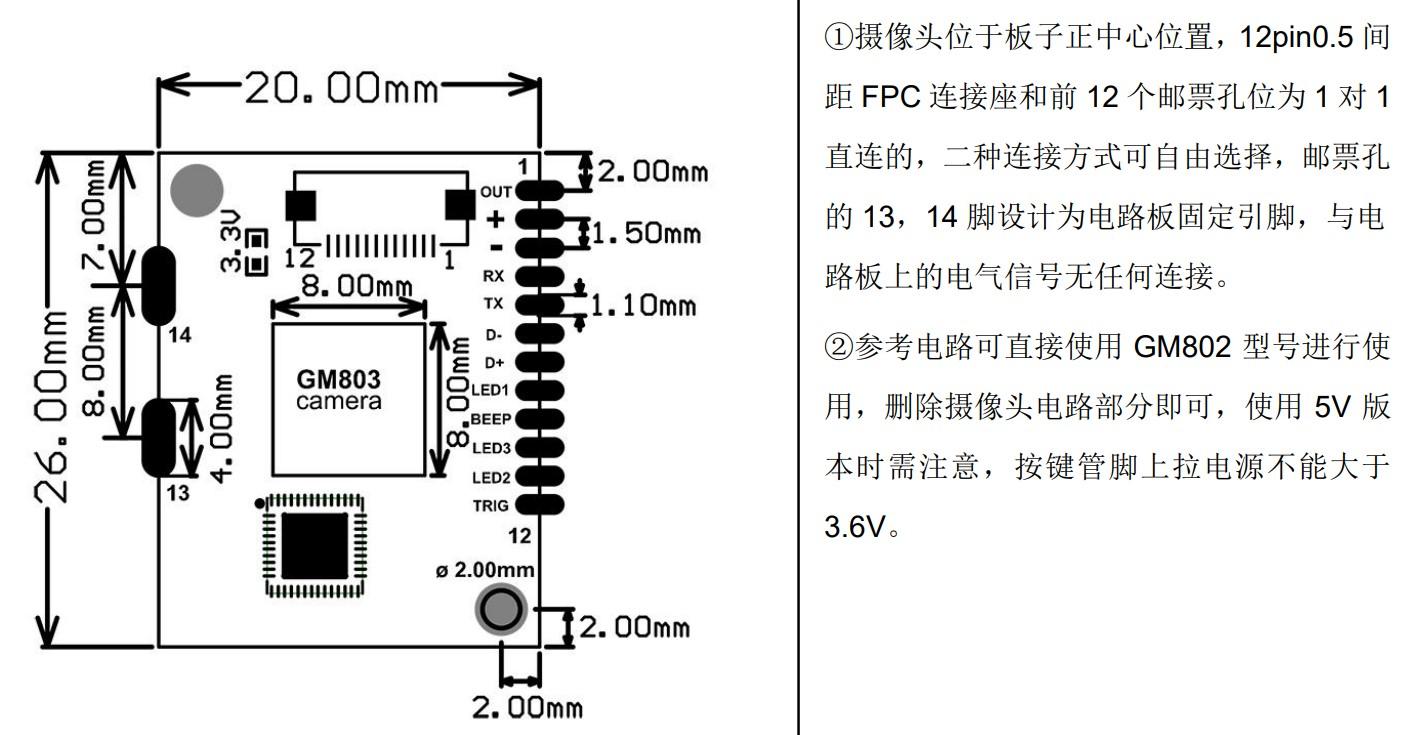

Size(mm) |
26*20 mm |
|
Weight |
2g |
|
Prompting mode |
Buzzer LED Indicator |
|
OperatingVoltage |
3.3V |
|
Operation Current |
70mA(Max) |
|
Standby Current |
≤6mA(Typical) |
|
Startup time |
≤250mS (Typical) |
Environmental Parameters:
|
Parameter |
Performance |
|
Operatingtemperature |
-20℃~60℃ |
|
Storage Temperature |
-40℃~+100℃ |
|
Operating Humidity |
5%~95%（Non-Condensing） |
|
Environmental Light |
Normal indoor light source |
|
Fall |
Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly) |
·Provide User Manual
You can download the GM803 Serial user manual from this website link:
https://www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0
Operation video on Youtube: https://youtu.be/dsYZHYoca00
