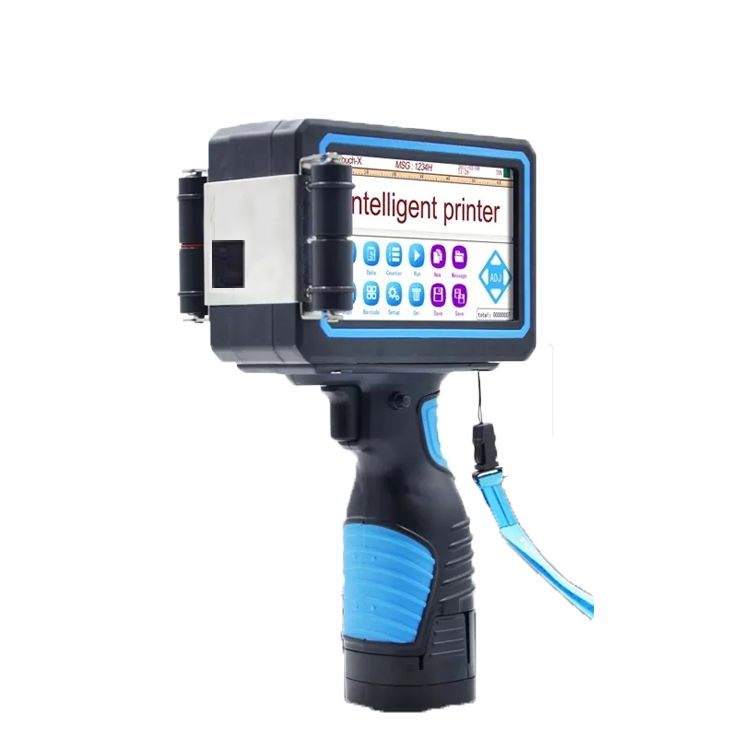

EQUIPMENT PARAMETERS: Model TCX1PLUS

machine size 130mm * 128mm * 200mm

nozzle 1 inch nozzle

printing height 25.4 mm

flow sequence number 1-8 variable sequence number

printing distance 2mm-10mm (distance from the nozzle to the object being sprayed)2mm-5mm printing better

printing bar code, two-dimensional Bar Code Communication Interface USB, rS232

processor quad-core processor, home screen up to 1.4 Ghz

automatic printing date, time, batch number, frequency and stream number (can change with the time of Day)

storage information system can store more than 1000 information (can plug in U Disk to save information can be transferred out at will)

use ink fast-drying environment-friendly ink, water-based ink, oil-based ink

ink color black, red, blue, yellow

ink cartridge capacity 42 cc (Th-x) , 45 cc (TH-Y)

machine weight 1 kg

system power consumption is less than 5 w

operating environment temperature 0 ° C ~ 38 ° C; Humidity 10% ~ 80%

printing speed 80m/min

language support multi-language

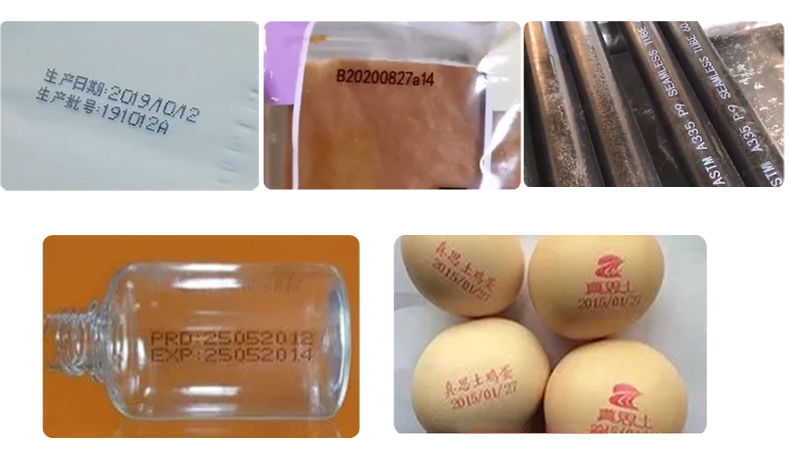

printing materials, woodworking Board, Carton, stone, MDF, Light Steel Keel, pipe, cable, metal, plastic, electronic devices, auto parts, stainless steel, food bags, aluminum foil and so on
