Inner Cone Insulated Bushings

Model:	#2
Brand:	OEM/ODM
Origin:	Made In China
Category:	Electronics & Electricity / Electric Parts & Materials
Label:	Inner Cone bushings , Plug-In Terminations , Bushings
Price:	US $50 / pc
Min. Order:	500 pc

Inquire Now Add to Basket

Member Information

Hangzhou Aofeng Electric Equipment Co., Ltd

Biz MemberZhe Jiang - China

Live Chat:

Last Online:29 Jan, 2023

Product Description

MV-CONNEX Bushing, up to 52 kV

For fitting in:
switching stations, circuit breaker units, high-voltage motors, condensers, connecting sleeves and other appliances.
insulating medium: SF6 gas or oil
max. operating temperature of insulating medium: 90℃.
Attention: With XLPE-insulated cable the max. temperature of the conductor must not be higher than 90℃.
Suitable for use in transformers.

Product Image

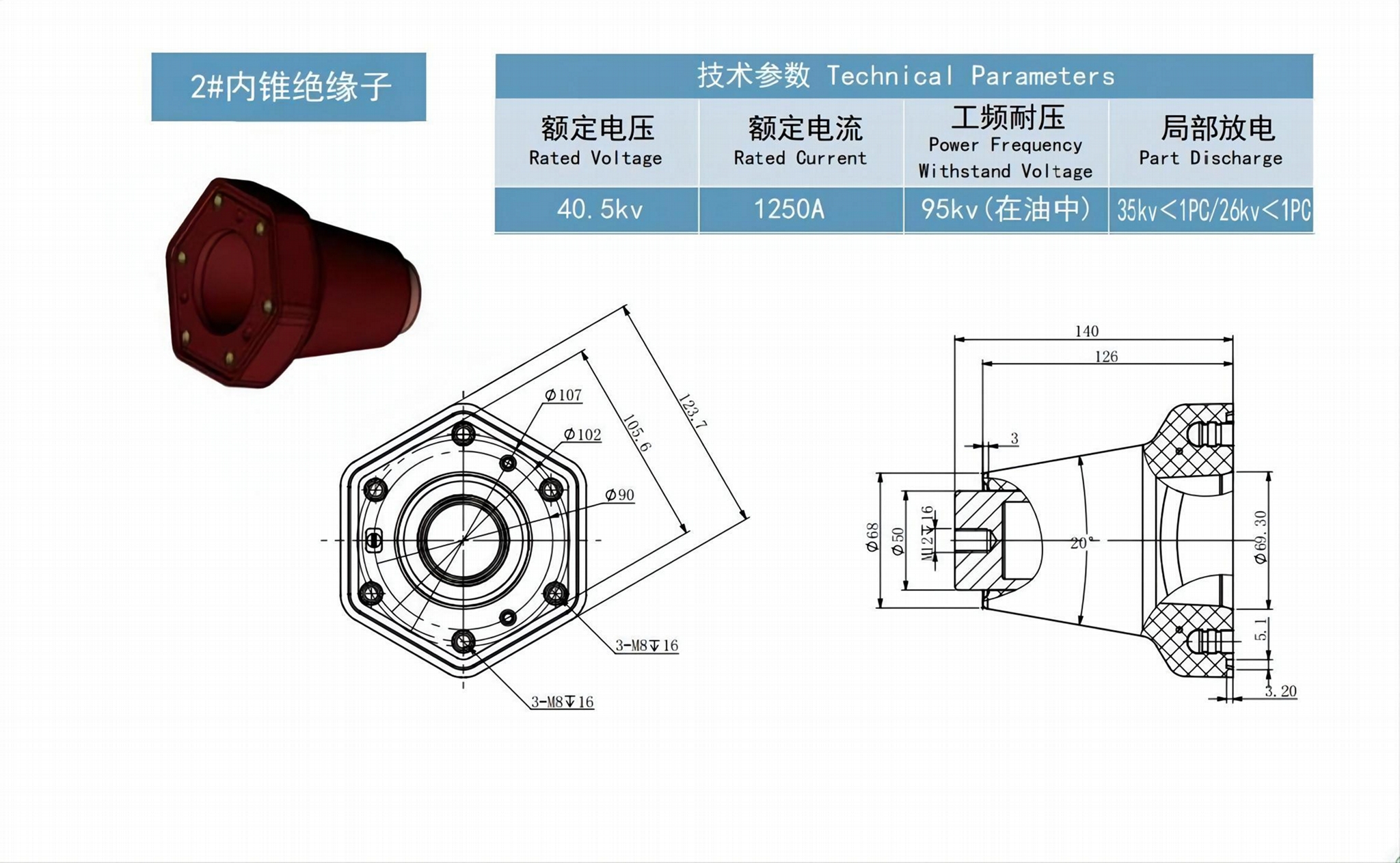

Img 1

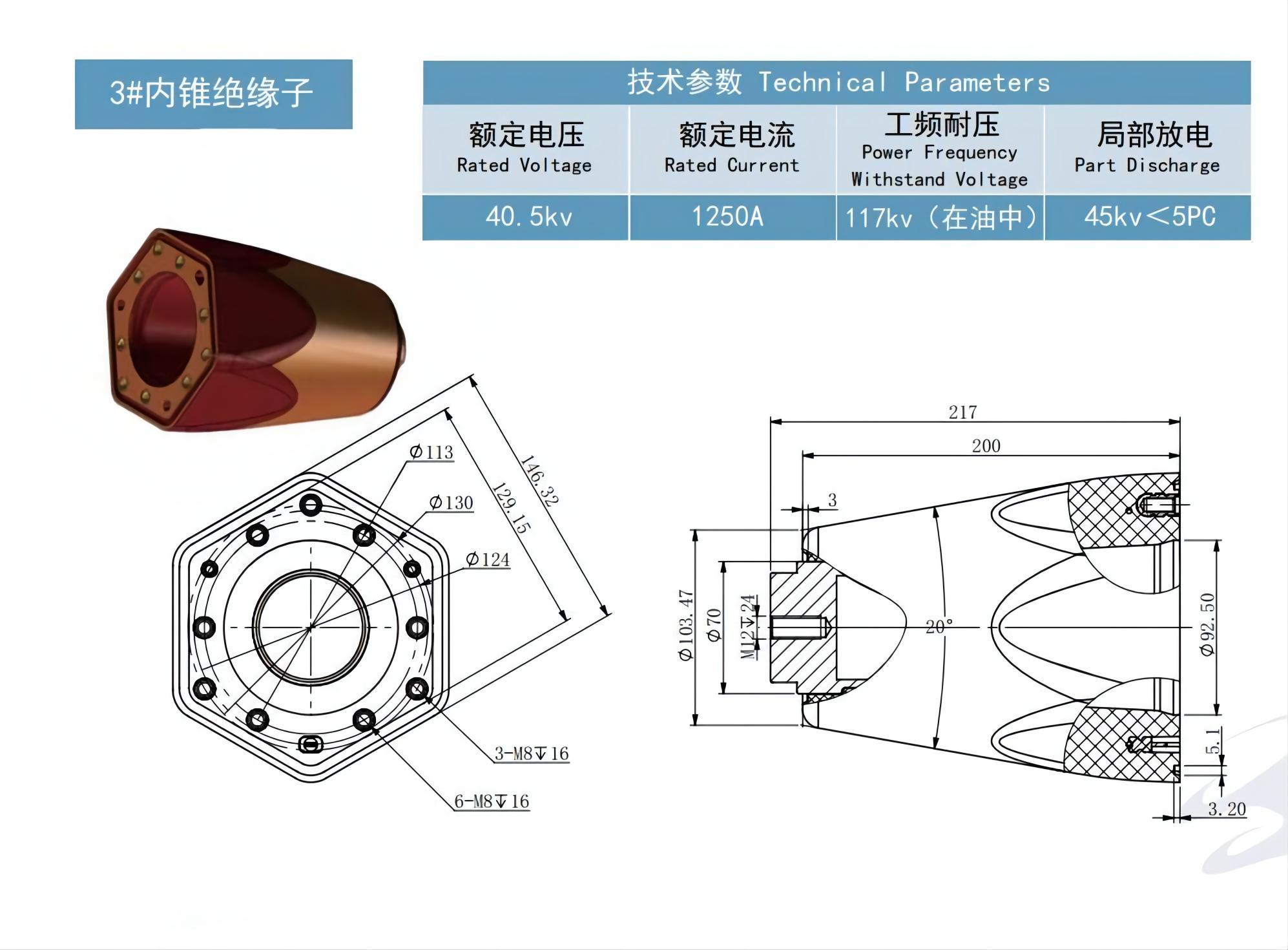

Img 2
