| Model: | HT001 |
|---|---|
| Brand: | Huatao |
| Origin: | Made In China |
| Category: | Industrial Supplies / Textile Machinery Parts |
| Label: | Corrugator belt , Double facer belt , woven corrugator bel |
| Price: |
US $100
/ sq meter
|
| Min. Order: | 1 sq meter |
| Live Chat: | Last Online:22 Jun, 2022 |
Huatao Group - Corrugator Belt & Spare Parts
Web: www.htwirebelt.com www(dot)htwirebelt.com
Email: maple@huataogroup.com maple(at)huataogroup.com
Tel: 0086 133 8311 0583
WhatsApp: 0086 133 8311 0583
Corrugator belts Inwoven Aramid Edge is a consistent development based on the proven woven high speed corrugator belt range. Also is ideal for corrugating systems with high production speed, even load systems and frequently changing paper widths.
Corrugator belts Inwoven Aramid Edge -Features
Suitable as top belt with high speed (above 150 m/min) production
Heat and super tear resistance
Inwoven Aramid edge to reinforce the belts, reduce wear substantially and ensure a long lifetime.
Particularly for frequent changes of board width
Mostly used for all Corrugating Production Lines.
Corrugator belts Inwoven Aramid Edge- Specification
|
Product |
Corrugator Belt Inwoven Aramid Edge |
|
Thickness |
8mm-10mm |
|
Width range |
1000mm - 3200mm |
|
Length |
80 meters |
|
Heat-resistance |
240℃ (the kevlar edge upto 350℃) |
|
Tensile strength |
70Mpa |
|
Coefficient of friction |
≥ 0.40µ |
|
Weight per unit |
(7.5±0.3)kg/㎡ |
|
Air-permeability 40mm water Column |
2.0m³/㎡ min |
|

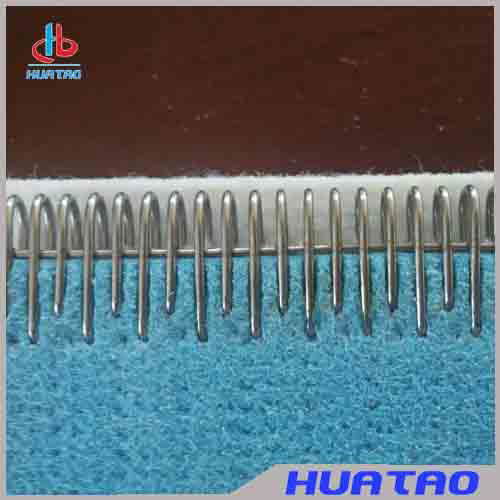

Seam |
Hot JAW lacing/Clipper with rubber coated |
|
Edge |
100mm or 200mm inwoven aramid edge reinforcement (kevlar) |
|
Suitable position |
Top belt |
|
Lifetime |
50-70 million meter |
|
Used on all corrugators high tearing resistance Long life time running High abrasion resistance Moisture absorption Heat resistance Low noise |
|
Corrugator Belts with Silicone Coating Technical Parameters
|
Product |
High Speed Corrugator Belt |
|
Thickness |
9mm |
|
Width range |
1400mm - 3200mm |
|
Length |
80 meters |
|
Heat-resistance |
240ºC (the kevlar edge upto 350ºC) |
|
Tensile strength |
70Mpa |
|
Coefficient of friction |
≥ 0.40µ |
|
Weight per unit |
(7.5±0.3)kg/m2 |
|
Air-permeability 40mm water Column |
2.0m³/m2/min |
|
Seam |
Hot JAW lacing/Clipper with rubber coated |
|
Edge |
100mm -400mm inwoven aramid edge reinforcement (kevlar) |
|
Suitable position |
Top belt,Bottom belt,Upper belt ,Lower belt |
