Two-color turntable flat screen printing machine

Model:LC一RS1000-2
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:screen printing mach , flat screen printer , turntable flat print
Price: US $27299 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Luen Cheong Printing Equipment Ltd

Biz MemberGuang Dong - China
Live Chat:
Last Online:29 Sep, 2022

Product Description

The machine with 3 Mitsubishi servo motors, use printing head up

and down use Festo cylinder, 2 LED UV drying system



Machine information:

  • Machine overview: two-color turntable flat screen printing machine
  • Action mode: Fully automatic mi-automatic
  • Start mode: touch screen +buttons
  • Printing up and down power: FESTO cylinder
  • Printing left and right power: Mitsubishi servo motor*2
  • Cutting module power: Mitsubishi  servo motor

Performance introduction:

  • Programmable Controllers
  • Automatic digital counter to count the printing quantity
  • Printing action design multiple printing cycles
  • Channel steel, Fangtong rice gold body, surface metal paint
  • The mesh arm can be fine-tuned front and rear, left and right, and multi-directional adjustment
  • The whole machine runs fast, stable and low noise
  •  Fast speed and simple operation
  •  Precision and stability
  • Simple conversion fixture
  •  Quickly adjust and change products
  • Wide range of applications
  • This machine is suitable for flat screen printing process

Features:

Printing speed 1000-1200 times/hour
Power supply  220V50HZ-60HZ/800W
Air pressure 0.5MPA
Maximum screen frame size 380X600MM
Maximum printing area 200X400MM
Maximum product height 0-100MM
Machine size Length 1650, width 1650MM, height 1700MM
table diameter 1500MM (8 position)




Product Image

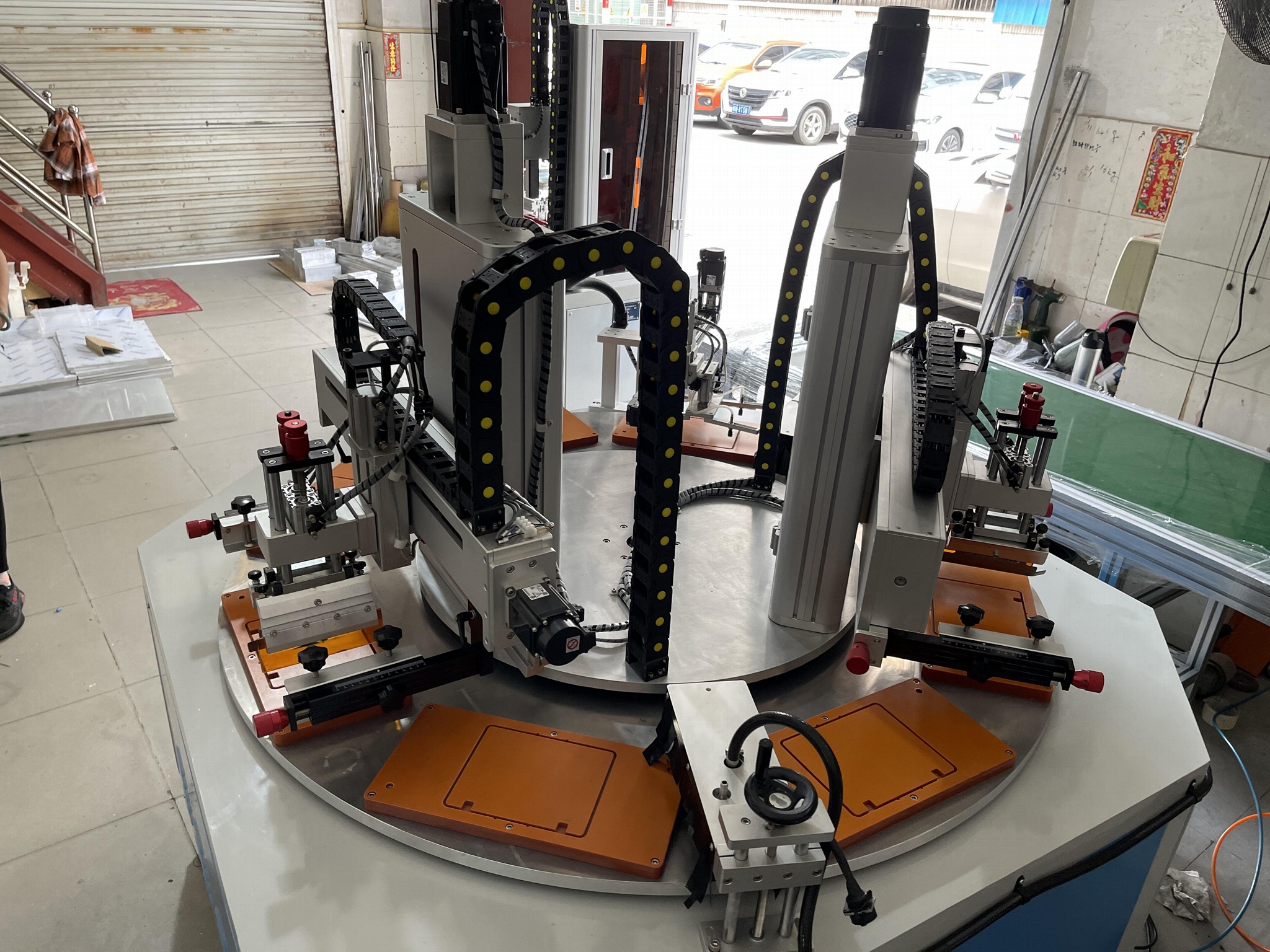

Two-color turntable flat screen printing machine 1
Img 1

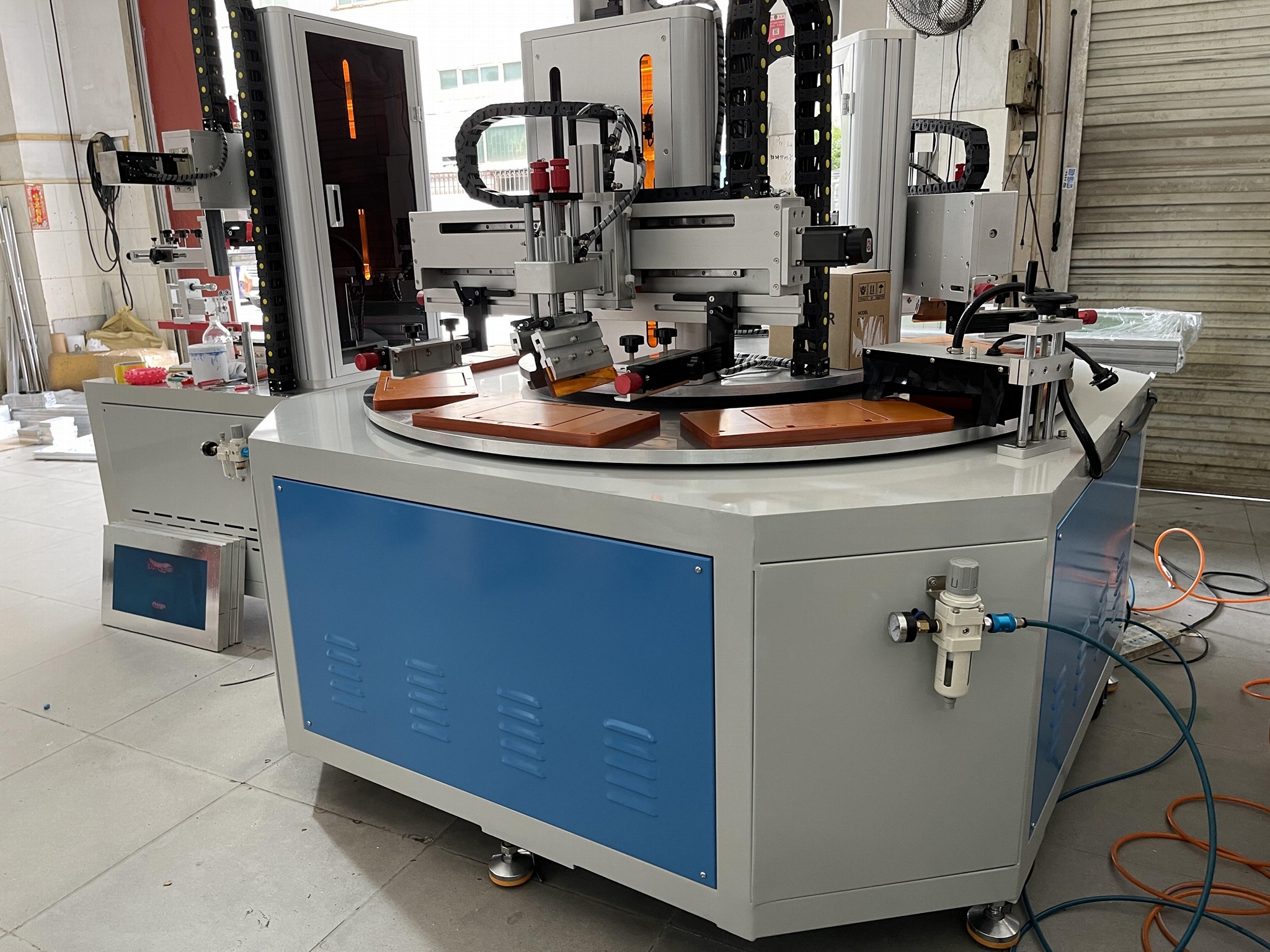

Two-color turntable flat screen printing machine 2
Img 2

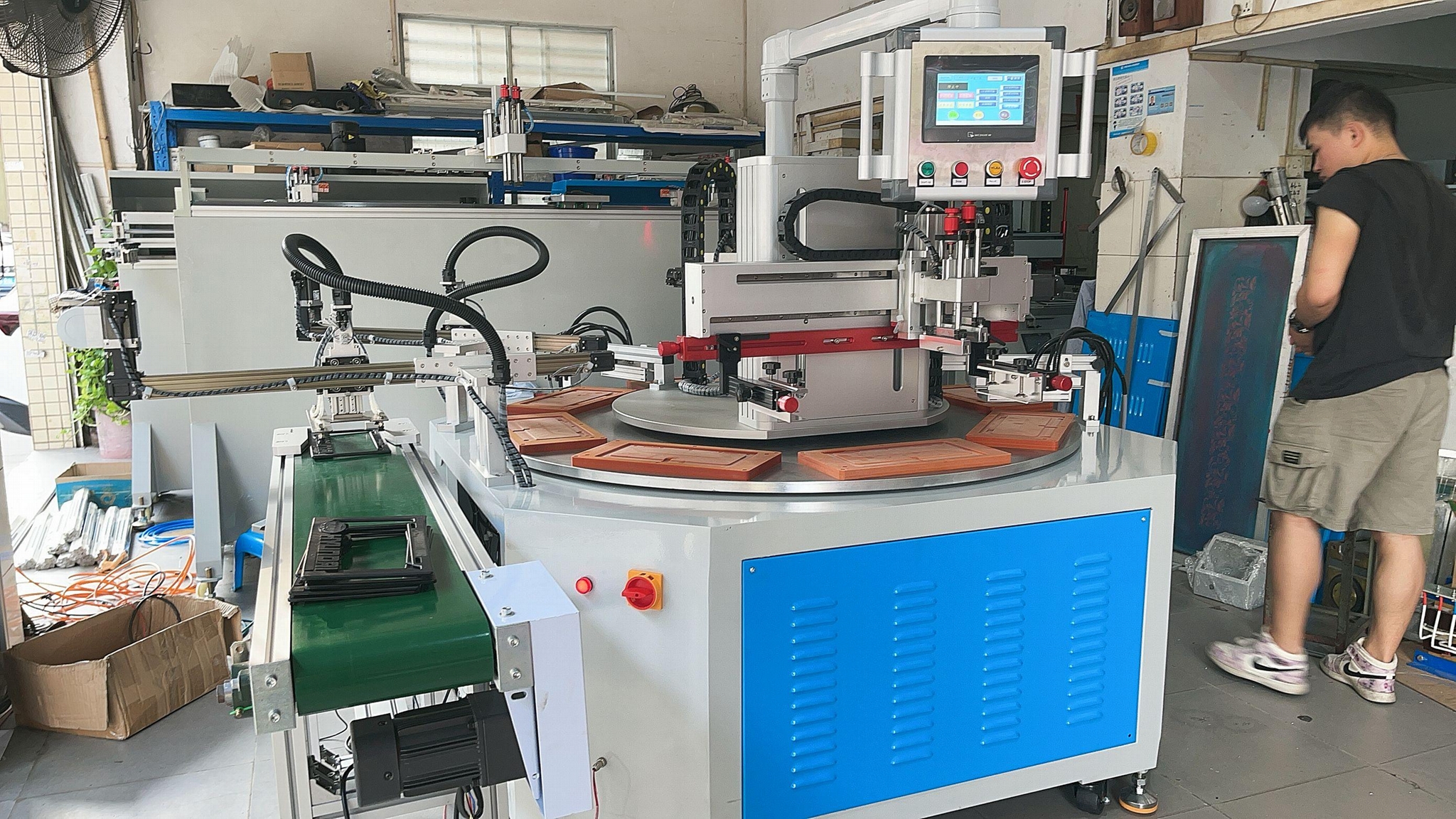

Two-color turntable flat screen printing machine 3
Img 3
Two-color turntable flat screen printing machine 4
Img 4
Two-color turntable flat screen printing machine 5
Img 5
