DEUZE Diffuse reflection Laser Line Sensor Measurement Displacement sensor
Product Description
Features
| Type |
Diffusive |
| Product dimensions |
50x60x20.4mm |
| Appearance design |
Square design |
| Light source |
Red laser(wavelength 655nm) |
| Close range(max.) |
0.9×1.5mm |
| Central position (max.) |
0.75×1.25mm |
| Long distance (max.) |
0.6×1.0mm |
| Detection distance |
65~105mm |
| Central position |
85mm |
| Full scale |
±20mm |
| Linear accuracy |
±0.1%F.S. |
| Reproducibility（Fast mode） |
15μm |
| Reproducibility（Other modes） |
10μm |
| Power supply |
18~24V DC |
| Internal power consumption |
Digital output/Voltage output：max.55mA(24V DC)，Current output：max.85mA(24V DC) |
| Digital output |
2 output，NPN/PNP open collector output，≤100mA/30V DC,residual voltage≤1.8V |
| Analog output |
Analog current 4~20mA、Analog voltage 0~10V |
| Communication output |
RS422 |
| Response time（Fast mode） |
max.5ms |
| Response time（Standard mode） |
max.12.5ms |
| Response time（High resolution mode） |
max.36.5ms |
| Response time（Sensitivity switching time） |
4ms max.
|
| Indicator |
Distance display：7 bar LED lights display，The output shows：ON state：orange Q1/Q2 indicator (orange) is on |
| Ambient temperature |
-10~45℃ |
| Ambient humidity |
35~85%RH |
| Store humidity |
35~95%RH |
| Ambient light immunity |
Sunshine≤10000Lux，Incandescent lamp≤3000Lux |
| Vibration Resistance |
10~55HZ，double-amplitude 1.5mm, 2 hours in X, y and Z directions |
| Impact resistance |
50G(500m/s2) |
| Degree of protection |
IP67 |
| Laser class |
Class 2 |
| Material |
PBT(Housing)，PMMA(Lens) |
| Connection（Analog output） |
Cable：2m，6-core |

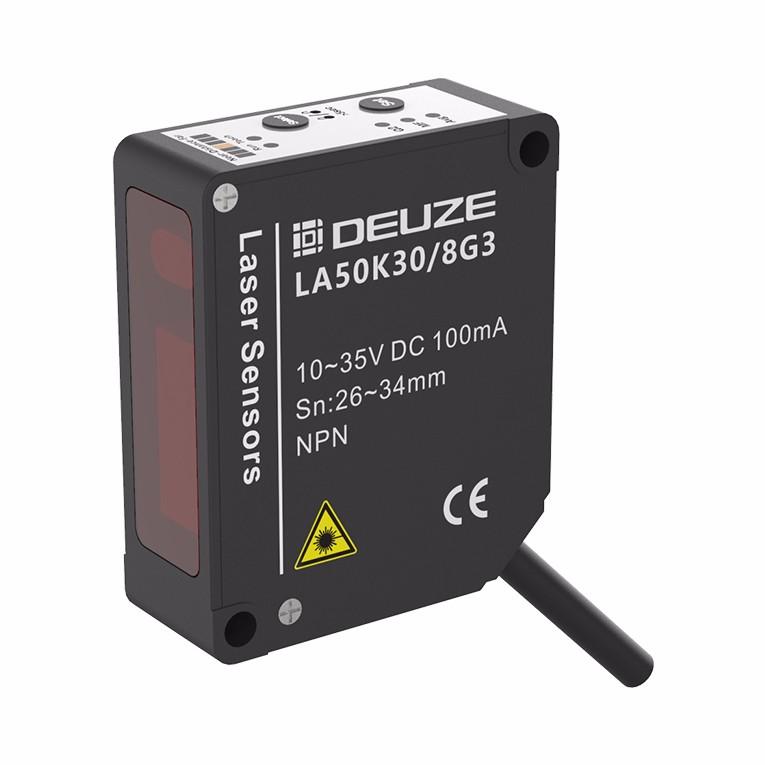

Product Image
Img 1
