| Model: | Wanlisp4-300K90 |
|---|---|
| Brand: | wanlisonic |
| Origin: | Made In China |
| Category: | Agriculture & Foods / Processed Food / Other Processed Food |
| Label: | food processing , ultrasonic machine , bakery machine |
| Price: |
US $25500
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:09 Jun, 2022 |
Zhangzhou Wanli Machinery Co., Ltd.
Excellent Quality, Excellent Price & Excellent Service
Tel: 0086-134-0097-9434 Email:wanlisales321@163.com Website:www.wlfoodmachinery.en.alibaba.com
Products Introduction

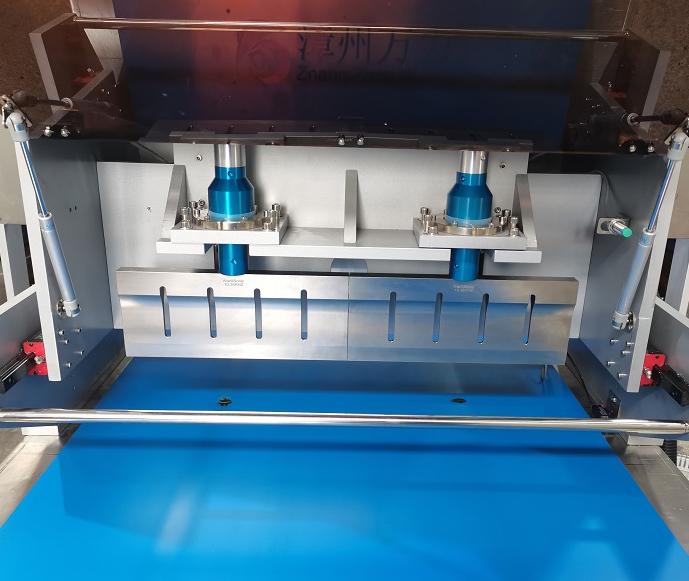

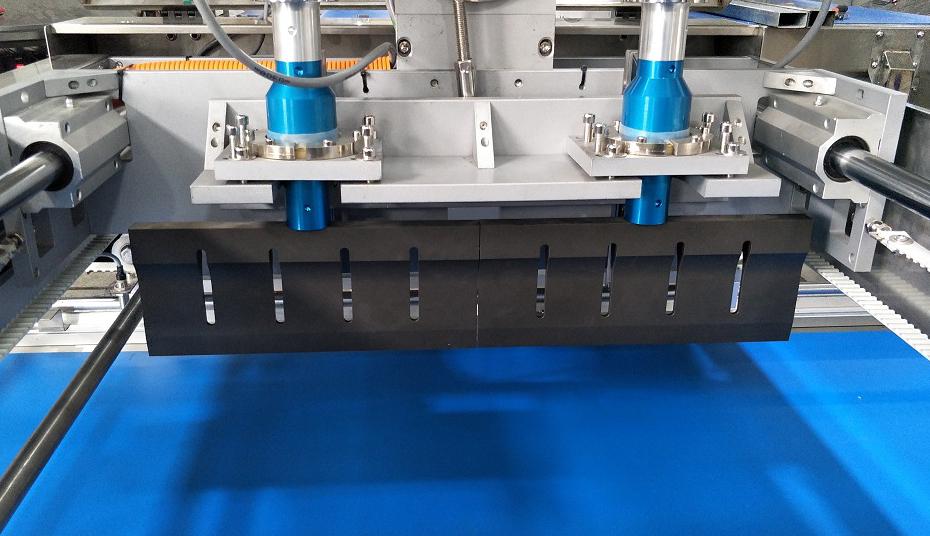

v Wanli ultrasonic cutting achieves no friction, no pressure cutting mode.
v It can cut sticky food such as cream jam smoothly and beautiful without sticking knife
v Automatic product positioning, Omni-directional cutting according to customer’s needs
v The cutting product can be automatically positioned and slitting according to the pre-entered parameters
Wanlisp4-300K900L3500
This is an ultrasonic cutting machine for food controlled by 5-axis servo motor system, can be linked to chain slat type tunnel oven, automatic belt convey and cutting products of 600x600mm, and it equipped with automatic paper removal function（optional）, and security system of security door, frequency ultrasonic scan and fault indicator lamp.
Standard Parameter
|
Model |
Wanlisp4-300K900L3500 |
|
Dimensions |
L3000*W1400*H1550mm |
|
Weight |
Net Wt. 550KGS, Gross Wt.600KGS |
|
Voltage |
220V, single |
|
Rated power |
8000W |
|
Frequency |
50Hz-60Hz |
|
Ultrasonic Frequency |
20000Hz |
|
Amplitude |
20%-40% -40%
|
|
Cross cutting speed |
20-60cuts/Minute; high-speed model:60-180cuts/Minute |
|
Slit cutting speed |
30-40cuts/Minute; high-speed model:40-100cuts/Minute |
|
Number of blades |
4 (optional) |
|
Blade materials |
Titanium Alloy |
|
Blade size |
300mm/pc (optional) |
|
Cut type |
Square, rectangular, slices |
|
Maximum cutting size |
400mmx600mm,food cutting height up to 80mm, blade up height:100mm |
|
Material of machine frame |
Stainless Steel |
|
Automatic belt convey |
Yes |
|
Convey speed |
0-3000mm |
|
Safety protection system |
Security door, frequency ultrasonic scan and fault indicator lamp |
|
Control System |
Five-axis Control System |
|
Cutting knife control system |
Servo motor |
Woking Video:Copy this address to open YouTube: https://youtu.be/Mp3bi6HeLvs
