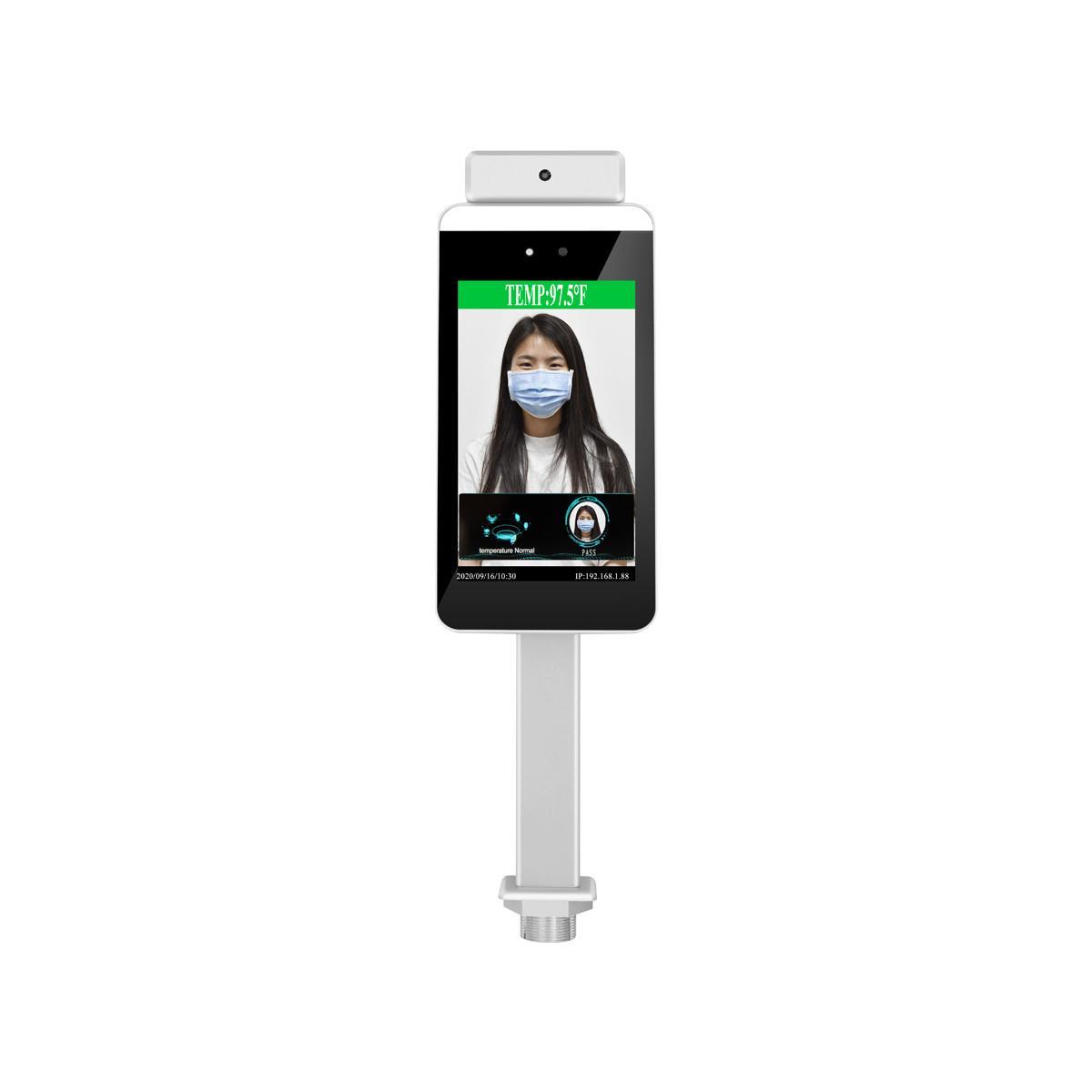

VK-20S-PRO Face Recognition Access Control Face Temperature Detection System Facial Recognition Thermometer

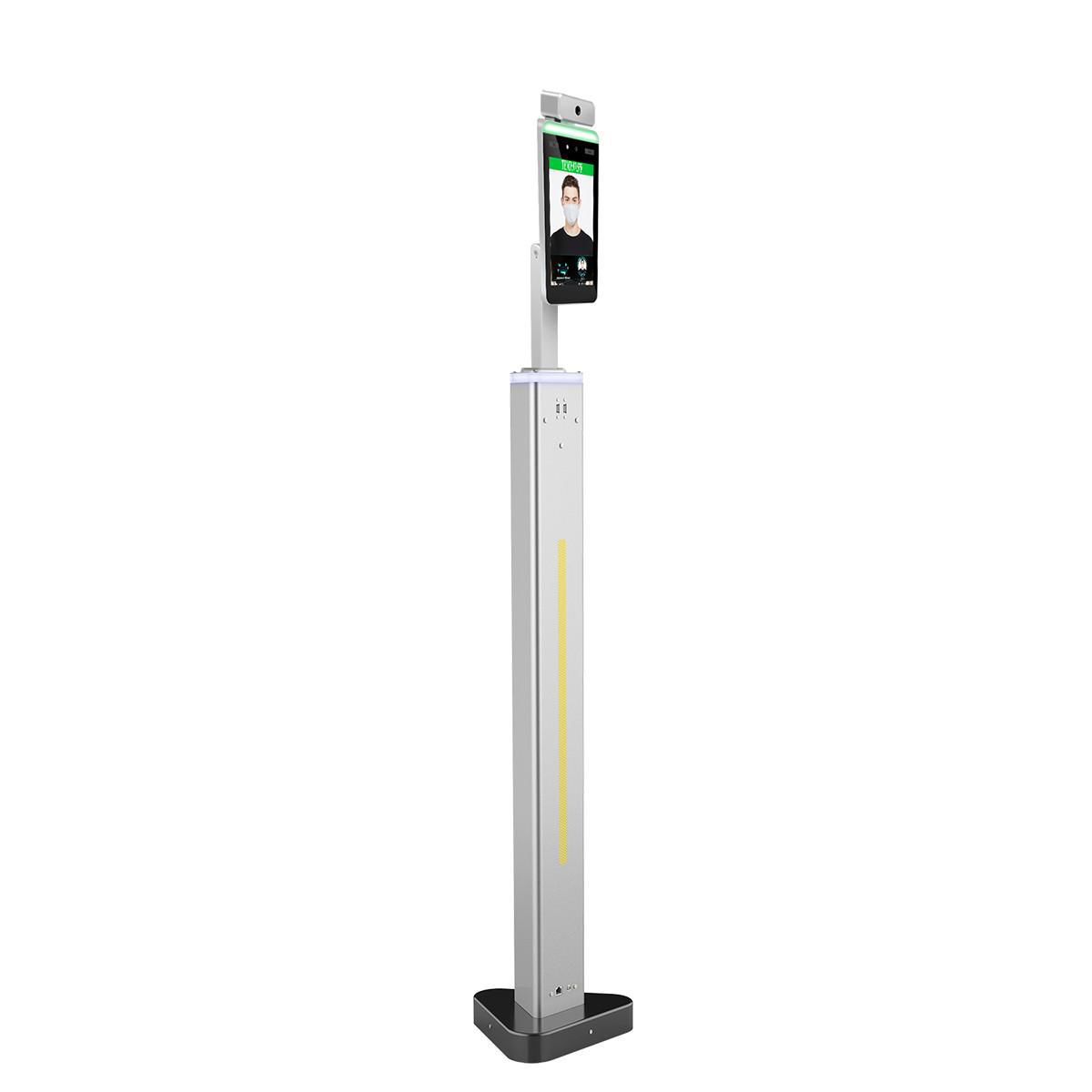

Non-Contact Face Recognition Temperature Measurement Automatic Infrared Body Temperature Thermal Scanner Kiosk Access Control System with Face Comparison Library (Stand with Automatic Hand Sanitizer Dispenser)
Facial Recognition Thermometer with automatic hand sanitizer dispenser, auto dispense of Sanitizer with hand motion, while measuring the forehead temperature,brush human face and perform high-precision infrared human temperature acquisition at the same time, recognition time <2s,Plug and play, directly connected to the power supply can measure body temperature.
Temperature measurement range 86-113℉（30-45 ℃）Accuracy ± 32.5℉ (0.3 ℃)，High temperature alarm value can be set, Supports centigrade or Fahrenheit, Default Fahrenheit, Support mid-range temperature measurement and real-time warning of high Temperature.
7-inch IPS 1080P HD display ,support access control system.This automatic forehead temperature scanner station supports IE browser settings and computer client management software.we support 2 years warranty for quality-related issues and we will directly replace your new equipment for free,any help, please feel free to contact our lifelong technical support team.
Face Recognition Terminal Support 22400 faces database and 100000 records,Support electronic voice broadcast (normal human body temperature or super high alarm, face recognition verification results, Warning if not wearing a mask)
Available languages:English, Spanish, Brazilian Portuguese, French, Italian, German, Japanese, Korean, and Russian...
Specifications of VIKYLIN Face Recognition Access Control
|
Hardware |
|
|
Chipset |
Hi3516DV300 |
|
System |
Linux operation system |
|
RAM |
16G EMMC |
|
Image sensor |
1/2.7" CMOS |
|
Lens |
4.5mm/ 0.18in |
|
Camera Parameters |
|
|
Camera |
Binocular camera supports live detection |
|
Effective pixel |
2Mega pixel，1920*1080 |
|
Min. lux |
Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 |
|
SNR |
≥50db(AGC OFF) |
|
WDR |
≥80db |
|
Face Recognition |
|
|
Height |
1.2-2.2 M / 3.2-7.9ft, angle adjustable |
|
Distance |
0.5-3 Meters /1.6-9.8ft |
|
View angle |
Vertical ±30 degree |
|
Reco. Time |
＜500ms |
|
Function |
Support 22400 faces database and 100000 records |
|
Temperature |
|
|
Range |
30-45（℃）/86℉ ～ +113℉ |
|
Accuracy |
±0.3（℃）/ 32.5℉ indoor 32.5℉ |
|
Best Distance |
≤0.5m / ≤1.6ft |
|
Response time |
＜300ms |
|
Interface |
|
|
Internet interface |
RJ45 10M/100M Ethernet |
|
Weigand port |
Support input/output 26 and 34 |
|
Alarm output |
1channel relay output |
|
USB port |
1USB port (Can be connected to ID identifier） |
|
General |
|
|
Power input |
DC 12V/3A |
|
Power consumption |
20W(MAX) |
|
Working temperature |
10℃ ～ +50℃ / 50℉ ～ +122℉ |
|
Humidity |
5～90%, no condense |
|
Dimension |
123.5(W) * 45.5(H) *266(L)mm |
|
Weight: |
11kg（include Mounting brackets ） |
|
Column Aperture |
27mm |
