Shuttle pad printer ( PM2-200TP)

Model:PM2-200TP
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Apparel & Fashion Machine
Label:pad printer , pad printing machine , pad press
Price: US $3844 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

LC industrial company Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:09 Nov, 2023

Product Description

Two colors pad printer with shuttle//Structure

Working table

Two stations Shuttle-type working table

Shuttle stroke

125mm

Ink supply system

Closed -type system

Plate type and size

10mm Thick steel plate.

Pad dropping control

Simple-cylinder , simultaneously  pressing

Ink drying

Heat air

Two colors pad printer//Usage and characters

Guide

  • Print both one color and two colors with shuttle worktable, Overprint is more precision.
  • With sealed cup to protect environment , VOC volatilization reduced 86% and save ink over 25%.
  • With coin aluminum structure ensure more stabilization and long life.
  • Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate;
  • Both thick steel plates and thin steel plates installed , Choose according to customer requirements.
  • Can print almost small size objects . So sold very nice in the world.
  • Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
  • Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
  • One of china famous brand pad printer.
  • Shuttle stroke: 125mm.

Application fields

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

Two colors pad printer with shuttle//Parameter

Technical parameters

PM2-100TP

  • Max. plate size: 100×200 mm;
  • Max. worktable area: 125×200mm;
  • Cup diameter: Φ90mm;
  • Max. printing speed: 1000pcs/h;
  • Printable color :2;
  • Max printing area: 85×85mm.
  • Shuttle stroke: 125mm
PM2-150TP
  • Max. plate size: 100×250mm;
  • Max. worktable area: 125×200mm;
  • Cup diameter: Φ90mm;
  • Max. Printing speed: 900pcs/h;
  • Printable colors:2;
  • Max printing area: 85×130mm.
  • Shuttle stroke: 125mm
PM2-200TP
  • Max. plate size: 100×300mm
  • Max. worktable area: 125×200mm;
  • Cup diameter: 90mm;
  • Max. printing speed: 800pcs/h;
  • Printable colors:2;
  • Max printing area: 85×170mm.
  • Shuttle stroke: 125mm

Works supply

  • 110V-220VPower supply;
  • 5-7Bar Compress air;

Package list

  • Package size :0.95×0.6×1.46M;
  • Gross 145KG;
  • CBM: 0.8322CBM

H.S.Code

8443198000

Certicate

CE

Two colors pad printer with shuttle//Advantage

Function

  • Microcomputer program controlling operating technique ;
  • Streamline design ensure dexterous Appearance impressions;
  • Coin aluminum structure frame coated Gross-Green color paint;
  • Shuttle working table installed to get more precision overprint;
  • Independency pressure adjustment of pad press-printing and picking up ink;
  • Either testing or running mode to operate ;
  • Closed  cup to store and coating ink , save ink and protect environment
  • Automatism digital count function;
  • Double colors pad printing with drying through blowing hot air:
  • Ten grade printing speed setting, auto, semi-auto, testing operation mode setting;
  • Sealed cup driven by independent cylinder , ink remove clean
  • Automatic rubber pad clean device installed for rubber head ink clean.

Product Image

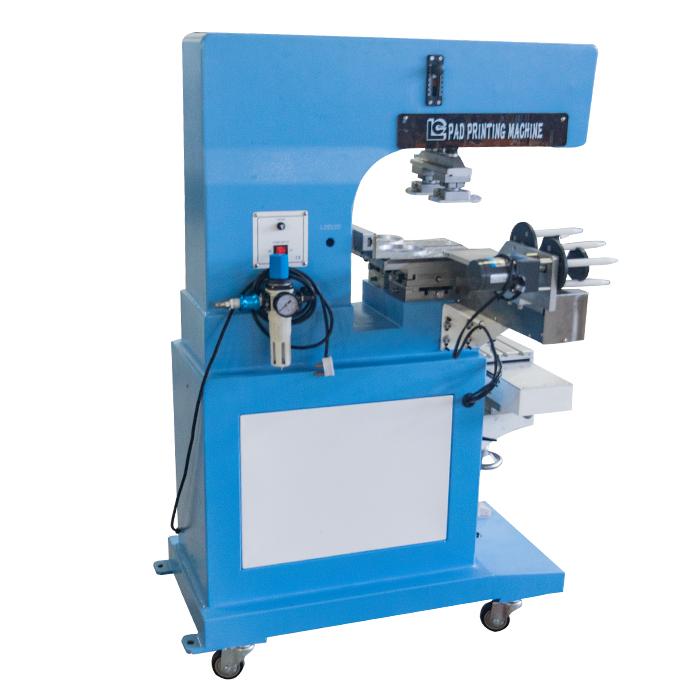

Shuttle pad printer ( PM2-200TP) 1
Img 1

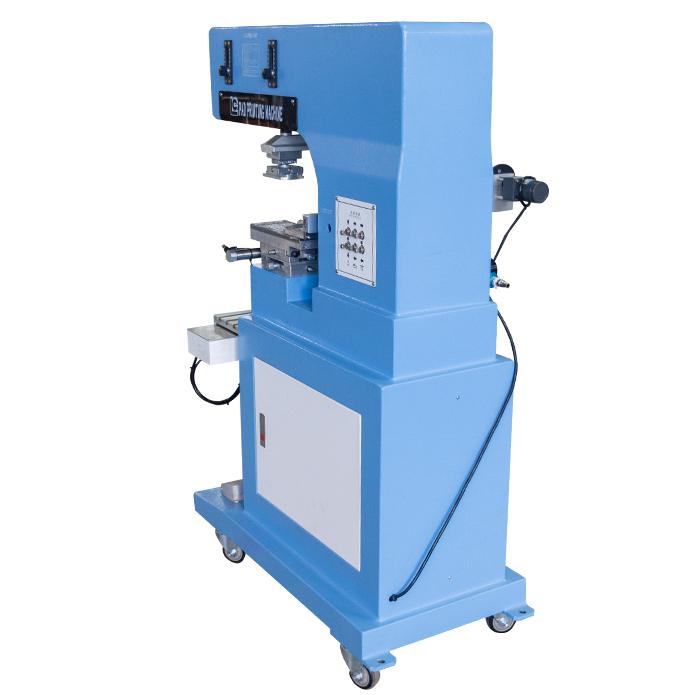

Shuttle pad printer ( PM2-200TP) 2
Img 2

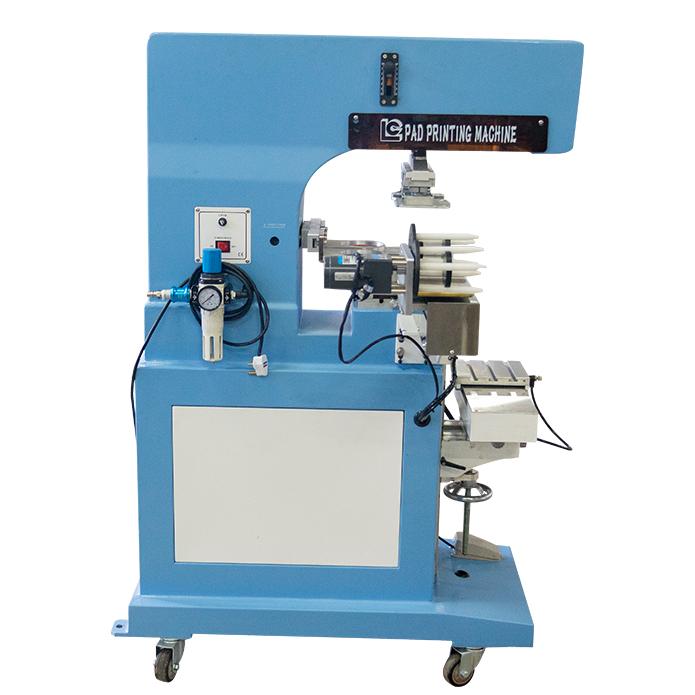

Shuttle pad printer ( PM2-200TP) 3
Img 3
Shuttle pad printer ( PM2-200TP) 4
Img 4
Shuttle pad printer ( PM2-200TP) 5
Img 5
Shuttle pad printer ( PM2-200TP) 6
Img 6
