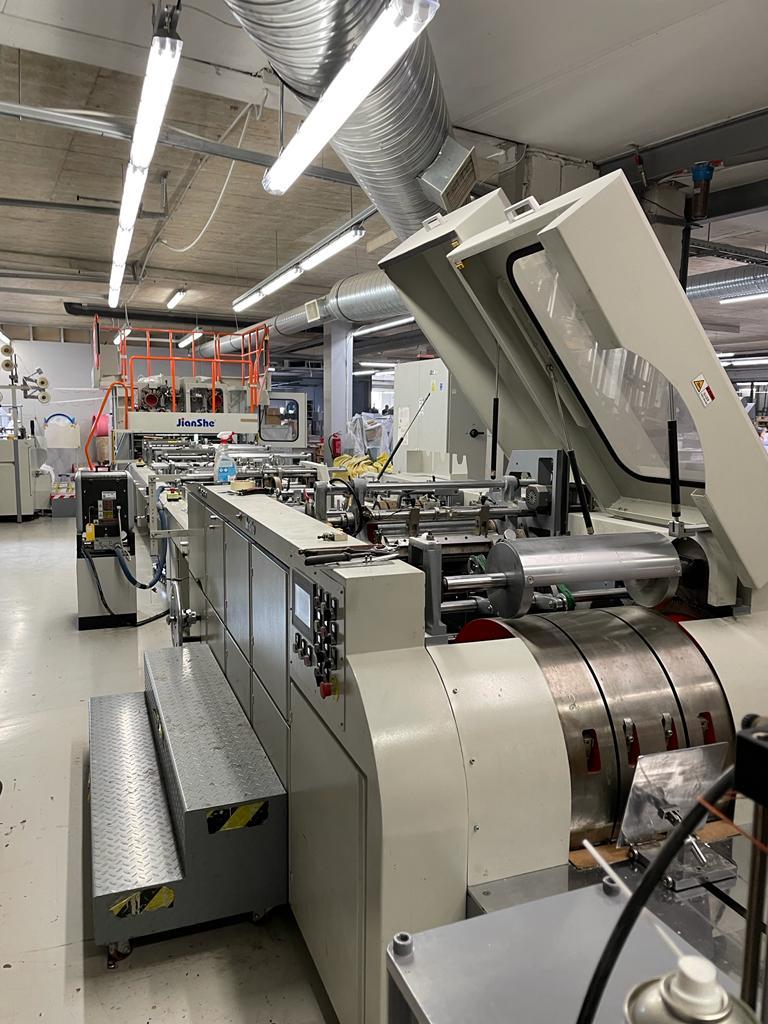

Sheet Fed SOS Bag Making Machine w/ Twisted Rope Handle

Sheet Fed SOS Bag Making Machine with Twisted Rope Handle

Mfgr : Jiangsu Fangbang Machinery Co., Ltd
Model : ZD-QFP 18
Type : Sheet Fed
Mfg year : 2017
Status : Under operation
Availability : TBA

Size range
Sheet Width : 830 – 1250 mm
Sheet Length : 340 – 630 mm
Basic Weight (gsm) : 100 – 220 gsm

Tube Width : 220 – 450 mm
Bottom Width : 70 – 170 mm
Tube Length : 250 – 480 mm
Top Fold : 40 – 80 mm
Note : Bag sizes are subject to be limited with combination.

Handle Patch Width : 40 – 50 mm
Handle Patch Length : 188.5 mm
Patch Paper Roll GSM : 100 – 250 gsm
Handle Rope Height : 170 – 185 mm
Handle Rope Ø : 4 – 8 mm Ø

Mech. Max Speed : 80 bags/min.
