Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook

Model: LC-ZP10
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:Hot Foil Stamping , notebook printer
Price: US $8980 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Luen Cheong Printing Equipment Ltd

Biz MemberGuang Dong - China
Live Chat:
Last Online:07 Dec, 2022

Product Description

Product features:

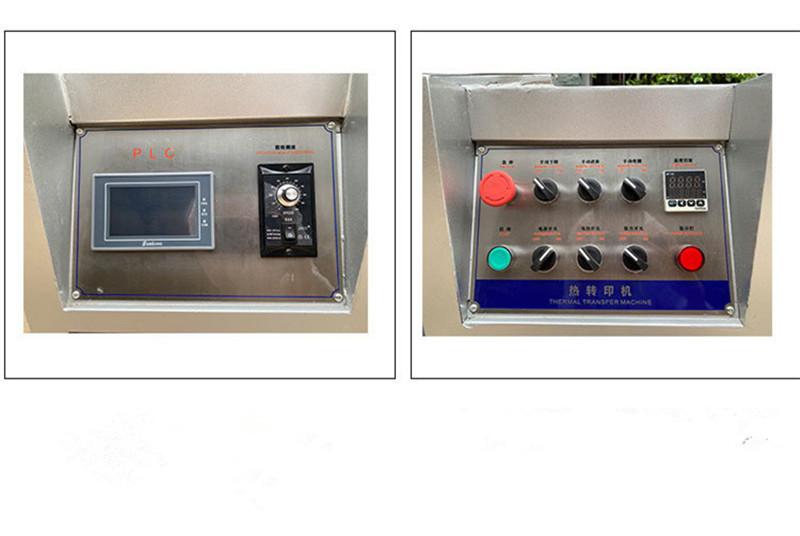

 Adopt imported PLC control system, automatic feeding, automatic material sorting, automatic hot stamping,automatic unloading; photoelectric automatic tracking monitoring, automatic shutdown when fault occurs; it has the advantages of digital control, easy operation and stable performance.

Advantage:

This hot stamping machine is fit for stamping on the surface of plane and round objects.With fast speed and low energy consumption. Mainly applied to the field of craft, fabric handbag, leather, glass, paper and plastic.

Mechanical model  LC-ZP10
Turntable size 700MM
Hot stamping head stroke 80MM (adjustable 50MM)
Hot stamping temperature room temperature 0℃~300℃
Rated voltage 220V,60/50HZ
Hot stamping pressure range 250-300KG
Heating power 2000W
Machine power 3800W
Air pressure 5-7bar

Function
1. With the crank design,which has powerful stamping pressure and little consumption of air pressure.
2. Worktable is adjustable in front-back,left-right direction and revolvable,which ensures the quick and safe operation.
3. Stamping pressure,temperature and time are adjustable.
4. Automatic foil feeding and rolling with adjustable function.
5. Height of the stamping head is adjustable.


Product Image

Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook 1
Img 1
Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook 2
Img 2
Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook 3
Img 3
Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook 4
Img 4
Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook 5
Img 5
Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook 6
Img 6
Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook 7
Img 7
Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook 8
Img 8
Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook 9
Img 9
Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook 10
Img 10
Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook 11
Img 11
Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook 12
Img 12
Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook 13
Img 13
Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook 14
Img 14
Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook 15
Img 15
Semi-automatic Rotary Hot Foil Stamping machine for A5 notebook 16
Img 16
