|Origin:||Made In China|
|Category:||Industrial Supplies / Plate Making & Printing Machine|
|Label:||beer bottle printer , auto screen printer , Silk Screen Printer|
|Min. Order:||1 pc|

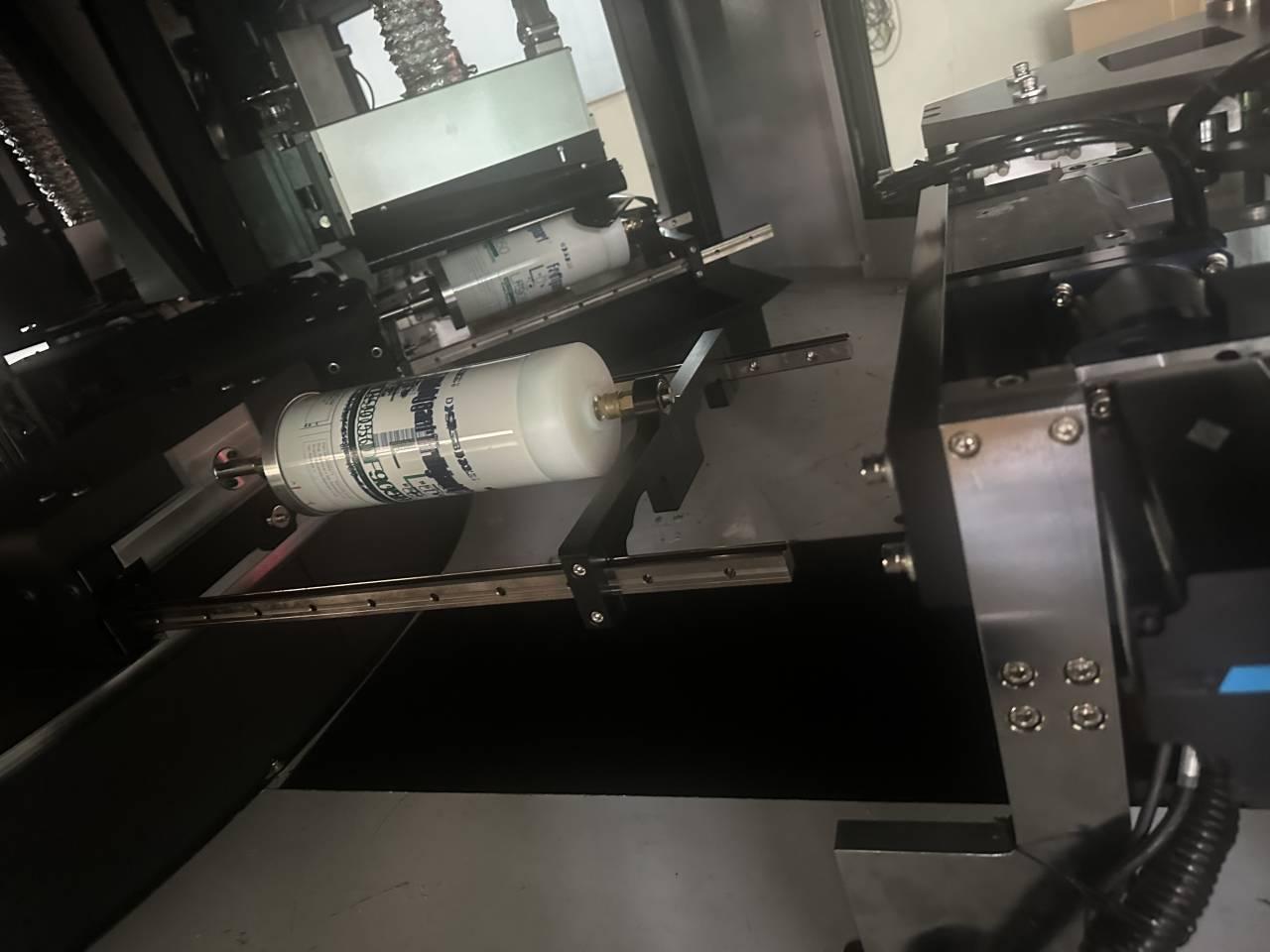

6 colors Full Automatic Glass Bottle Servo System UV
Screen Printing Machine With CCD positioning
1.Auto loading and unloading with multi axis servo robot.
3.Auto flame treatment before printing and UV LED curing after printing .
UV LED lamps and high-efficiency engines assure reduced energy consumption, Zero ozone emission and reduced CO2 production.
4.Auto printing system with all servo driven:printing heat ,mesh screen frame ,rotation etc.
all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)
5. Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen. it only takes 20 minutes to debug each color.
6.All ethercat servo motors with industrial PLC control&touch screen operation system,internet cable connection available,easy for fucture maintenance and ungrading.
7.Adopt linear high-speed precision CCD scanning : for cylindrical products without registration point, repeat print to be double colors.
8. Well built machine house with CE standard safety design.
9.Can use UV ink or thermoplastic ink.
2. Printing color:6color
3. Printing speed: 2700-3600pcs/hr
4.. Max Product size: round diameter 100mm, length 310mm
5. Applicable products: Round ,Square,Oval and other special shape glass plastic bottles,jars,cans ,cups.
6. Left and right stroke of scraper:355mm
7. Scraper, oil return knife up and down stroke:Cylinder control 20mm, adjustable screw stroke 50mm
8. Compressed air:5-6BAR
9. Power supply: 380V/50HZ
10. Total power: 31KW
