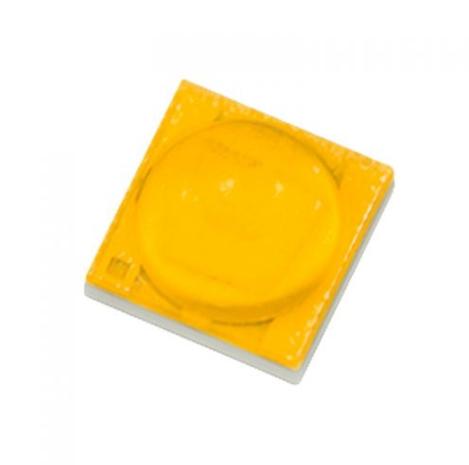

3W Flip Chip 3535 SMD LED White
Flip Chip White Color 3W 3535 SMD LED for Industrial Lighting
Surface Mount Technology 3535 package for cost-effective, compact high power LEDs with small size high flux density LED Diodes. The good raw material (silicon lens, ceramic base) enable the 3535 SMD LED with fast heat dissipation, low thermal resistance and high reliability.
Product Features
• High luminous efficacy
• Ceramic base with high heat conductivity
• Flip Chip Technology, no gold wire soldering
• Operating current 350-700mA, up to 1000mA
• >50000Hrs
• RoHS compliant
• Available in CRI70+, 80+, 90+
• W R G B Y A UV IR a variety of colors for choice
• Outdoor landscape lighting, stage lighting, smart lighting, etc
Product Specification
|
Color |
CCT (K) |
VF
|
IF
|
CRI |
Luminous Flux
|
Part Number |
|
Warm White |
2600-2900 |
2.8-3.4 |
700 |
80 |
220-240 |
MN-FC3535C273220B |
|
Warm White |
2900-3200 |
2.8-3.4 |
700 |
80 |
240-260 |
MN-FC3535C303240B |
|
Natural White |
3800-4200 |
2.8-3.4 |
700 |
70/80 |
260-280 |
MN-FC3535C403260A/B |
|
Pure White |
4800-5200 |
2.8-3.4 |
700 |
70/80 |
280-300 |
MN-FC3535C503280A/B |
|
Pure White |
5500-6000 |
2.8-3.4 |
700 |
70/80 |
280-300 |
MN-FC3535C573280A/B |
|
Cool White |
6000-6500 |
2.8-3.4 |
700 |
70/80 |
270-290 |
MN-FC3535C603270A/B |
