MIG/MAG/MMA/TIG NBC-270 inverter Welder machine

Model:NBC-270
Brand:Wincoo
Origin:Made In China
Category:Industrial Supplies / Machinery / Welding Machinery
Label: -
Price: US $420 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Wincoo Engineering Co.,Ltd

Free MemberJiang Su - China
Last Online:31 Mar, 2022

Product Description

WINCOO ENGINEERING CO.,LTD

We are engaged in providing inverter welding machine, such as MMA/SAMW welding machine, ARC welder, TIG/MMA2 in 1 welder , MMA,MIG,MAG,TIG 4 in 1 machine, Inverter plasma cutter welding machine, air compressor built-inside plasma cutter.Most of our products are got CCC, CE, EMC, SAA and UL, RoHS certificate.

1. Suitable for CS, SS
2. Cost saving and efficiency improving

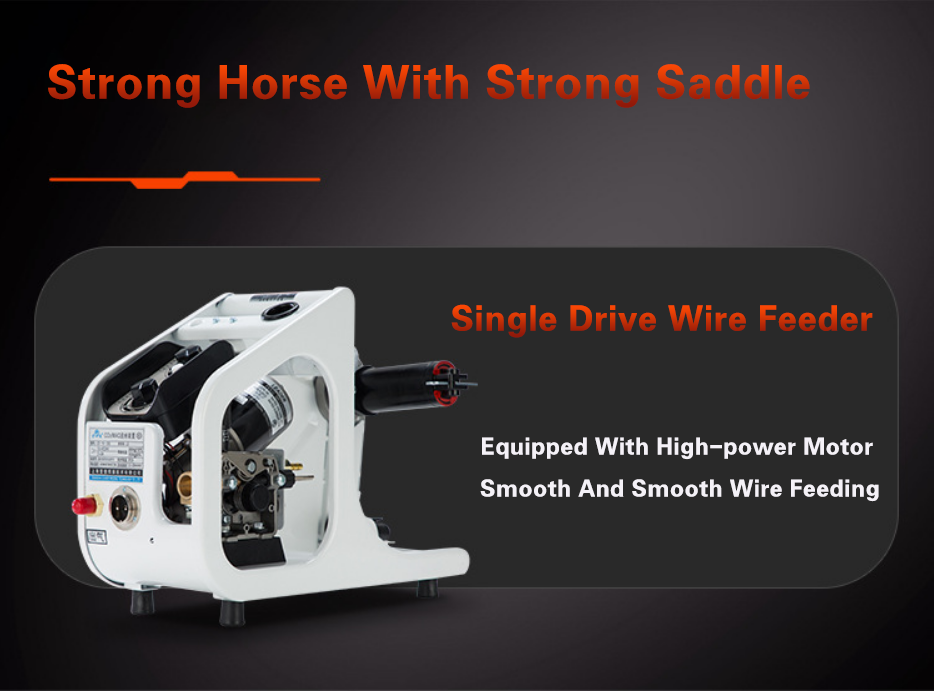

3. With wire feeding machine, and easy and considerable for operation
4. High welding speed, high arcing success rate
5. Continuous and discontinuous welding function
6. Automatic voltage pulsation compensation capability
7. Suitable for carbon steel, alloy steel, soft steel, etc, and various wire
8. Little spatter, uniform welding pool, good welding shape.

Model

NBC-270A

Rated input voltage(V)

220-380V+10%

Frequency(Hz)

50/60

Rated input capacity(KVA)

9

No-load voltage(V)

18-34

Output current range(A)

270

Duration rate(%)

35

Current range(A)

50-270

Rated output voltage(V)

16.5-26.5

Insulation class

F

Protection level

IP21S

Weight(kg)

25

Dimensions(W*D*H)(mm)

500*290*490

Package size(W*D*H)(mm)

600*330*510

All models of this type machine

Model

NBC-500A

NBC-350A

NBC-270A

Rated input voltage(V)

3-380V+10%

3-380V+10%

220-380V+10%

Frequency(Hz)

50/60

50/60

50/60

Rated input capacity(KVA)

27.3

13.2

9

No-load voltage(V)

21-52

19.5-40

18-34

Output current range(A)

500

350

270

Duration rate(%)

35

35

35

Current range(A)

50-500

50-350

50-270

Rated output voltage(V)

18-39

17-32

16.5-26.5

Insulation class

F

F

F

Protection level

IP21S

IP21S

IP21S

Weight(kg)

35

11.5

25

Dimensions(W*D*H)(mm)

580*330*620

540*290*520

500*290*490

Package size(W*D*H)(mm)

630*370*710

600*360*580

600*330*510

Company manufacturing center

Showroom

Welding station

Testing

Assembling

Loading testing

Loading test machine

Aging test

High and low temperature tester and multi test center

Finished product

Packing

Our company is located in Nanjing who was the ancient capital city of six different dynasties before. Now it is well-known cultural and tourist city in China. It needs only around 1 hour from Shanghai by High speed train.

We have three share joint factories located in Taizhou and Linyi. We supply different kinds of inverter welding machine such as MMA/ARC welder, MIG/MAG WELDER, TIG WELDER, Plasm cutting power source approved by CSA, CCC, CE and other certificates.

1.These welders can be from 100 Ampere to 1000 Ampere, from home DIY use to Industry use, from single function welding process to multifunction welding process, with reliable quality and favorable price. We deliver consistent quality from our ISO9001 certified manufacturing facilities for each client, each order.

2.In terms of productivity, taking an order of 10 thousand pieces of welders for example, we can finish manufacturing in 3 days.

3.We accept small orders, we cherish and appreciate any of your inquires. Each machine before delivery will be tested at least three times to ensure the quality.

4.We can provide 12 months warranty for whole machine, 18 months for the main board, full life technical support and after sale service.

5.We are able to provide online demonstration to show the performance before proceeding your procurement, online videos showing during production and packing, online technical support after sales.

WINCOO'S Culture to client is:To provide more favorable and reliable welders is WINCOO's unremitting pursuit of the goal.Win based on Cooperation is our business philosophy,Positive and Active response is our attitude,Consideration on behalf of client is our ethic and responsibility,Support client to succeed is our purpose,Mutual benefit is our win-cooperation expectation.To Wincoo ourselves is:Integrity, generosity, intelligence and inclusiveness are our characters. Foresight and pragmatism are our qualities. Loyalty, responsibility and ambition are our basic requirements. The secret of development is to beat expectations.Success is determined by these three factors: people, people and people.The absence of ethics negates everything. Integrity is essence. Communicate openly and frankly.United we triumph. Passionately begun, halfway done. Growth is a process of overcoming adversities.Be curious. Be grateful.Execution without any excuses.

We sincerely expect your inquiry, visit and inspection, and deeply hope to be your long time reliable partner in China.

1. Who are we?

We have 3 share joint factoys in China with total around 10000 square meters with more than 150 peoples.We provide MMA/ARC welder, MIG/MAG WELDER, TIG WELDER, air compressor built-in Plasma cutting power source.

2. What do we manufacturing?

We're mainly producing Inverter Welding Machine of MMA welders from 100 Amp to 500Amp (DIY or Industry purpose),TIG welders from 150Amp to 300Amp, (DC or AC/DC),MIG/MAG welders from 120Amp to 500A, (Gas or Gasless),Air Plasma Cutter from 40Amp to 120Amp, (Pilot or HF arc strike).

3. How can we guarantee the quality?

We can provide 12 months warranty for whole machine, 18 months for the main board, f. Meanwhile, we offer whole life on-line technical supports for operating guide and troubleshooting.

4. How to place order? I haven't done business with you guys before,how can i trust your company?

We are able to provide online demonstration to show the performance before proceeding your procurement, online videos showing during production and packing, online technical support after sales.You may place order online through alibaba, it is safe for your money.

5, How to inspect?

Weclome your third party or SGS or your friend to come an inspect before delivery.

5. Why choose us?

*OEM/ODM is available.

*Small order is acceptable, even 1 piece;

*Quick Delivery is available in 15 days;

*12 months machine warranty, 18 month main borad warranty, whole life technical support and after sale service;

*Has strong will of developing local agent or distribitors with your own brand;

*Provide online demonstration before order, online video during production and packing, video support after sales;

*Provide free cover design service(Your own brand).


Payment Terms:TT/LC/DP/DA

Product Image

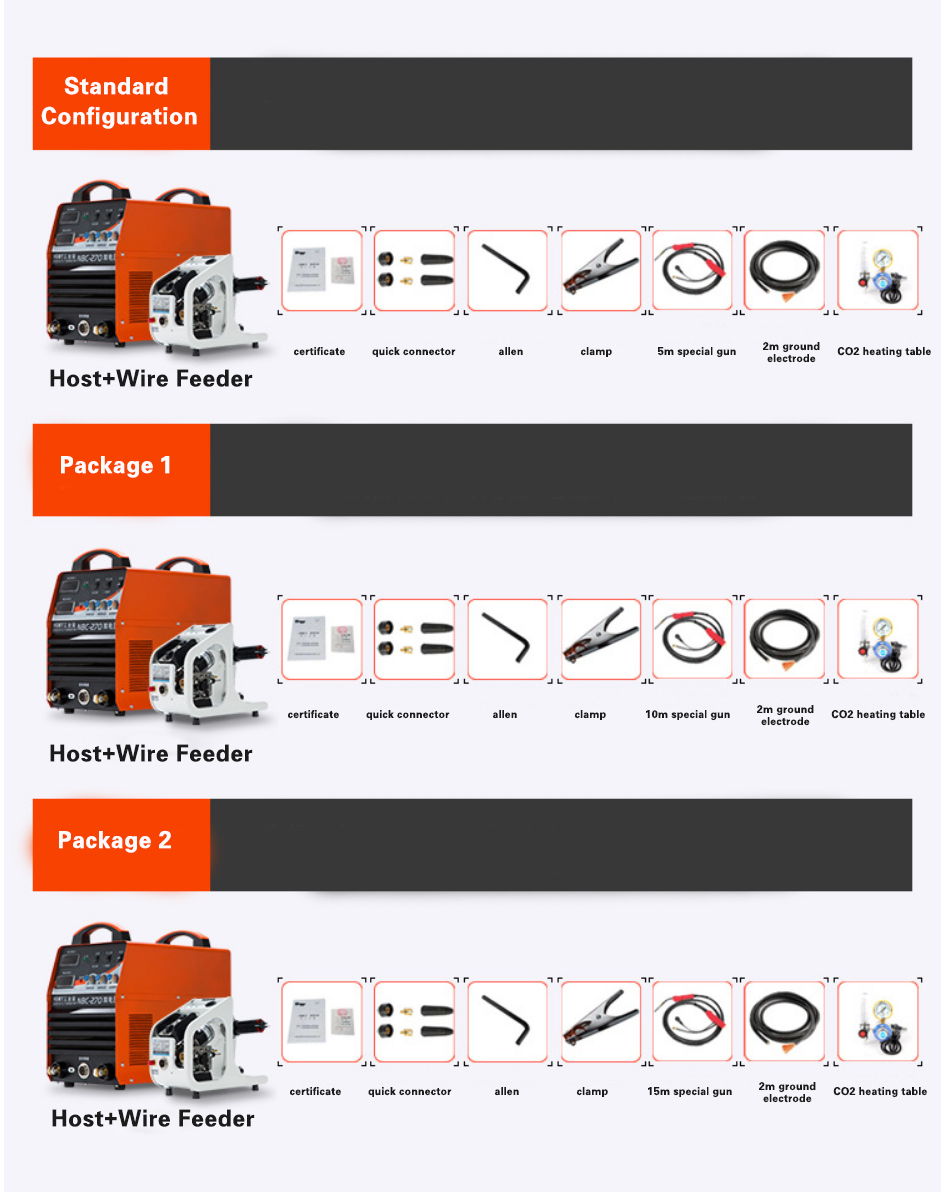

MIG/MAG/MMA/TIG NBC-270 inverter Welder machine 1
